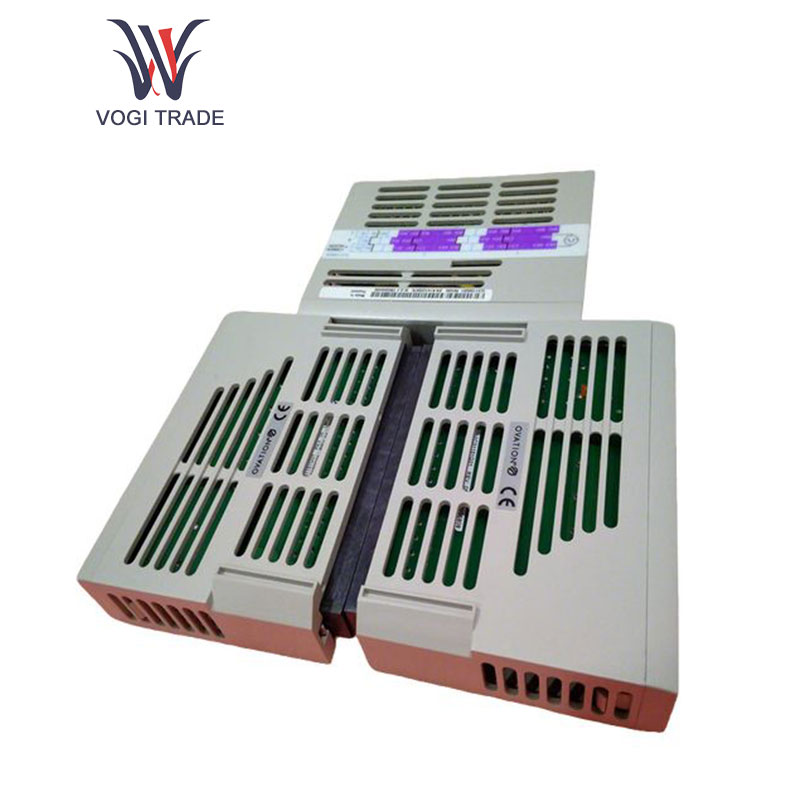

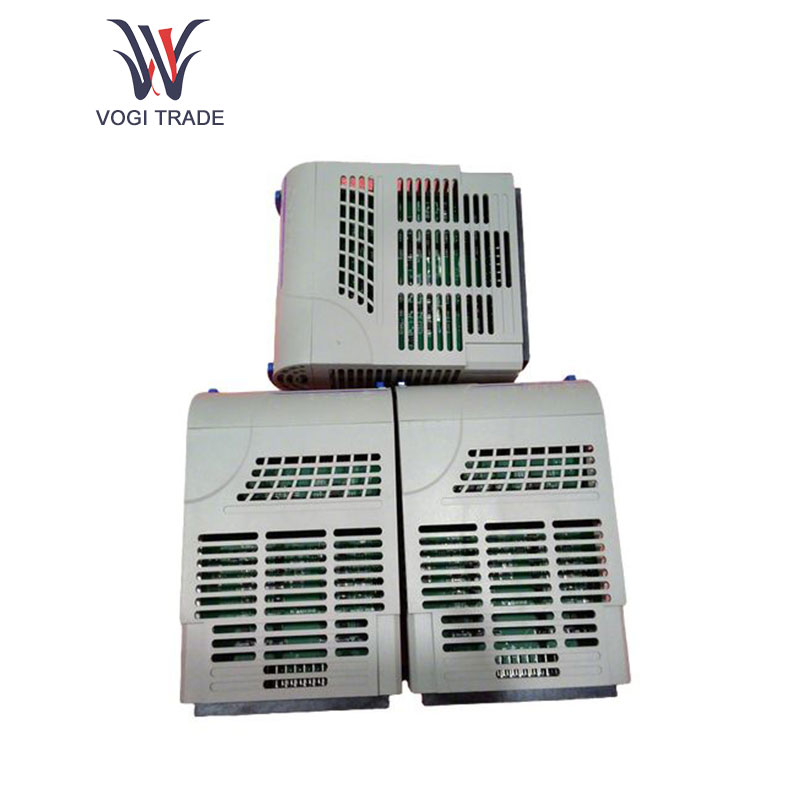

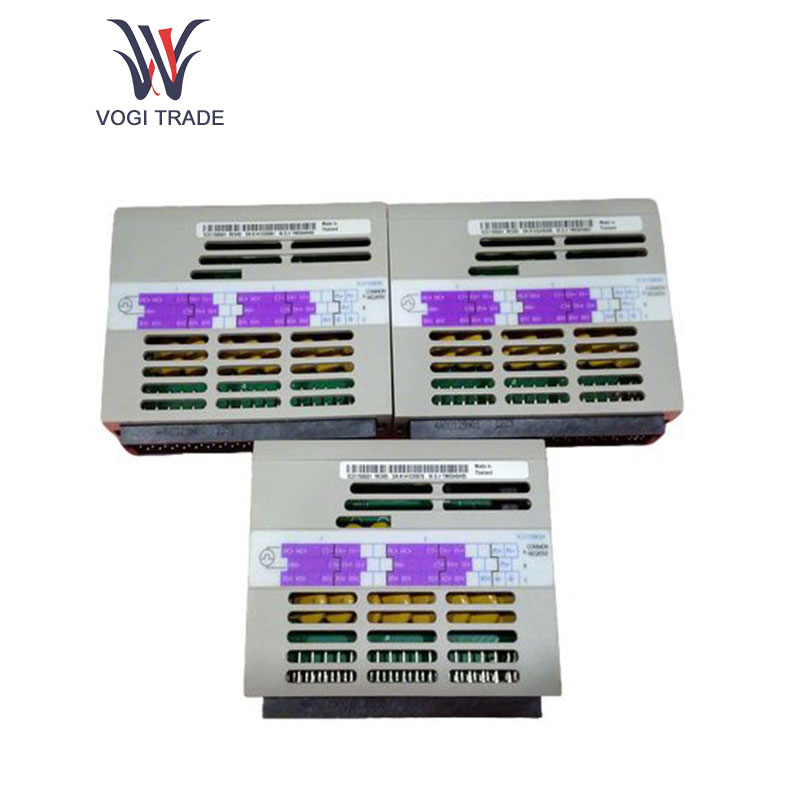

Westinghouse 1C31150G01

Details

Westinghouse 1C31150G01 is a pulse accumulator module. Westinghouse 1C31150G01 makes several calculations with the pulse data and converts the form according to pre-established algorithms and logic. Westinghouse 1C31150G01 gets the actual physical values. It compares, judges, and manages alarms.

Specification

Input channels: 16 pulse input channels.

Signal voltage range: 3V-24V.

Resolution: With a countable resolution up to 1 pulse, it has a very high pulse counting resolution.

Storage temperature range:-40℃-85℃5. Humidity range: from 5% to 95%.

Power supply requirements: the power supply for operation is normally DC 24V. Westinghouse 1C31150G01 also allows then for some fluctuations in power supply voltage.

Features

Wide response frequencies: Westinghouse 1C31150G01 can process a pulse frequency range of 0Hz to 10kHz. This allows it to accept a variety of input pulses of differing frequency. Low-frequency flow measurement signals, to high-frequency motor speed signals, are all collected accurately and processed. However, the frequency responds narrow; others provide the frequencies apply even when matched.

Simple and easy-to-use programming interface: The programming interface of Westinghouse 1C31150G01 is simple and intuitive and allows easier operations. Even users have not dug deep in programming can be fast to start with, configuration, and programming.

Types of input signal: Westinghouse 1C31150G01 supports various types of common pulse signal types like sine-wave pulses and square-wave pulses, and is backed by ease of connection to different types of sensors and equipments to express a strong adaptability.

Application

Energy fields:

1.Wind power generation: for monitoring shows the pulse signals of anemometers and wind vanes in wind turbines. The anemometer and wind vane feedback the changes in wind speed and direction through pulse signals. The Westinghouse 1C31150G01 collects, and processes these pulse signals, giving a basis for the yaw and power control of the wind turbine, so that the unit can adjust it direction according to wind and speed signals, thus optimizing the wind energy utilization acts to promote its Power Development.

Iron and steel metallurgical industry:

1.Iron ore transportation metering: In transporting raw materials, the flow metering of iron ore belt conveyors in the iron and steel industry is employed. The weighing sensor and speed sensors on the belt scale will generate pulse signals. The Westinghouse 1C31150G01, using electronic inputs for different pulse signals collected, instantaneously calculates the flow rate and cumulative delivery volume of iron ore and, in turn, renders precise real-time data for raw material supply for the iron ore blast furnace, thus assisting in propitious batching and production in the blast furnace and improving the efficiency and quality of iron ore.

2.Control of oxygen flow into the converter: Precise oxygen flow control is critical for steelmaking quality and cost control during converter steelmaking. The Westinghouse 1C31150G01 monitors and accumulates oxygen flow in real time through the pulse signal output by the flowmeter installed on the oxygen pipeline,providing correct oxygen flow data for the blowing control of the converter and ensuring stability of the steelmaking process, thus improving the quality of molten steel and production efficiency.

Water treatment industry

1. Combining the application of raw water treatment: Westinghouse 1C31150G01 is widely used to measure various water flows in urban water supply and sewage treatment systems. The Westinghouse 1C31150G01 collects and accumulates pulse signals produced by water meters or electromagnetic flowmeters in the water supply system to achieve accurate measurement of residential or industrial water consumption for charging a water fee and for incorrect water resource management. Furthermore, in the sewage treatment plant, the sewage flows can be monitored at the inlet and outlet, and data can also be provided to the control and operation management of sewage treatment.

2. The dosage control system in tracking the PPM concentration: In water treatment, various agents such as flocculants, disinfectants, etc., in accordance with water flow and water quality, need to be added in precise quantities. The Westinghouse 1C31150G01 monitors the amount of agent added by integrating the pulse signal output by the metering pump and automatically adjusts the amount of agent added according to the preset ratio and associated with water flow to ensure the best water treatment effect with minimum operating costs and agent consumption.
