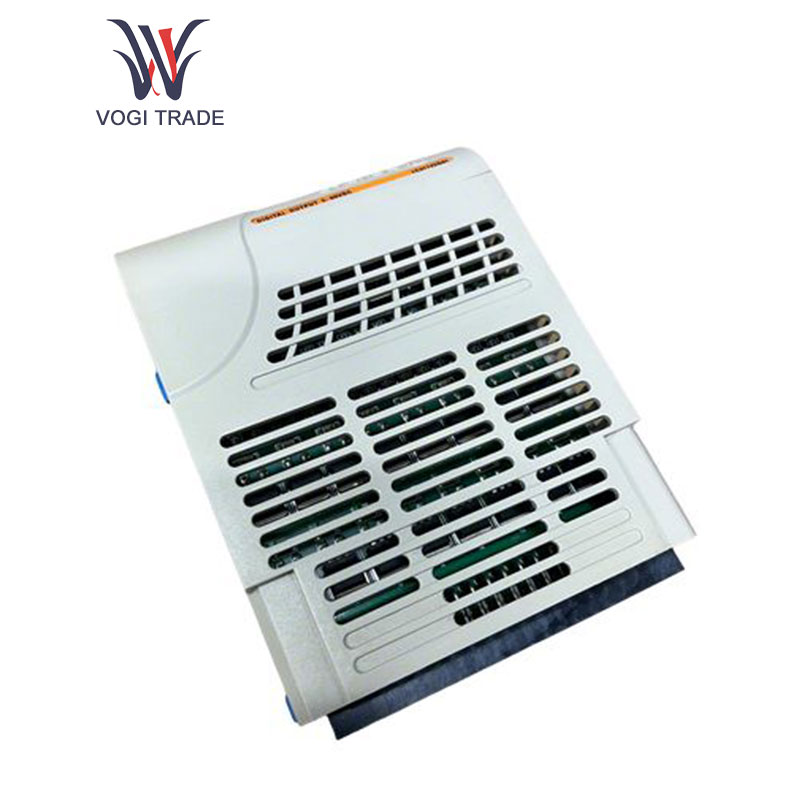

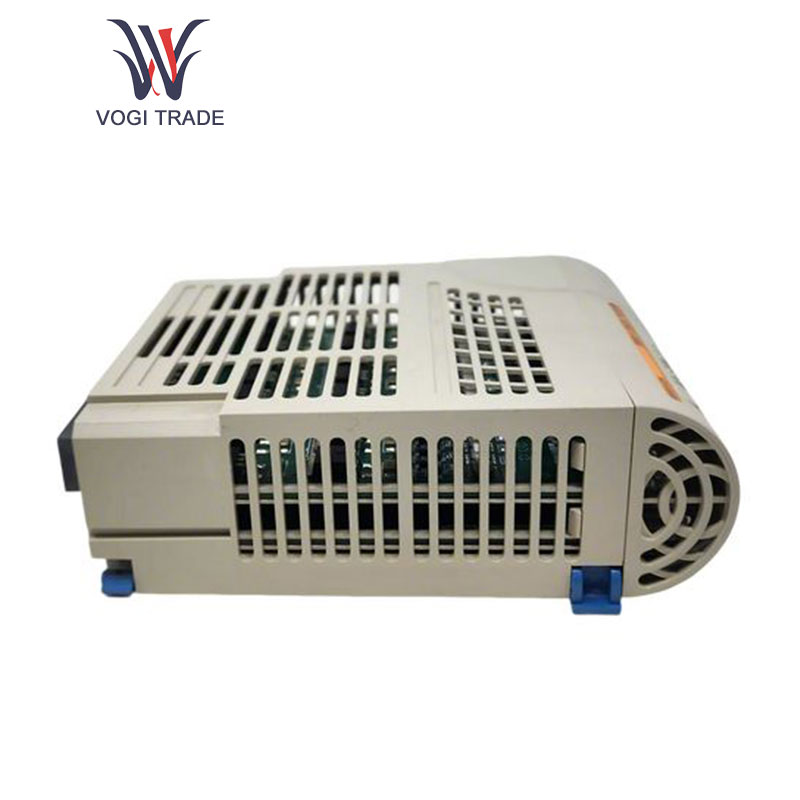

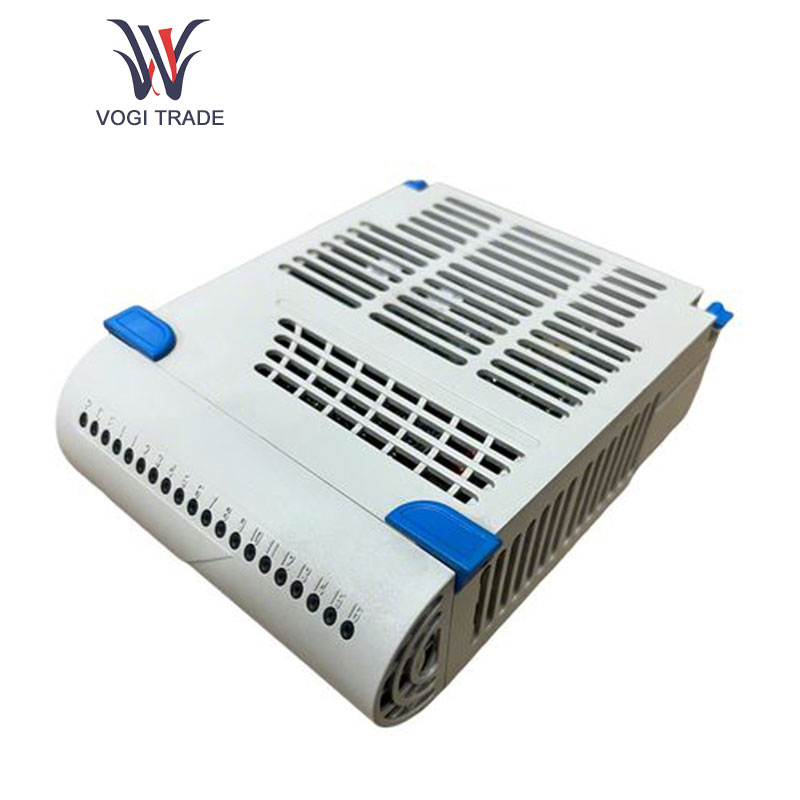

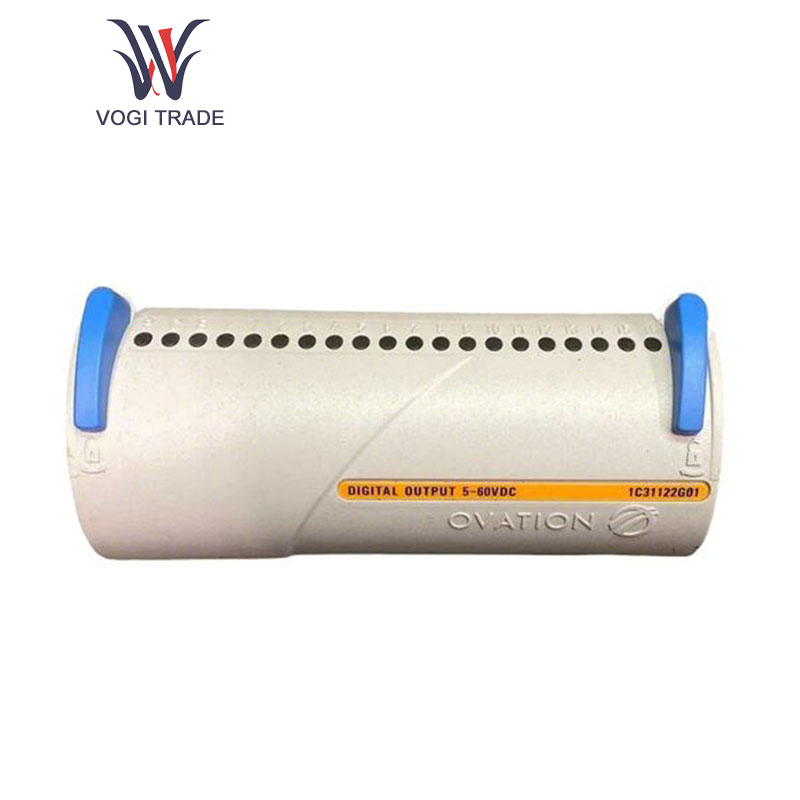

Westinghouse 1C31122G01

Details

The Westinghouse 1C31122G01 offers a wide range of setting options and programming functions. Users can flexibly configure the module's outputs, logical control relations, communication protocols, etc., according to specific application scenarios and control requirements.

Specification

Number of channels: 16 channels, which can control multiple devices at the same time and meet more complex industrial control needs.

Type Output: The digital output, which basically can allow high or low level signals in order to control the switch state of the digital devices.

Voltage: Output voltage ranges from 5 to 60 VDC and can adapt to various actuators, solenoid valves, relay contacts, and other devices with different operating voltages, providing them with the required drive voltage.

Signal transmission rate: The transmission speed of the Ethernet interface may be 100Mbps and above, very quickly sending the status of the output signal and the operational status of the module to the control system. This provides for real-time and fast responsiveness by the system and ensures that the demands for rapid data interaction in industrial automation production are met.

Features

Logic control and interlocking function: The Westinghouse 1C31122G01 is an advanced logic operation device, and users may configure different logical relations and interlocking conditions by programming according to normal operational needs. For an example, logically controlled sequential start-stop between multiple devices would be realizable, triggering.

Signal conditioning and conversion: Westinghouse 1C31122G01 does necessary conditioning and conversion on the input digital signal in order for them to fit the signal requirements of different classes of actuator and equipment. These may include conversion of a control signal to the required voltage or current, amplification of the signal, filtering of the signals, etc., aimed at enhancing the quality of the signal and driving ability so that the actuator can respond accurately to the control command and, thus, facilitate precise position control, speed control, etc.

Digital output control: As a digital output module, the Westinghouse 1C31122G01 is meant to convert the digital signal from the control system to given control outputs for driving various actuators, valves, motors, and other devices. In this way, using the ON and OFF control of the output channel realizes the startup, stop, forward and reverse working of the device in the production process thereby allowing accurate control of the production process and equipment operating status.

Application

Beverage industry

In the beverage filling machine, Westinghouse 1C31122G01 is responsible for the actuating and deactuating of the filling valve, properly regulates the amount of fill in each bottle. In food production lines involving baking, it controls the heating elements of the oven and conveyor belt speed, attaining good baking quality and production efficiency.

The automotive industry:

In the automated production line of automobile manufacture, Westinghouse 1C31122G01 is very widely used. In the automobile assembly workshop, Westinghouse 1C31122G01 operates various assembly tools, processes like start-stop and torque output of the electric tightening machine, to assure more than one assembly accuracy and quality of automobile parts. In the paint shop, it controls spray actions of the sprayer gun and opening and closing of the valve to achieve an even finishing of the car body.

Chemical industry:

In the chemical reaction stage, there are many cases, such as controlling various openings of valves, such as the raw material feed valve, in accordance with progress of reaction and control parameters when feeding the materials to dictate reaction efficacy. In the logical framework, when controlling various pipelines in the transport and storage of hazardous chemical production, Westinghouse 1C31122G01 is designed for shutting or opening the valves that guarantee cutting off the supply of particular materials in the case of emergency in order to prevent accidents from escalating.
