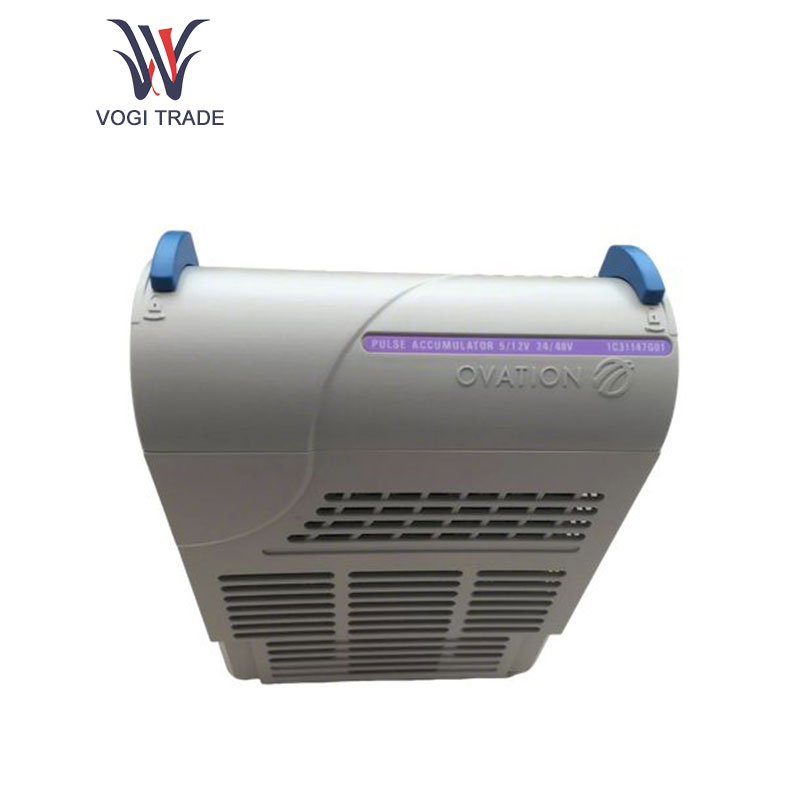

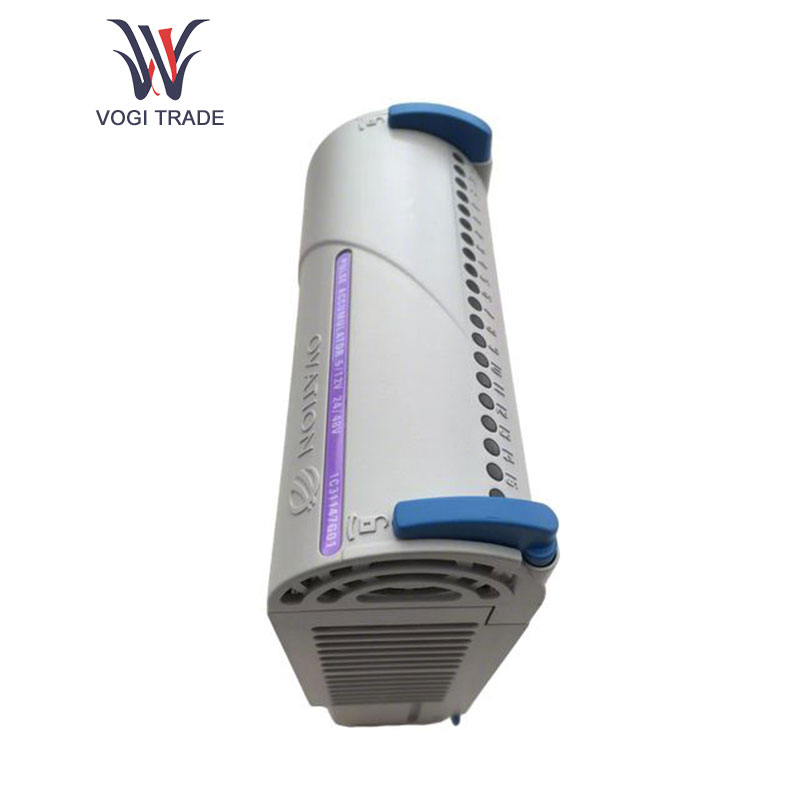

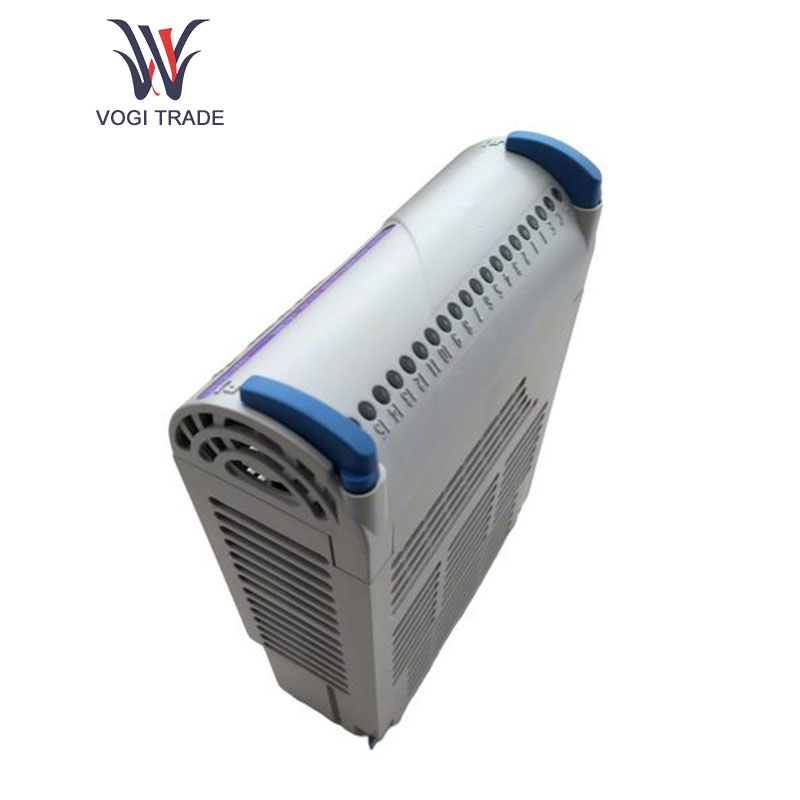

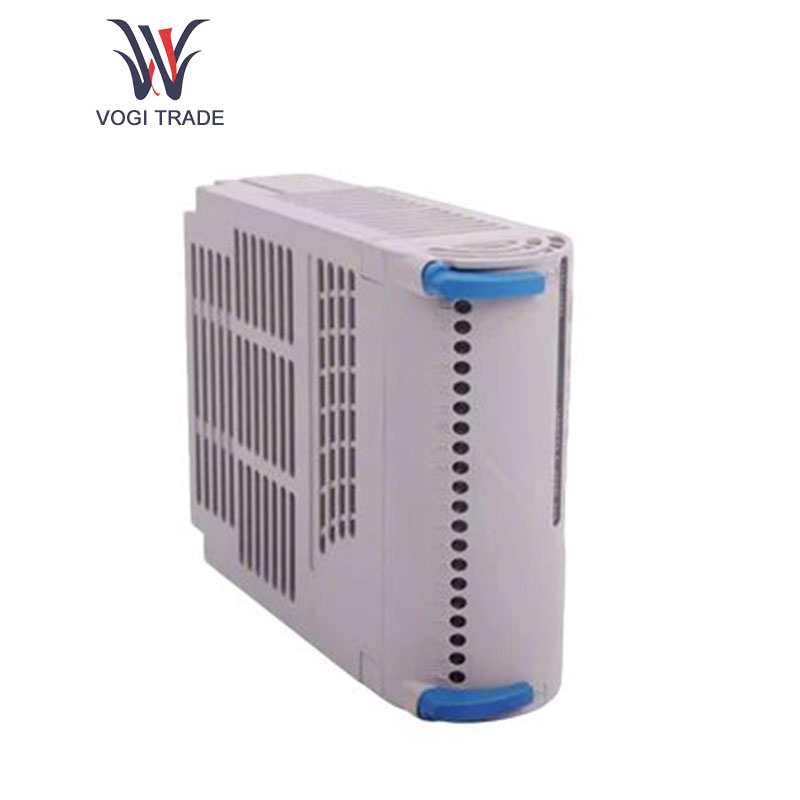

Westinghouse 1C31147G01

Details

In overlooking signals which are analog from various sensors, transmitters and other equipment, Westinghouse 1C31147G01 is responsible for converting these signals into digital signals, which thus will be processed further for control analysis and decisions processes.

Specification

Input channel: There are multiple analog input channels for Westinghouse 1C31147G01, which enables it to connect simultaneously to multiple analog sensors to cater for multifarious signal acquisition applications at large chemical production devices, some temperature, pressure and other signals measuring multiple reactors. All the channels incorporate good isolation characteristics that inhibit mutual interference between those signals to ensure both accuracy and independence of signals received by each of the channels.

Type of inputs: Westinghouse 1C31147G01 provides for a range of types of signal inputs from its most-used analog signals, namely, 4-20mA current and 0-10V voltage signals. These signal types have been quite common in various sorts of industrial sensors. For example, pressure transmitters reach a level of output of 4-20mA, which will vary as a function of pressure, while certain liquid level sensors will output a signal in the format of 0-10V to indicate the height of liquid levels. It delivers a high-resolution signal that measures across the wide spectrum of different sensitivity levels-enabling accurate reading on even minor changes. A resolution of 12 bits or beyond is generally possible, which means dividing an input signal into thousands of levels for identification and conversion thereof.

Calibration and configuration: The Westinghouse 1C31147G01 means that the user can perform calibration to ensure the accurateness during acquisition. Calibrating the module shall be according to the standard signal source, whereby internal conversion parameters will be properly adjusted such that the module can be better adapted to different sensors and applications. With flexible configuration functionality, various parameters may be set via a special configuration software or through a programming tool after which sensor needs-were dispositioned as per the divergent industrial control projects.

Features

Unmistakable alarm method: Various methods, such as flashing indicator lamps and relay operations, through which fault signals from the unit would have been depicted, besides passing on the details of faults to the control system's monitoring interface, ends limitless access for vendor operators to discerns and troubleshot their faults on an emergency basis. This intuitive alarm procedure helps the maintenance personnel in locating the fault point and thereby pursuing means of doing repairs, which, in turn, leads to better reliability and maintainability of the whole system. Some alarm methods for existing similar products are not as simple or intuitive as these, which admits to difficulties in traceability and accurate interactions.

High sampling frequency：The Westinghouse 1C31147G01 usually reaches some value thousands of samples per second. Such a high-speed sampling frequency allows the module to promptly capture the dynamic changes of analog signals with split-second timing. Process controls of industrial areas requiring high response times to signal changes, such as monitoring high-speed motion equipment and rapid chemical reactions, are made possible on the fast transmission of collected data to the control system to enable control decisions that significantly boost production efficiency and system response speeds. Other similar products have varying sampling frequencies from low to high; they're just enough to miss out on real-time signal changes, which results in control lag, affecting the stability of production processes and product quality.

Application

CNC machine tool field

1. Process monitoring: Westinghouse 1C31147G01 can be used to collect analog signals for the cutting force, spindle speed, and feed speed during CNC machine tool operations, thereby monitoring the processing status in real time and quickly detecting abnormal occurrences, such as tool wear and overload, hence improving processing accuracy, product quality, and prolonging tool life.

2. Equipment status monitoring: The Westinghouse 1C31147G01 generates current motor temperatures, hydraulic pressures, and lubricating system statuses for preventive maintenance, reducing equipment failure rates and increasing should-be reliability and utilizability while decreasing downtime and increasing production efficiency.

Papermaking industry

1.Pulping process: In the pulping process, the Westinghouse 1C31147G01 will serve to collect signals out of temperature, pressure, and liquid level wise in respect of the cooking pot while warning signs on enhancing the control parameters of the pulping process with production efficiencies being fosters toward the final pulp relating to quality. For example, it controls the cooking temperature and time so that the pulp achieves appropriate fiber strength and flexibility.

2.Papermaking process: During the papermaking process, Westinghouse 1C31147G01 can monitor and control paper machine speed, wire pressure, drying cylinder temperature, and other parameters so that the paper thickness, strength, flatness, and other quality indicators meet their requirements, thus enhancing the quality and stability of paper production.

The cement industry

1. Raw material preparation: In the raw material preparation of cement production, the Westinghouse 1C31147G01 can be used to collect raw material flow, weight, moisture, and other signals, accurately control the mixing ratio and feed amount of raw material, ensure the stable quality of raw material, and lay a good foundation for subsequent clinker calcination.
