ABE042 204-042-100-011

Product Overview

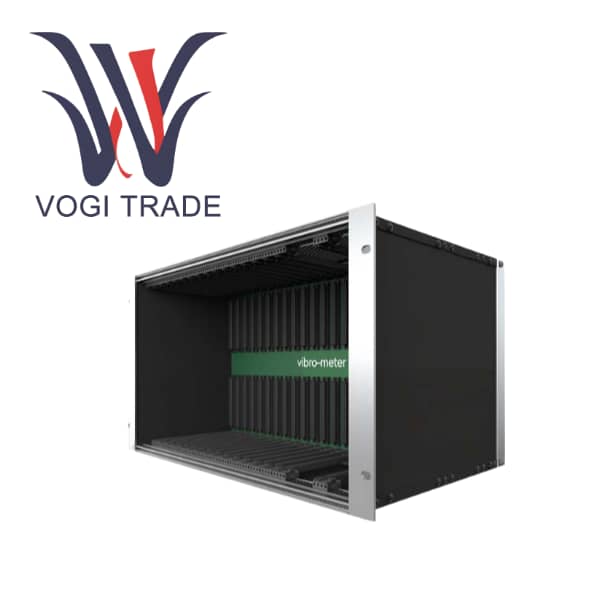

ABE042 204-042-100-011 is a 6U height, 19-inch standard industrial chassis in the Parker Meggitt VM600 series, specifically designed for mechanical protection and condition monitoring applications of rotating mechanical equipment. The code 204-042-100-011 in this model corresponds to the standard configuration in the order information table:

204 indicates the category of the VM600 system chassis;

Type 042 is clearly defined as ABE042. The main difference between ABE042 and ABE040 is that the installation bracket is located at the rear of the chassis, which is convenient for installation in control cabinets with limited depth.

100-011 usually represents the basic hardware version. The specific details need to be confirmed in combination with the complete order code.

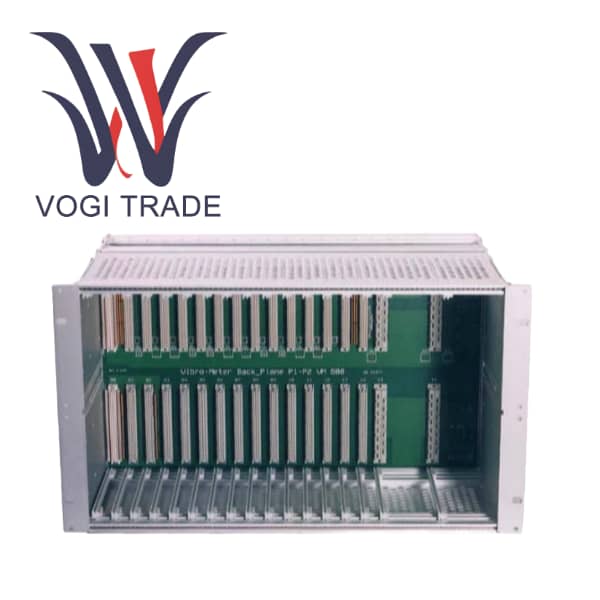

The 204-042-100-011 chassis itself is a passive backplane platform, designed to accommodate and interconnect various VM600 functional cards (such as processor cards, input/output cards, relay cards, etc.), and to achieve high-speed data communication and power distribution through the integrated VME bus and dedicated signal bus. ABE042 is not an independent working device, but the "skeleton" and "central nervous system" of the entire VM600 monitoring system.

Product Features

Modularization and high scalability

Users can flexibly combine different types of VM600 cards according to their needs, such as MPC4 mechanical protection cards, CMC16 condition monitoring cards, RLC16 relay cards, etc., to build a system ranging from simple single-machine protection to complex multi-unit monitoring.

High-reliability industrial design

The sturdy aluminum structure design can resist impact and vibration, making it suitable for harsh industrial sites

Redundant power options ensure "zero downtime" power supply in critical applications

The integrated power supply monitoring provides real-time feedback on the power supply health status through the dry contact of the relay

Optimized signal integrity

The dedicated analog signal backplane bus directly transmits the sensor's original signal from the preprocessing card to the back-end I/O card, avoiding the conversion loss through the digital bus and ensuring the high fidelity of weak vibration signals.

Convenient engineering and maintenance

The front-plug and rear-exit architecture features processing cards inserted from the front side and I/O terminal blocks located at the rear side. The wiring is neat and maintenance is convenient

Blank panels should be covered, and unused slots can be sealed with standard blank panels to ensure EMI shielding and airflow management

Factory pre-configuration can provide a complete "plug and play" system, significantly reducing on-site commissioning time

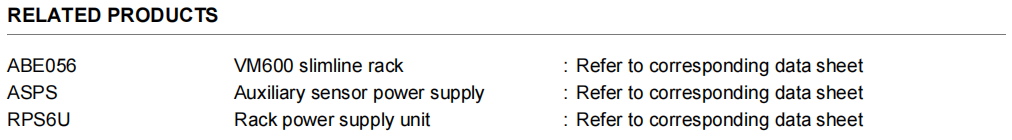

Comparison of Similar Products ABE042 vs ABE040 vs ABE056
