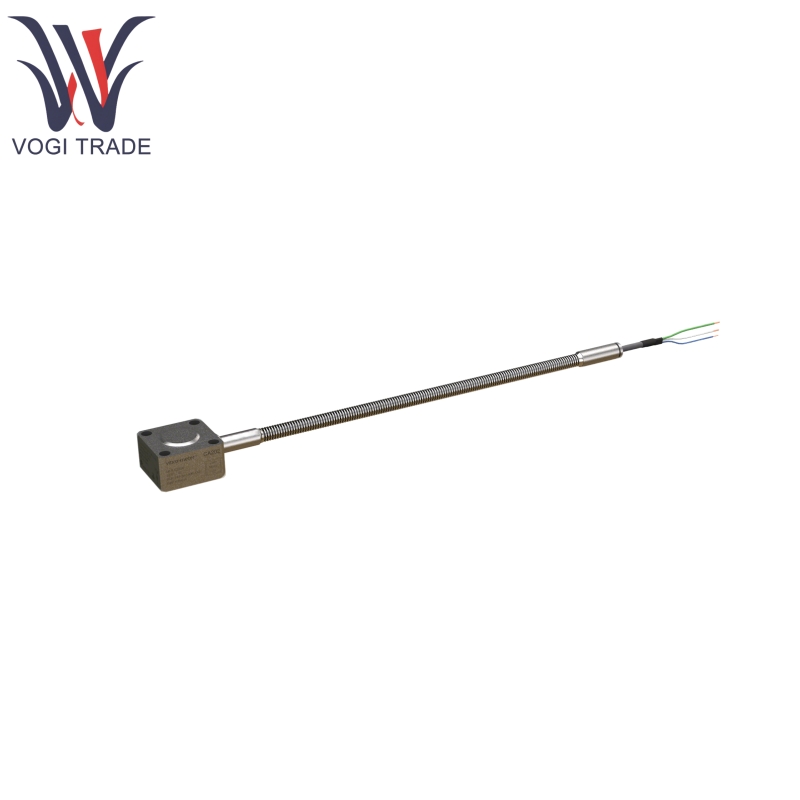

Brand: Vibro-Meter Description: Piezoelectric Accelerometer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen CA202 144-202-000-125 Vibro-Meter Piezoelectric Accelerometer is designed for heavy duty industrial vibration monitoring. Its core feature is a symmetrical shear mode polycrystalline measuring element in an austenitic stainless steel housing (1.4441) with built-in case insulation and differential outputs to ensure measurement stability.
|
Manufacture |
Vibro-Meter |
|
Model Number |
CA202 |
|
Ordering Number |
144-202-000-125 |
|
Catalog |
Vibration Monitoring |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9033000090 |
|
Dimension |
16*16*12cm |
|
Weight |
0.6kg |
Product Feature
CA202 144-202-000-125 features a symmetrical shear mode polycrystalline measuring element with internal case insulation in an austenitic stainless steel case (housing).
CA202 144-202-000-125 is fitted with an integral low-noise cable that is protected by a flexible stainless-steel protection hose (leaktight) which is hermetically welded to the sensor to produce a sealed leaktight assembly.
CA202 144-202-000-125 is available in different versions for different industrial environments, Ex versions for installation in potentially explosive atmospheres (hazardous areas) and standard versions for use in non hazardous areas.
Product Functions
CA202 144-202-000-125 offers highly reliable measurements, wide environmental adaptability, structural advantages and easy integration.
1.Sensitivity of 100pC/g (±5%) and dynamic range of 0.01-400g peak ensure accurate vibration monitoring over a wide range.
2.Operating temperatures -55 to 260°C (sensor), -55 to 200°C (cable), with short-term resistance to higher temperatures; corrosion, moisture and contaminant resistant (100% humidity, dust, salt spray, etc.).
3.Symmetrical design reduces lateral interference (lateral sensitivity ≤ 3%), sealed welded housing and cables ensure long-term stability.
4.No input power required, charge output mode, works with dedicated signal conditioner, no need to insulate mounting surface for installation.
Product Application
Industrial Vibration Monitoring:
CA202 144-202-000-125 is suitable for vibration condition monitoring of heavy machinery and rotating equipment (e.g. motors, turbines) to prevent equipment failure.
Hazardous area:
CA202 144-202-000-125 is Ex-approved for use in environments where potentially explosive gases/dusts are present (e.g., Zone 0/1/2 zones for petrochemicals, natural gas, coal mines, etc.).
Harsh environments:
CA202 144-202-000-125 can withstand harsh conditions such as high temperatures, corrosion, and humidity, and is suitable for metallurgy, energy, and offshore engineering scenarios.

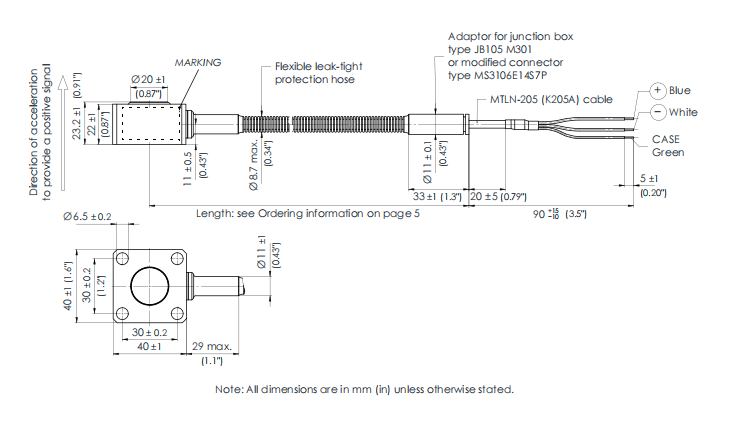

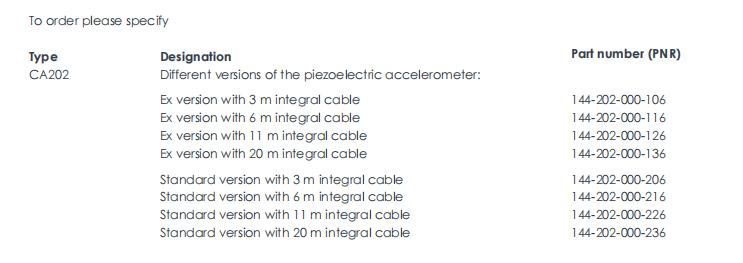

Mechanical Drawings and Ordering Information of CA202 144-202-000-125 as below
