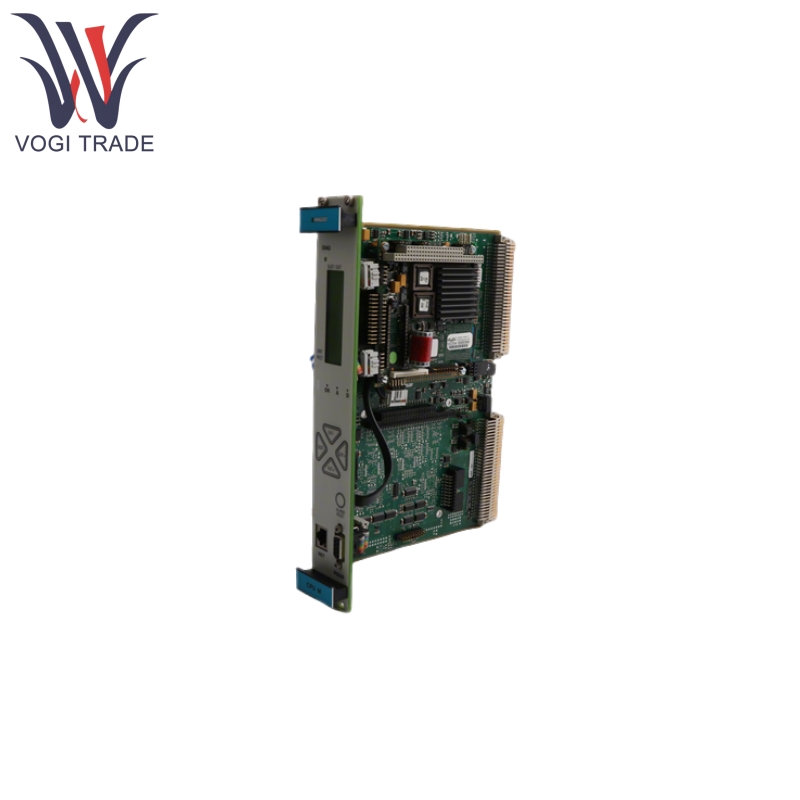

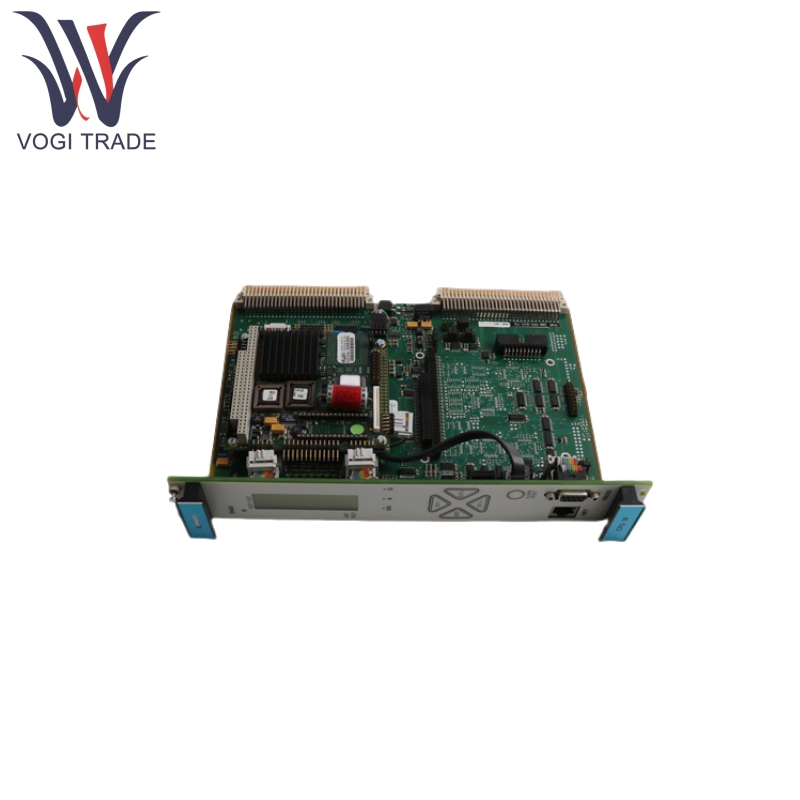

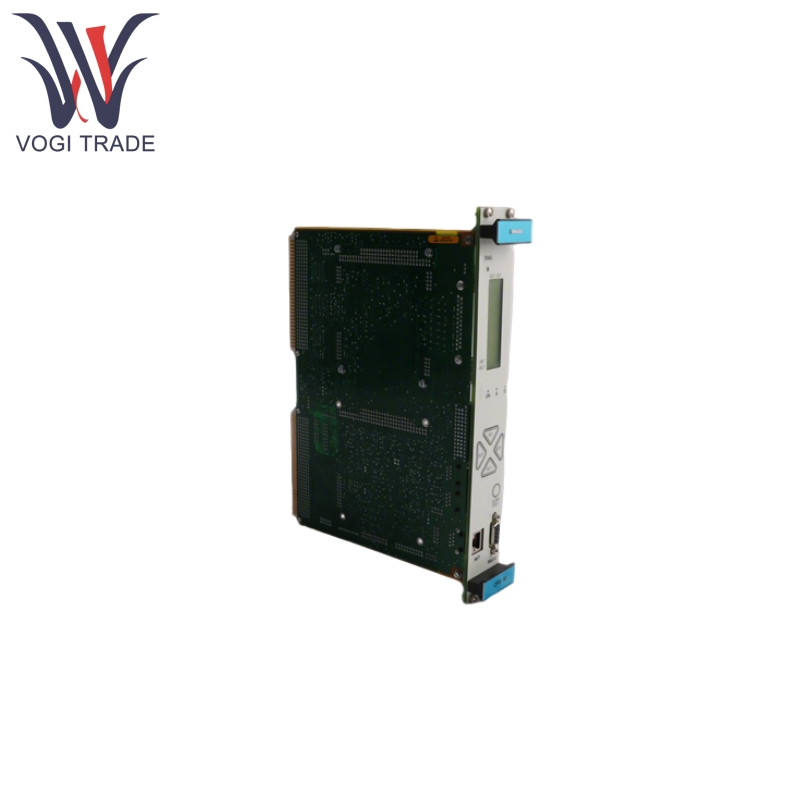

Brand: Vibro-Meter Description: Modular CPU Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen CPUM 200-595-079-532 is the core control and communication component of VM600 rack-mounted machinery protection system (MPS) and condition monitoring system (CMS), with the functions of rack management, data gateway, multi-protocol communication, etc. It is designed for the monitoring scenarios of medium and large-sized rotating machinery.
|
Manufacture |
Vibro-Meter |
|
Model Number |
CPUM |
|
Ordering Number |
200-595-079-532 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8471800000 |
|
Dimension |
28*20*6cm |
|
Weight |
0.6kg |
Product Feature
CPUM 200-595-079-532 supports configuration management of MPC4/IOC4T, AMC8/IOC8T and other protection cards, including “hot-plug” auto-reconfiguration to simplify system maintenance.
CPUM 200-595-079-532 manages XMx16/XIO16T condition monitoring card pairs without the need for additional VibroSight servers, making it suitable for integrated monitoring scenarios.
CPUM 200-595-079-532 supports Modbus RTU (RS-232/RS-485), Modbus TCP and PROFINET (firmware version 081 and higher), and exchanges data with third-party systems (DCS/PLC) as a fieldbus slave.
CPUM 200-595-079-532 is equipped with 2 basic serial interfaces + 2 additional serial interfaces supporting RS-422/RS-485 for redundant communication.
CPUM 200-595-079-532 supports “CPUM access lock” (hardware) and “MPSx password authentication” (software), which limits the Ethernet interface functions and prevents misuse, complying with industrial safety norms.
Product Using Principle
CPUM 200-595-079-532 communicates with the MPC4/AMC8 protection card via VME bus and with the XMx16/XIO16T condition monitoring card via Ethernet, collects configuration information and measurement data, and supports hot-plugging and automatic reconfiguration.
CPUM 200-595-079-532 can process the collected data such as vibration and rotational speed, and display the measured values and alarm status in real time through the front-end LCD, with synchronized feedback of system health from LEDs.
CPUM 200-595-079-532 can transmit the processed data to third-party systems such as DCS/PLC through Modbus/PROFINET protocol, and receive external control commands (e.g. remote configuration).
Alert/Danger alarms are triggered and indicated by LEDs when the monitored value exceeds the threshold; unauthorized access is restricted through hardware/software security mechanisms, and event logs record all critical operations and status changes.
Product Parameter
The following is CPUM 200-595-079-532 detail.
|
Interface Type |
Specifications |
|
Ethernet |
2 channels (10/100BASE-TX), RJ45 interface supports TCP/IP, Modbus TCP, PROFINET (firmware version 081+) transmission rate 100 Mbps, transmission distance ≤ 100 m1 channel RS-232 (front panel, rate ≤ 115.2 kBaud, point-to-point, for MPSx software configuration) |
|
Serial Interfaces (Basic) |
1 channel RS-232/RS-485 (rear IOCN, rate ≤ 115.2 kBaud, supports Modbus RTU, isolation 500 VDC) |
|
Serial Interfaces (Additional) |
2 channels RS-422/RS-485 (from optional module, rear IOCN, rate ≤ 115.2 kBaud, supports Modbus RTU, isolation 500 VDC) |
|
Internal Communication |
VME bus (A24/D16 master mode) for communication with MPC4/AMC8 via the rack backplane Ethernet for communication with XMx16/XIO16T |
|
Category |
Range / Standards |
|
Operating Temperature |
-20 to 65°C (-4 to 149°F) |
|
Storage Temperature |
-25 to 80°C (-13 to 176°F) |
|
Humidity |
0-90% relative humidity, non-condensing (operating / storage) |
