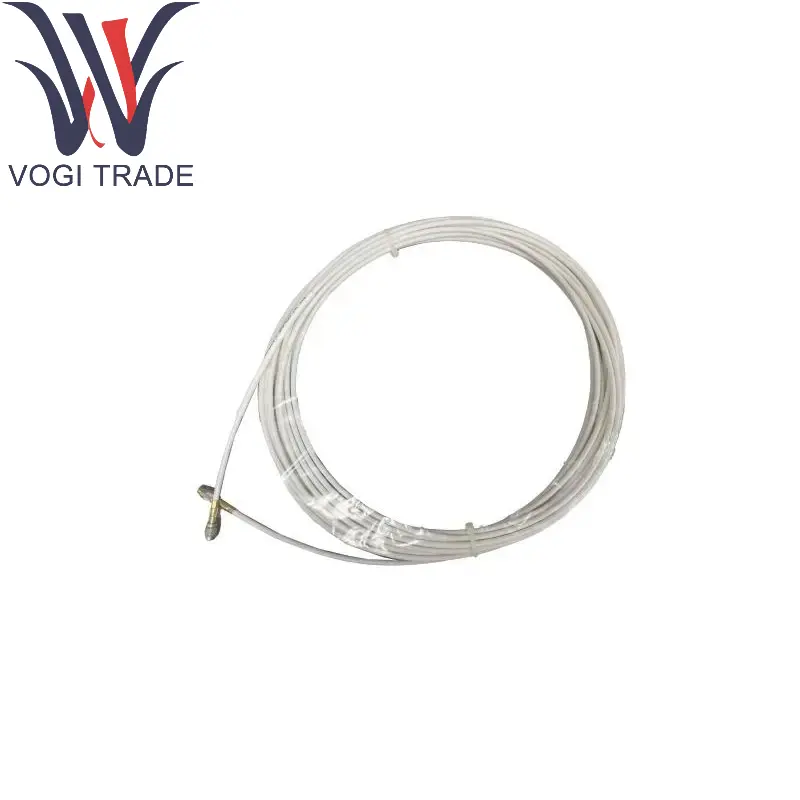

Brand: Vibro-Meter Description: Extension Cable Condition: New Warranty: 1 year Inventory Qty: 1 Payment term: T/T Shipping Port: ShenZhen Vibro-Meter EA402 913-402-000-013 A1-E090-F1-G088 is based around a TQ402 or TQ412 non-contact transducer and an IQS450 signal conditioner.
|
Manufacture |
Vibro-Meter |
|
Model Number |
EA402 |
|
Ordering Number |
913-402-000-013 A1-E090-F1-G088 |
|
Catalog |
Probes & Sensors |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9014800010 |
|
Dimension |
16cm×5.5cm×5.4cm |
|
Packing Dimension |
18cm×7.5cm×7.4cm |
|
Weight |
0.17kg |
Specifications:
Temperature ranges
Transducer : −40 to +180 °C with drift < 5% (operating). +180 to +220 °C with drift > 5% (short-term survival).
Transducer and cable : −40 to +195 °C if used in an Ex Zone
Cable, connector and optional protection : −40 to +200 °C
Protection rating (according to IEC 60529)：The head of the proximity transducer (transducer tip and integral cable) is rated IP68
Vibration (according to IEC 60068-2-26)：5 g peak between 10 and 500 Hz
Shock acceleration (according to IEC 60068-2-27)：15 g peak (half sine-wave, 11 ms duration)
Physical characteristics
Transducer construction：Wire coil Ø 8 mm, Torlon (polyamide-imide) tip, encapsulated in stainless steel body (AISI 316L) with high-temperature epoxy glue
Integral and extension cables : FEP covered 70 Ω coaxial cable, Ø 3.6 mm
Connectors : Self-locking miniature coaxial connectors
Optional protection
Flexible stainless steel hose (protection tube）：The stainless steel hose provides additional mechanical protection but is not leak-tight
FEP sheath (extruded fluorinated ethylene propylene) : The FEP sheath provides resistance to almost all chemicals and low permeability to liquids, gases and moisture. It is also flexible, low friction and mechanically tough.
Related matching products
Sensor:
Accelerometer.
Vibro-Meter EA402 913-402-000-013 A1-E090-F1-G088 eddy current probe is used for shaft vibration measurement.
System Integration:
Vibro-Meter EA402 913-402-000-013 A1-E090-F1-G088 for use with VM600 Monitoring System or IPC650 Controller.
Connection to DCS/PLC System.
Accessories:
Cables.
Signal Conditioning Module.
Related items:
EA402 913-402-000-012 A1-E090-F0-G000 without flexible stainles steel hose

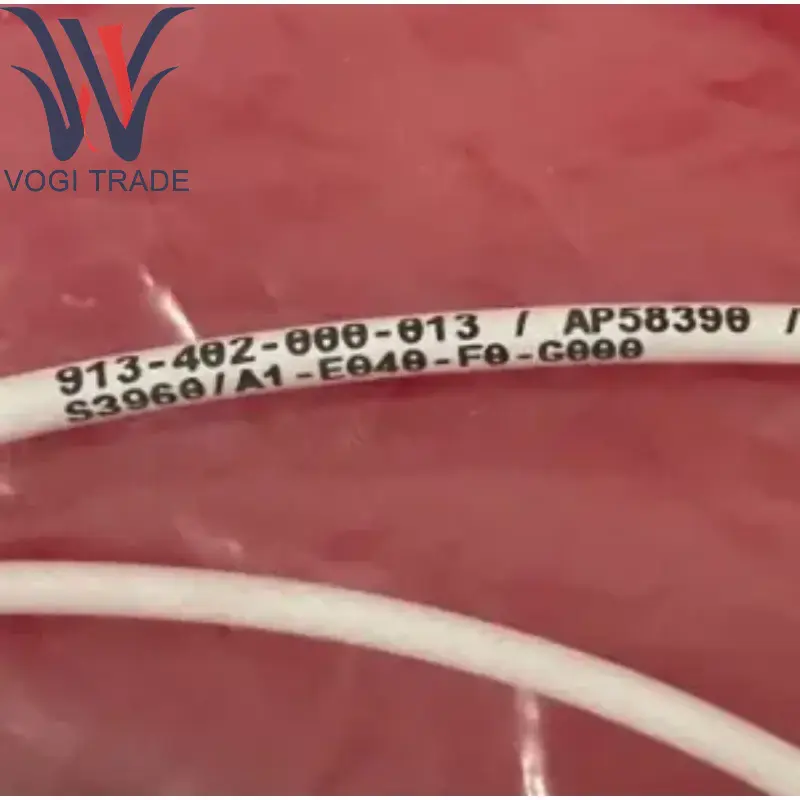

EA402 913-402-000-013 A1-E090-F0-G000 without flexible stainles steel hose
EA402 913-402-000-012 A1-E040-F0-G000 with flexible stainles steel hose

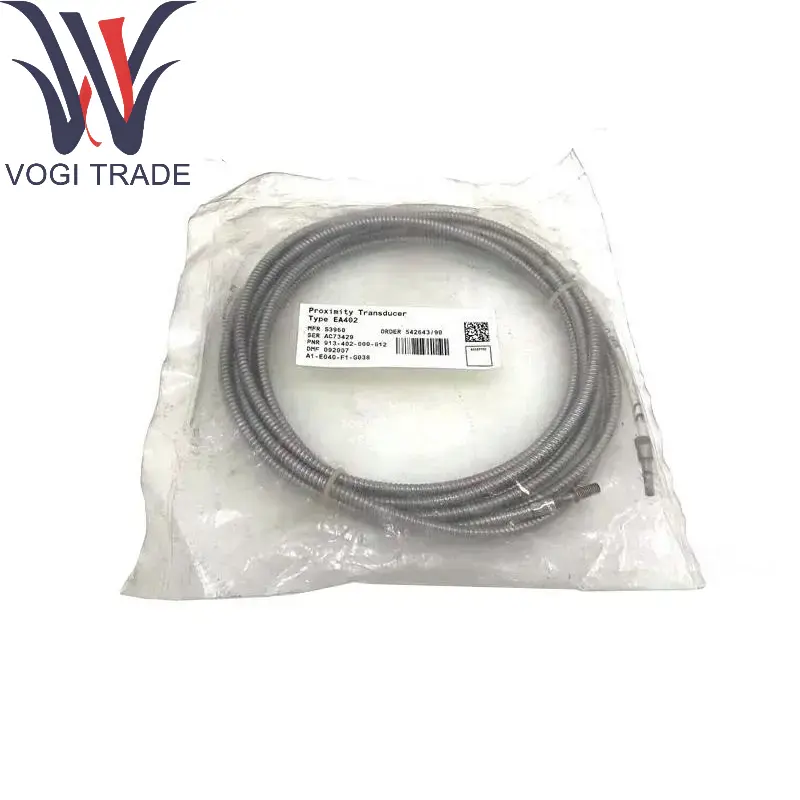

EA402 913-402-000-013 A1-E040-F1-G038 with flexible stainles steel hose
APPLICATIONS
Shaft relative vibration and gap/position measurement chains for machinery protection and/or condition monitoring
Ideal for use with VM600Mk2/VM600 and VibroSmart® machinery monitoring systems
API 670 applications
For more EA402 913-402-000-013 A1-E090-F1-G088 information, please click on the product datasheet below.
