EA402 913-402-000-013-A2-E095-F5-G000

Core parameters

Nominal length: 9.5 meters (tolerance ±950 mm).

Explosion-proof certification: Intrinsically safe (Ex ia IIC T6...T3 Ga), in line with European (ATEX), international (IECEx), North American (cCSAus) and other multi-national certifications, suitable for Zone 0, 1, 2 hazardous areas.

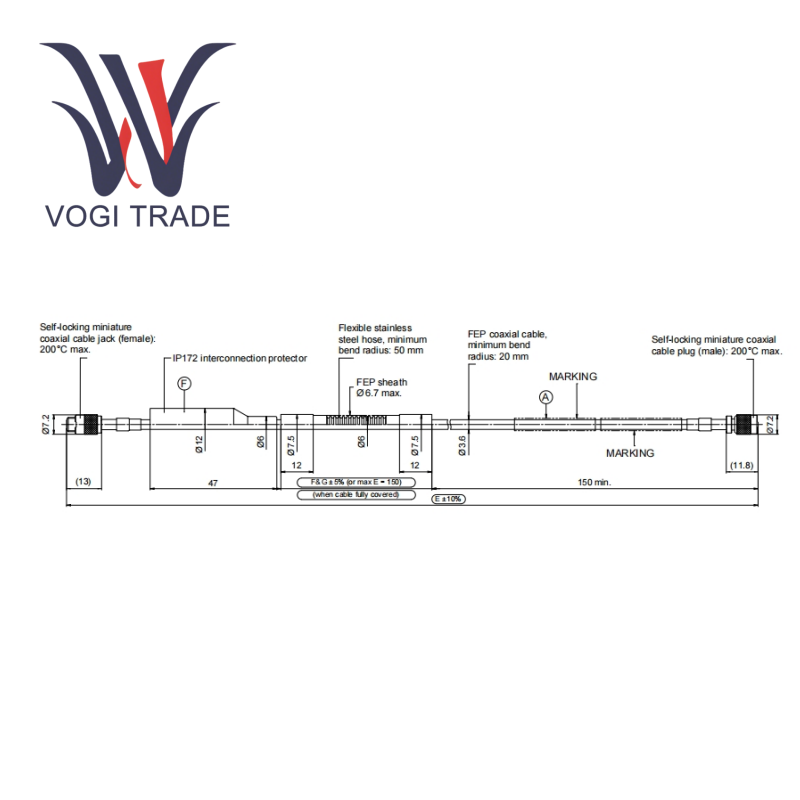

Interface protection: Standard IP172 protective connector to enhance the reliability of the connection point.

Operating temperature: -40°C to +200°C (cable, connector and protective components).

Cable characteristics: 70 Ω coaxial cable, covered with FEP (fluorinated ethylene propylene) material, providing excellent chemical resistance, low permeation and mechanical toughness.

Adapter system: As part of the TQ4xx system, it must be used with the TQ442 probe and IQS450 conditioner to form a nominal total length system.

Features and Benefits

The key advantage of the Meggitt Vibro-Meter EA402 913-402-000-013-A2-E095-F5-G000 is that it combines long-distance signal transmission capabilities with intrinsically safe explosion-proof features.

The 9.5-meter length provides flexible installation layout space, especially for large equipment or applications with complex wiring paths.

Its strict intrinsic safety certification ensures that the Vibro-Meter 913-402-000-013-A2-E095-F5-G000 can work safely and reliably in the most severe explosive gas environments.

The standard IP172 interface protection significantly improves the ruggedness and environmental tolerance of the connection point.

In addition, the FEP cable sheath provides excellent chemical corrosion resistance and long-term stability.

Typical application scenarios

Hazardous area monitoring: gas turbine shaft vibration (Zone 1), compressor axial displacement (Zone 2).

Long-distance wiring: large hydroelectric generator sets, underground pumping stations and other inaccessible equipment.

Highly corrosive environments: turbine machinery condition monitoring in offshore platforms and chemical plants.
