Brand: Vibro-Meter Description: Cable Assembly Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen EE139 924-139-000-002 function is to enable signal transmission between sensors and monitoring systems/devices. It uses a bayonet connector and flying leads design to meet the signal transmission requirements of CE134 sensors, and is particularly suitable for harsh industrial environments and potentially explosive areas.
|
Manufacture |
Vibro-Meter |
|
Model Number |
EE139 |
|
Ordering Number |
924-139-000-002 |
|
Catalog |
Vibration Monitoring |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8544421100 |
|
Dimension |
16*16*12cm |
|
Weight |
0.6kg |
Product Feature
EE139 924-139-000-002 is equipped with a bayonet connector (based on the MS3112/MIL-C-26482 standard), which is directly compatible with the bayonet connector of the CE134 sensor (such as the MS3112E08-3S), ensuring stable connectivity.

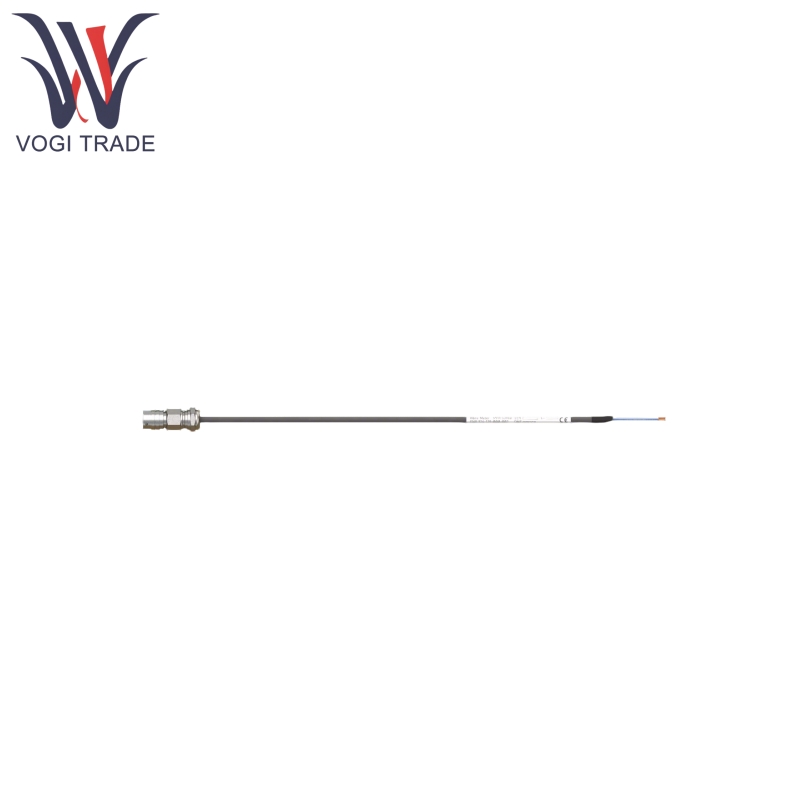

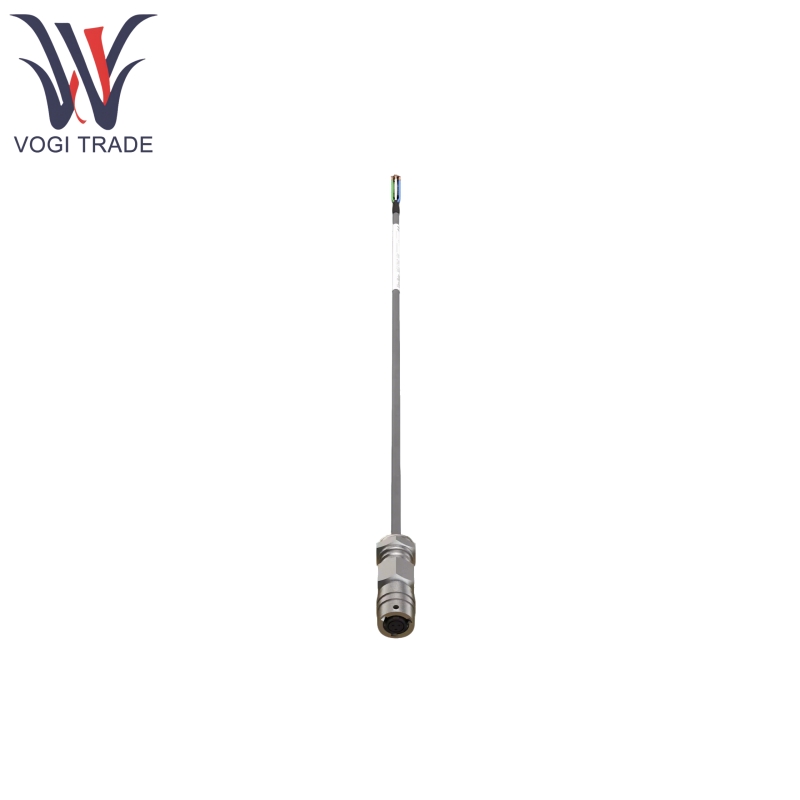

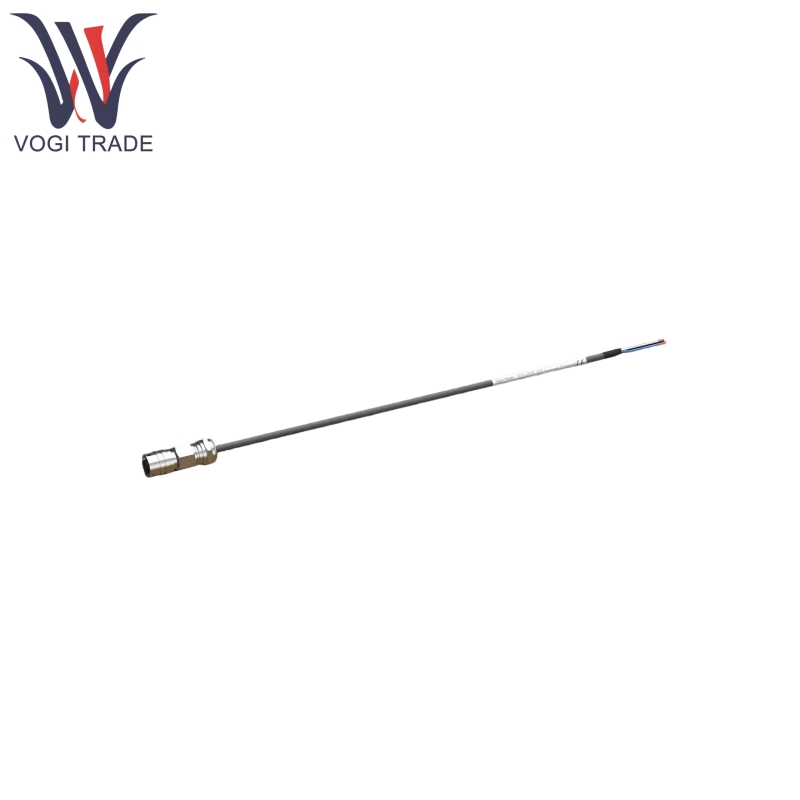

One end features a bayonet connector, while the other end has a flying lead (exposed wire), facilitating flexible wiring with monitoring systems, signal processing equipment, and other devices.
As an accessory for the CE134 sensor, EE139 924-139-000-002 is presumed to feature low-noise, shielded design (consistent with the CE134 sensor's “low-noise, shielded cable” characteristics), reducing signal interference. The material also possesses certain temperature resistance and corrosion resistance capabilities (suitable for industrial environments involving cooling fluids, lubricants, steam, etc.).
Product Using Principle
EE139 924-139-000-002 serves as a signal transmission medium, operating by connecting via a bayonet connector to the integrated electronic components (signal processing module) of the CE134 sensor. It transmits the modulated current signal output by the sensor (vibration signals converted from charge to current) via a flying lead to the backend monitoring system (such as a vibration monitor or protective device), enabling long-distance, low-interference transmission of vibration data.
Its design eliminates the reliance on high-temperature-resistant connectors (the integrated electronic components of the CE134 have already converted the signal into a form suitable for long-distance transmission), ensuring stable signal transmission in harsh environments.
Product Parameter
The following detail is for EE139 924-139-000-002 Cable Assembly.
Cable Material:
Made of temperature-resistant and corrosion-resistant insulating materials (such as stainless steel or high-performance polymers consistent with the CE134 protective tube).
Shielding Performance:
Equipped with a shielding layer to reduce electromagnetic interference (compliant with the EN 61000 series electromagnetic compatibility standards).
Operating Temperature Range:
Compatible with the temperature zones of the CE134 (e.g., covering the sensor head “Zone A: -55 to 350°C” or electronic components “Zone C: -40 to 125°C” transmission requirements).
Signal transmission characteristics:
Supports the CE134's “current-modulated output signal” (5µA/g sensitivity), meeting long-distance transmission requirements.
