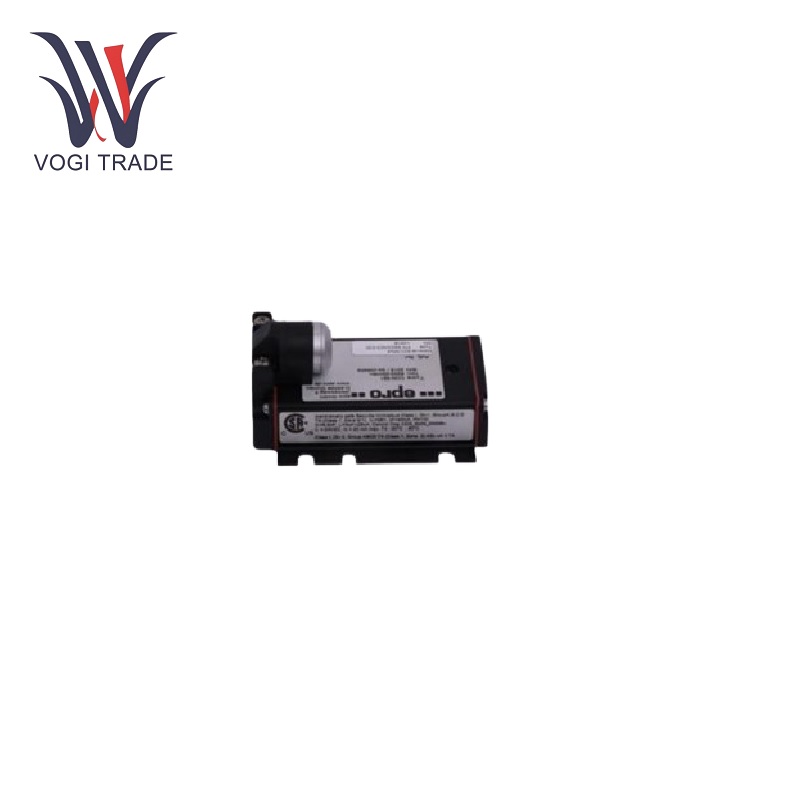

EPRO CON021/914-060

Technical Specification

Response time: <15μs.

Linearity error: ≤1.0%.

Temperature drift: zero point 200 mV/100 K; sensitivity <2%/100 K.

Time drift: maximum 0.3%.

Power supply voltage error: <0.2%/V.

Output voltage in linear range: -4V to -20V (power supply voltage is -24V).

Output voltage maximum range: -1V to -22V.

Internal resistance: 100 kΩ.

Operating temperature range: -30℃ to 100℃.

Shock and vibration: 5g@60Hz@25℃.

Protection level: IP20. Connection method with sensor: connected through LEMO plug.

Power supply and output connection method: screw terminal type. Maximum 1.5 mm² wire can be connected.

Features

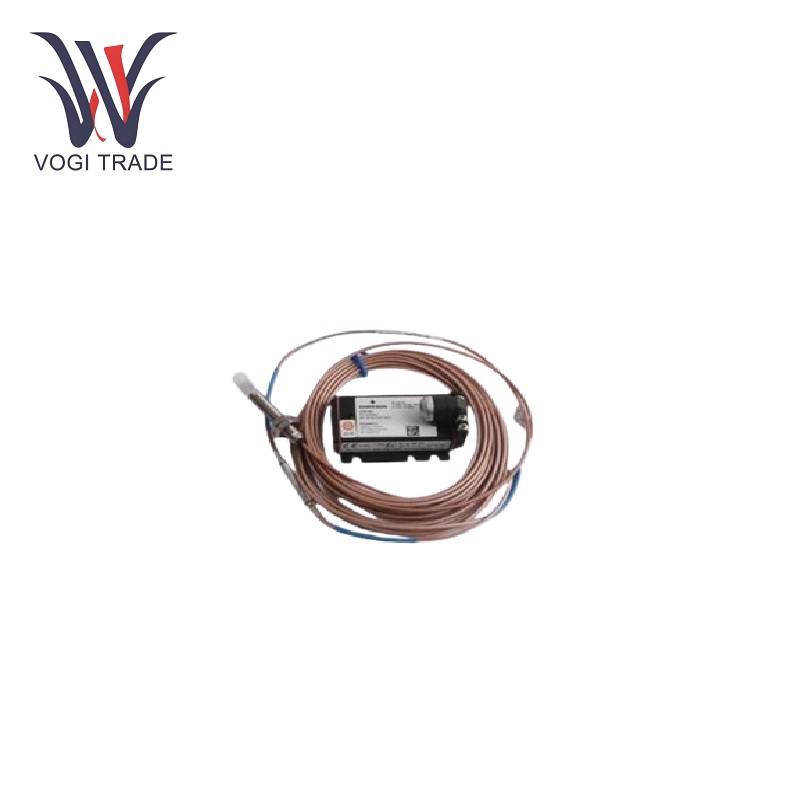

Powerful measuring capacity: EPRO CON021/914-060 is able to measure quantities like radial and axial shaft displacement, position, eccentricity, and velocity under the variety of conditions that make it suitable for performing the monitoring of the major parameters of rotating machines in diverse industrial domains along with the eddy current sensors like PR6424.

Versatile signal conditioning: Along with a small number of supplied signal variables, EPRO CON021/914-060 is designed to aggregate or process just about any input signal that might be needed. It is a good quality instrument to sense AC and DC voltages and currents and resistance signals. It is equipped with programmable gain amplifiers that can be configured to operate in normal signal conditions and to raise the signal level to that suitable for analysis.

Reduce noise： EPRO CON021/914-060 possesses low-pass, high-pass, and band-pass filters with adjustable cutoff frequencies that minimize noise and interference input signal so that only what matters can be passed on and made available for other types of analysis and processing.

Multiple sensor support: it can cope with many sensor styles. For example, thermocouples, resistance temperature detectors RTDs, or piezoelectric sensors. That versatility makes EPRO CON021/914-060 adaptable to various measurement scenarios where different physical quantities need to be monitored simultaneously and different phases of an industrial process.

Applications

Power generation: The principal use of EPRO CON021/914-060 in power systems is to monitor vibrations and the temperature of the turbine shaft and generator bearings, thus providing a basis for predicting future faults that could lead to planned maintenance within safe conditions and potentially operational years. 、

Oil and gas: it is used in refineries and gas plants for monitoring pipeline flow rates, pressure levels, and temperatures. Monitoring will result in better production, compliance with safety regulations, and the mitigation of leaks and other unsafe conditions.Hence this can be crafted in manufacturing, especially for industrial processes in automotive production, metalworking, and electronics manufacturing.

Aerospace: EPRO CON021/914-060 provides ground testing for aircraft components and in-flight monitoring of certain key systems in the aerospace industry. Such insightful rationale will effectively assess the health and performance of engines, landing gear, and other critical subsystems for dependable flight operations.

Energy industry: For wind turbines and solar plants, EPRO CON021/914-060 measures wind speed, blade vibration on wind turbines, and temperature fluctuations in solar panels. These parameters are imperative in optimizing energy production, effective prediction of critical maintenance scope, and improvements in performance and durability of wind and solar plants.
