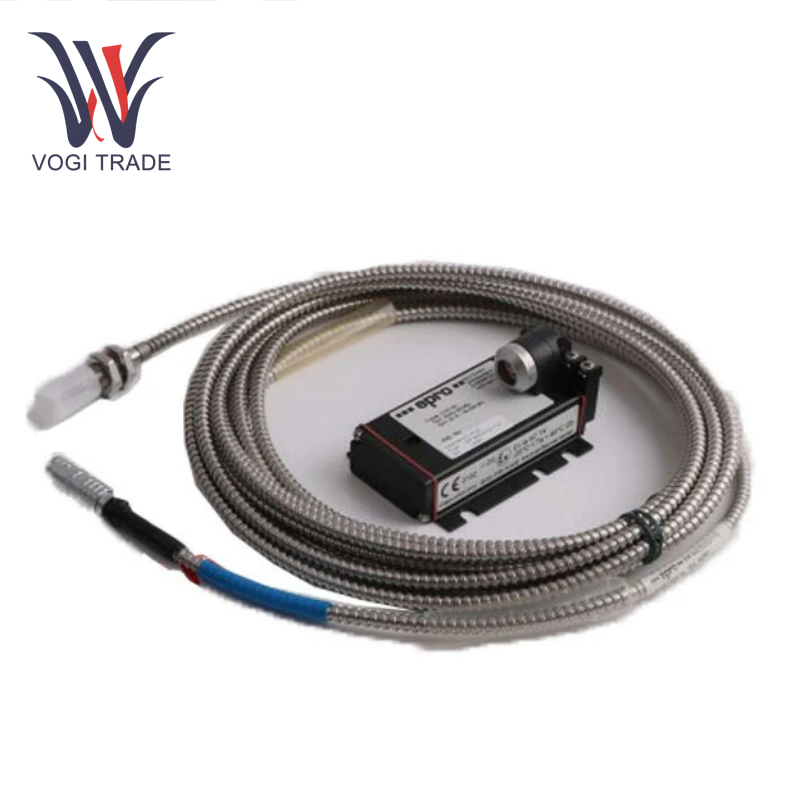

Brand: EPRO Description: 8mm Eddy Current Sensor Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: ShenZhen EPRO PR6423/010-040 is a non-contact vibration sensor based on eddy current effect. It needs to be used with a preamplifier (such as CON021) and is designed for monitoring parameters such as shaft vibration and displacement of rotating machinery.
|
Manufacture |
EPRO |
|
Model Number |
PR6423/010-040 |
|
Country Of Origin |
Germany |
|
HS CODE |
8414909090 |
|
Dimension |
25cm*25cm*6cm |
|
Packing Dimension |
27cm*27cm*10cm |
|
Weight |
1.2kg |
Technical Parameters
Linear measurement range: ±0.5 mm
Initial air gap (static displacement reference): 0.5 mm (20 mils)
Resolution: 1% of the measurement range
Linearity error: ±0.025 mm (±1 mil) @ 0~45°C
Sensitivity: 8 V/mm (203.2 mV/mil) ±5%
Temperature range: -35°C to +180°C
Supply voltage: 24V DC
Output signal: 4~20 mA current output
Digital output: 6 independent programmable channels, support normally open/normally closed configuration
Thread size: M10×1 metric thread
EPRO PR6423/010-040 Non-contact measurement based on eddy current effect:
EPRO PR6423/010-040 works with the preamplifier to form an oscillation circuit. When the sensor probe approaches a conductive metal target (such as the surface of a shaft), the change in the electromagnetic field causes the oscillator amplitude to attenuate, and the attenuation amplitude is proportional to the distance between the probe and the target. .
Factory pre-calibration: Linear calibration is performed using 42CrMo4 calibration material. No additional calibration is required during installation. Only the air gap needs to be adjusted until the output signal of the preamplifier meets the requirements.
Signal processing: The preamplifier converts the distance signal into a standard current/voltage output, and uses the module to realize real-time monitoring of dynamic vibration, displacement and other parameters.
We also supply other models of this products: PR6423/010-010, PR6423/010-030, PR6423/015-010.They are the same in specifications, features and application range. The difference is the total length of the cable, refer to the table for details.
|
Module Number |
Cable Length |
|
PR6423/010-010 |
5m |
|
PR6423/010-030 |
6m |
|
PR6423/010-040 |
8m |
|
PR6423//015-010 |
5m（Thread length：75mm） |
Note: EPRO PR6423/010-040 can be used with the CON021 preamplifier to achieve signal amplification and processing.
Installation requirements: The center line of the probe is orthogonal to the axis center line, and the measuring surface must be free of cracks or bumps (roughness 0.4~0.8 μm)
For selection suggestions, please refer to the more detailed technical documents in the attachment.
