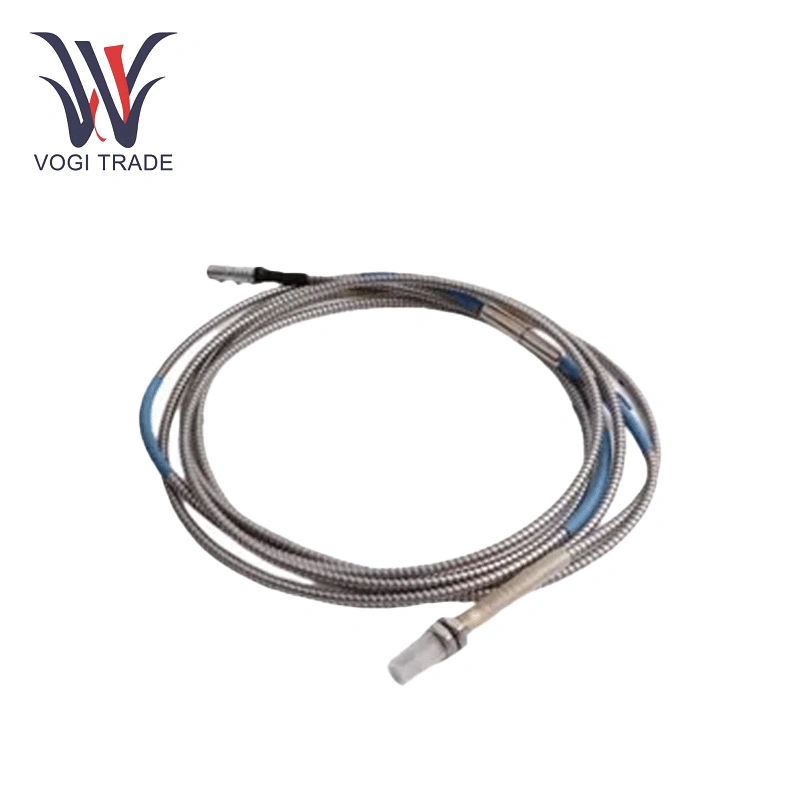

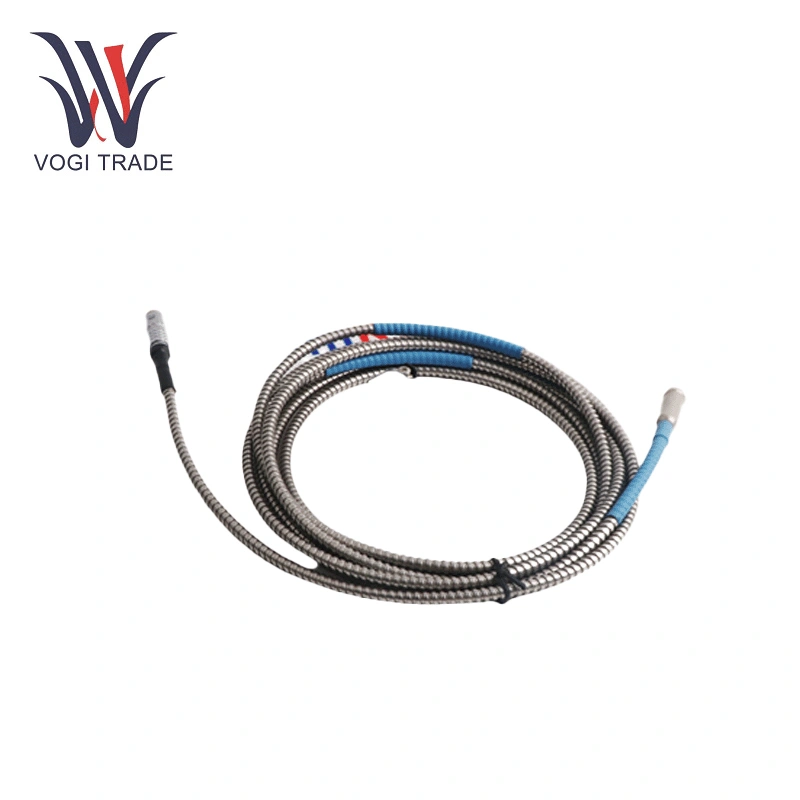

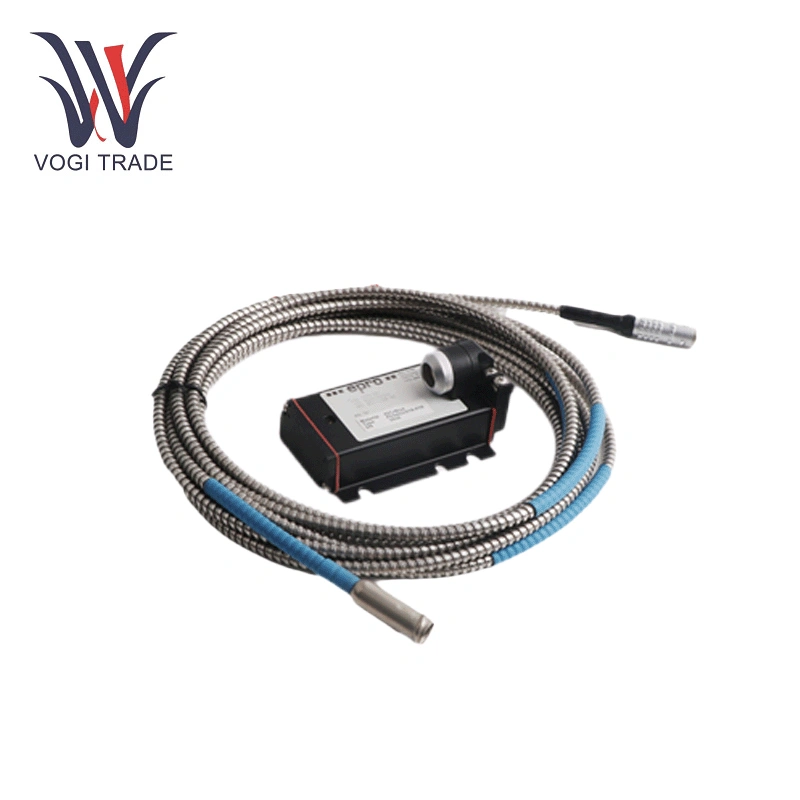

Brand: EPRO Description: 8mm Eddy Current Sensor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen The EPRO PR6423/016-011 is an industrial eddy current sensor for precision vibration and displacement monitoring, compliant with API 670 standards and IP67-rated for harsh environments.
|
Manufacture |
EPRO |
|
Model Number |
PR6423/016-011 |
|
Catalog |
/ |
|
Country Of Origin |
Germany |
|
HS CODE |
9031809090 |
|
Dimension |
5M |
|
Packing Dimension |
27*27*10CM |
|
Weight |
0.15kg |
Technical Parameters
Thread length:85mm
Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Minimum Shaft Diameter: 25 mm (0.79”)
Target Material (Ferromagnetic Steel) :42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Protection Class: IP66, IEC 60529
Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
Key Features
The EPRO PR6423/016-011 combines cutting-edge technology with robust construction:
Precision Measurement: Utilizing eddy current technology, it delivers ±0.025 mm accuracy over a 2 mm linear range, with a standardized 0.5 mm initial air gap for detecting minimal shaft eccentricity or misalignment.
Durable Design: Features a stainless steel casing and PEEK sensor tip for resistance to chemical corrosion and mechanical wear. The optional armored cable variant enhances protection in abrasive environments.
Versatile Integration: Compatible with 4–20 mA analog signals and RS485 digital outputs, the EPRO PR6423/016-011 seamlessly integrates into PLC/DCS systems for real-time data analysis.
Compatible Systems
The EPRO PR6423/016-011 supports integration with industry-leading monitoring solutions:
Condition Monitoring Platforms: Paired with Emerson’s AMS Suite or third-party systems like MMS 3000, it enables predictive maintenance by analyzing vibration trends and phase-angle data for dynamic balancing .
Adapter Interfaces: Utilizes CON021 converters or LEMO connectors for secure signal transmission, reducing installation complexity and ensuring compatibility with reverse-mount configurations.
Typical Use Cases
Power Generation: In gas turbines, the EPRO PR6423/016-011 monitors rotor axial displacement to prevent unplanned shutdowns caused by thermal expansion or bearing failures .
Oil & Gas Compressors: Deployed in pipeline stations, it detects radial vibration anomalies in centrifugal compressors, ensuring compliance with ISO safety standards and extending equipment lifespan .
Industrial Pump Diagnostics: Integrated into water treatment systems, the EPRO PR6423/016-011 identifies cavitation risks or bearing defects, optimizing operational efficiency .
