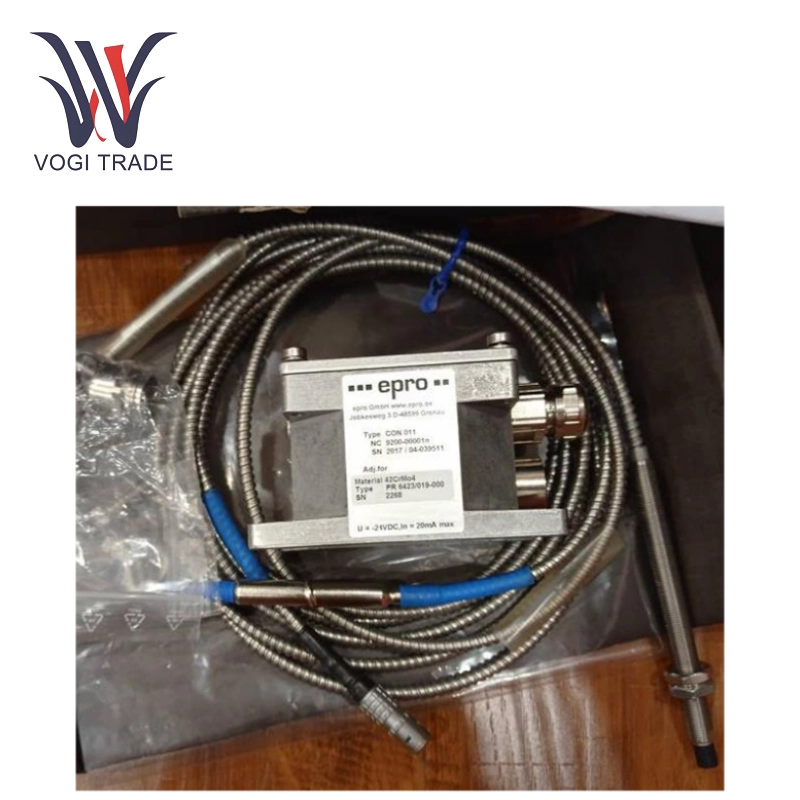

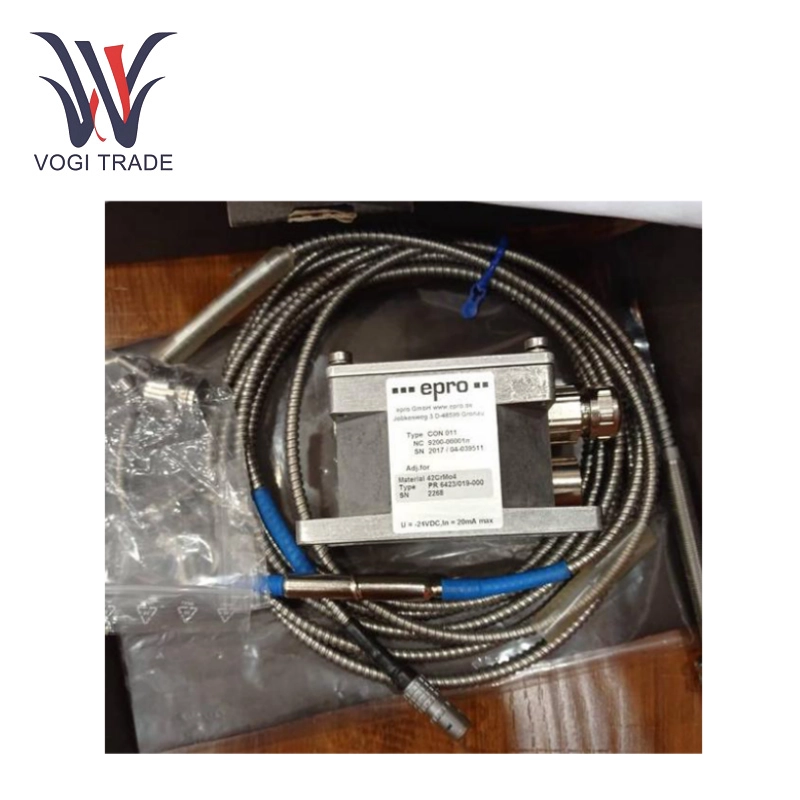

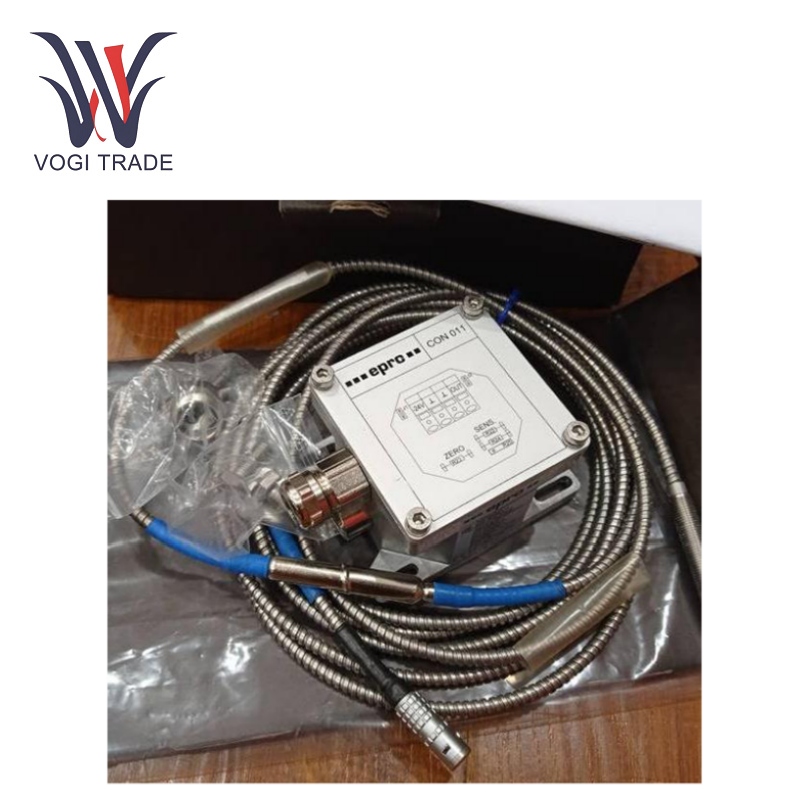

Brand: EPRO Description: 8mm Eddy Current Sensor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen The EPRO PR6423/019-030 is an industrial eddy current sensor for precision vibration and displacement monitoring, compliant with API 670 standards and IP67-rated for harsh environments.
|
Manufacture |
EPRO |
|
Model Number |
PR6423/019-030 |
|
Catalog |
/ |
|
Country Of Origin |
Germany |
|
HS CODE |
9031809090 |
|
Dimension |
8M |
|
Packing Dimension |
27*27*10CM |
|
Weight |
0.15kg |
Technical Parameters
Thread length:115mm
Linear Measurement Range: 2 mm (80 mils)
Initial Air Gap: 0.5 mm (20 mils)
Minimum Shaft Diameter: 25 mm (0.79”)
Target Material (Ferromagnetic Steel) :42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Protection Class: IP66, IEC 60529
Operating Temperature Range: Sensor incl. 1m Cable: -35 to +180°C (-31 to 356°F) Cable & Connector: -35 to +150°C (-31 to 302°F)
Material: Sensor Tip (PEEK Polyether Ether Ketone), Case (Stainless Steel) Cable (PTFE Polytetrafluoroethylene), Connector (Brass, nickel-plated)
Application Environment
Summary: The EPRO PR6423/019-030 is an advanced eddy current sensor known for its high performance in demanding applications.
Turbomachinery & Heavy Machinery: Best suited in critical applications for steam turbines, gas turbines, and centrifugal compressors, where non-contact surveillance of shaft displacement, vibration, and eccentricity is required. Internally, it is built to withstand constant mechanical stress and reliably perform.
Use in extreme conditions: The sensor works in conditions from -35°C to +180°C (inside the body of the sensor), at high humidity, oil contamination and electromagnetic interference. Built rugged for harsh environment applications such as power plants, oil refineries and heavy manufacturing facilities with an IP66 protection rating.
Compatible Systems
The EPRO PR6423/019-030 seamlessly integrates with industry-standard monitoring solutions:
Condition Monitoring Platforms: Works with Emerson’s AMS Suite and third-party systems like MMS 3000 series for dynamic balancing and fault diagnostics. The CON021 converter ensures stable signal transmission, reducing downtime risks.
Adapter Interfaces: Supports LEMO connectors (11.0 mm diameter) or open cable ends, offering flexibility for reverse-mount configurations or direct wiring to control panels.
Typical Use Cases
Power Generation: In steam turbines, the EPRO PR6423/019-030 monitors rotor axial displacement to prevent unplanned shutdowns caused by thermal expansion or bearing failures.
Oil & Gas Compressors: Deployed in pipeline stations, it detects radial vibration anomalies in centrifugal compressors, ensuring compliance with ISO safety standards and extending equipment lifespan.
Water Treatment Systems: Used to monitor pump shaft eccentricity, the EPRO PR6423/019-030 identifies cavitation risks or bearing defects, optimizing efficiency in HVAC and industrial pumping applications.
