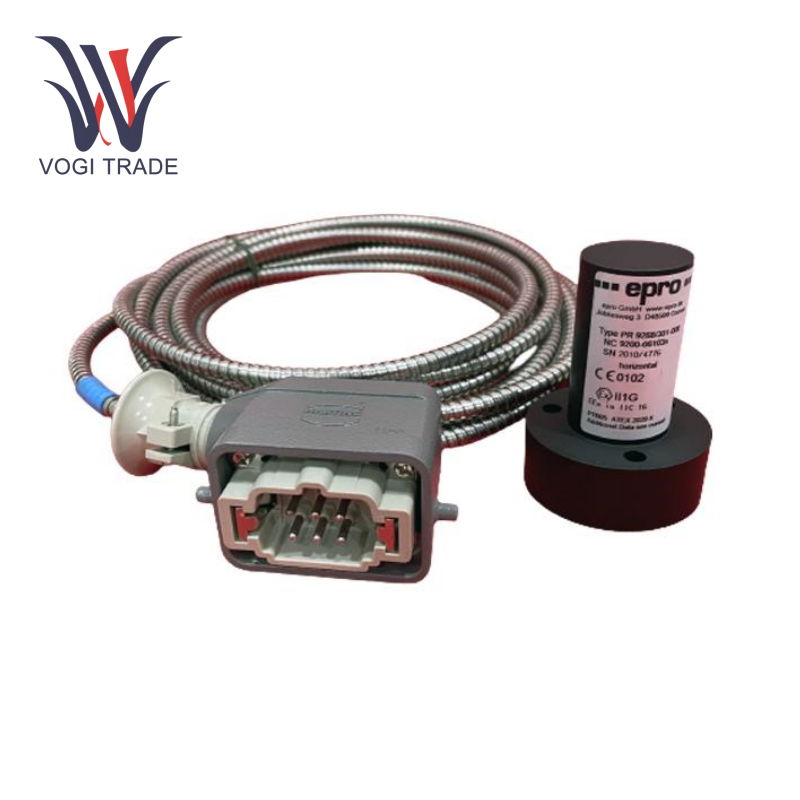

Brand: EPRO Description: Electrodynamic Velocity Sensor Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: ShenZhen EPRO PR9268/302-000 is an electrodynamic absolute vibration sensor designed based on the principle of low-frequency vibration measurement. Its core function is to generate a voltage signal by measuring the mechanical vibration velocity. It is suitable for harsh industrial environments such as high temperature and high humidity.
|
Manufacture |
EPRO |
|
Model Number |
PR9268/302-000 |
|
Country Of Origin |
Germany |
|
HS CODE |
8414909090 |
|
Dimension |
25cm*25cm*6cm |
|
Packing Dimension |
27cm*27cm*10cm |
|
Weight |
1.2kg |
Technical Parameters
Measurement performance
Frequency range: 10 Hz ~ 1000 Hz (standard mode) or 4 Hz ~ 1000 Hz (extended low frequency mode)
Amplitude range: Peak-to-peak maximum ±2000 μm (corresponding to ±1500 μm linear range), some models support ±3000 μm
Standard sensitivity: 28.5 mV/mm/s (load 100 kΩ, 50 Hz condition)
Optional sensitivity: 16.7 mV/mm/s or 22.0 mV/mm/s, adjusted through the connector.
Linearity error: ≤±3%
Operating temperature: -20°C to +100°C
Mechanical and electrical characteristics
Cable configuration: standard 3-meter armored cable (optional 5 meters, 8 meters, 10 meters), with optional Harting plug or bare wire connection at the end.
Output signal: analog voltage signal (proportional to vibration velocity), compatible with EPRO MMS 3000/6000 monitoring system.
Working principle
EPRO PR9268/302-000 adopts the principle of electromagnetic induction:
Internal structure: EPRO PR9268/302-000 consists of a seismic block, a measuring coil supported by a spring sheet, and a permanent magnet. When the housing vibrates with the device, the coil generates relative motion in the magnetic field, generating a voltage signal proportional to the vibration speed.
Signal processing: The output signal is transmitted to the monitoring system through the Harting connector, supporting dual sensitivity modes (16.7 mV/mm/s or 22.0 mV/mm/s) to adapt to different working conditions.
Installation and maintenance
Installation requirements
Calibration: 42CrMo4 steel has been calibrated before leaving the factory. Only the air gap needs to be adjusted to the preset value (about 1.5 mm) during installation.
Directional restrictions: EPRO PR9268/302-000 must be installed strictly in vertical or horizontal directions, with a deviation of ≤±10° (PR9268/30x series).
Maintenance recommendations
Regularly check the cable connection and shield grounding to avoid signal interference.
Verify the calibration accuracy every 3 months. It is recommended to shorten the cycle in high temperature environments.
We also supply other models of this products:PR9268/301-000,PR9268/302-100.They are the same in specifications, features and application range. The difference is the total length of armored cable or whether there is a plug on the end of the cable,refer to the table for details.
|
Module Number |
Armored cable Length |
|
PR9268/301-000 |
5m |
|
PR9268/302-000 |
8m |
|
PR9268/302-100 |
8m(Bare wire at end) |
