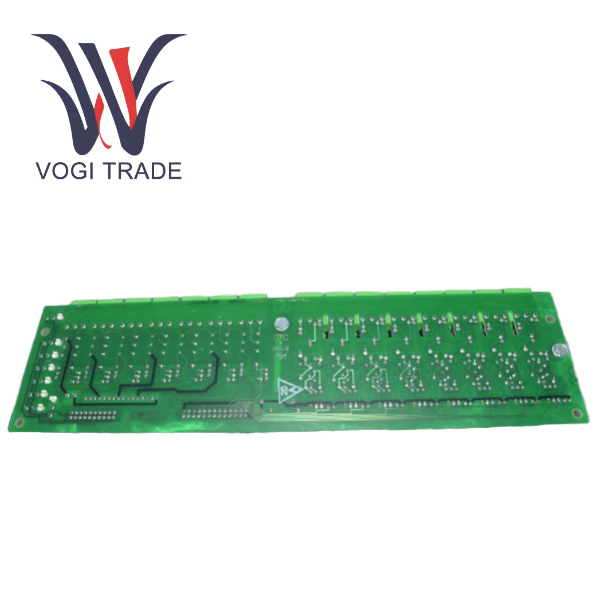

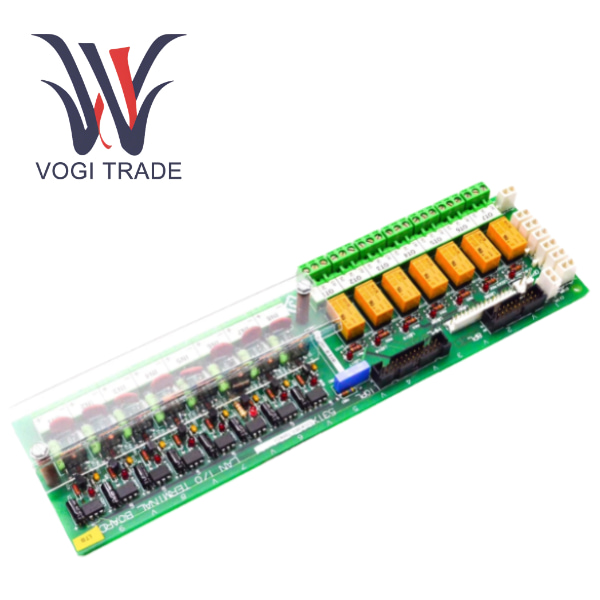

Brand: GE Description: LAN TERMINAL BOARD Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Xiamen GE 531X307LTBAKG1 is a LAN terminal board, part of the G1 group, used as an interface between control devices and external devices (such as contactors, indicators, pushbuttons, and interlocks) in a drive system (or exciter cabinet).
|
Manufacture |
GE |
|
Model Number |
531X307LTBAKG1 |
|
Ordering Number |
531X307LTBAKG1 |
|
Catalog |
LAN TERMINAL BOARD |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
33cmx7cmx4cm |
|
Packing Dimension |
35cmx10cmx7cm |
|
Weight |
0.6kg |
Operating Parameters
|
Parameter Category |
Specifications |
|
Product Model |
531X307LTBAKG1 |
|
Input Channel |
8 channels (IN1 - IN8) |
|
Input signal range |
24–230V AC, 60Hz; 115–230V AC, 50Hz; 24–250V DC |
|
Control input plug |
8 (C11PL – C18PL), 24V DC |
|
Output relay |
7-channels (OT1 – OT7), Form C contacts |
|
Relay contact capacity |
0.6A @ 125V AC; 0.6A @ 110V DC; 2.0A @ 30V DC |
|
Main connectors |
8PL, 10PL, OPTPL, RPL |
|
Compatible systems |
GE Mark series drives and control systems |
Product Features
GE 531X307LTBAKG1 provides eight universal 24-240V AC/DC input channels, which can be directly connected to various on-site sensors and switchgear. This borad integrates seven relay outputs simultaneously for controlling high-power loads such as contactors and indicator lights.
Safely convert external high-voltage signals (up to 240V AC) into 24V DC logic signals recognizable by the drive control board, providing effective electrical isolation to protect the core control system from on-site interference and high-voltage surges.
The 531X307LTBAKG1 belongs to the G1 series. Compared with the G2 version, it is equipped with an additional eight configurable 24V DC control input sockets (C11PL-C18PL) and an 8PL interface that supports AC input signals, achieving more comprehensive functions and stronger compatibility.

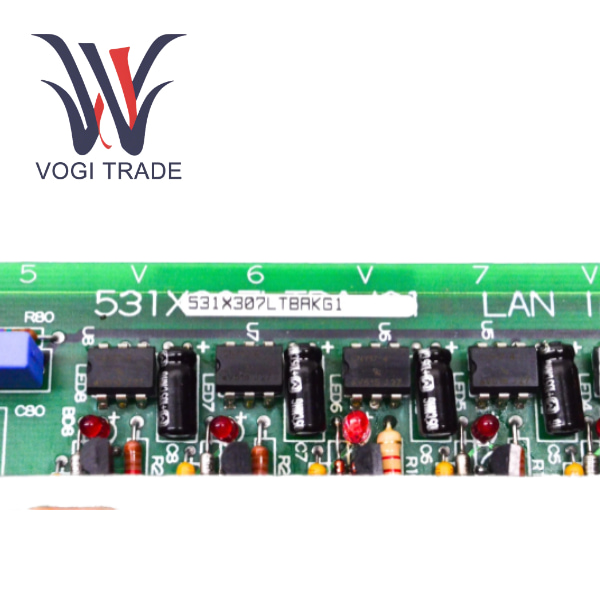

Fifteen on-board LED indicator lights (LED1-LED8 showing input status, LED17-LED23 showing relay status) clearly present the operating status of the equipment, greatly facilitating on-site debugging and fault detection.
Application Range
The GE 531X307LTBAKG1 is commonly found in industrial drive systems. Connect the control panel (emergency stop, start button, indicator light) to the drive controller.
GE lan terminal board serves as an interface module between PLC and field actuators (such as contactors and relays) in the control of automated production lines.
It serves as an original factory replacement component during the maintenance and upgrade of the existing GE drive system to ensure system compatibility and reliability.
Comparison between G1 and G2 versions
|
Characteristic |
G1 |
G2 |
|
Configurable control inputs (C11PL-C18PL) |
⭕ |
× |
|
8PL Connector |
⭕ |
× |
|
AC input signal support |
Support |
Only supports DC input signal |
|
Applicability |
Comprehensive features for applications requiring flexible configuration and AC signals |
Suitable for simplified applications with pure DC signal input |
