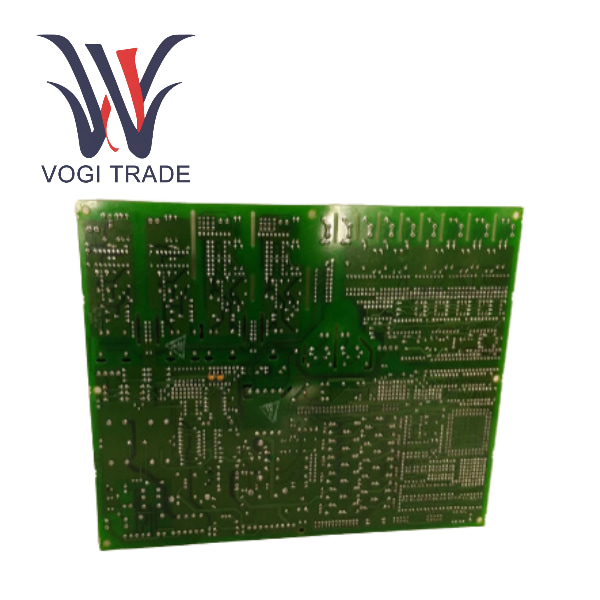

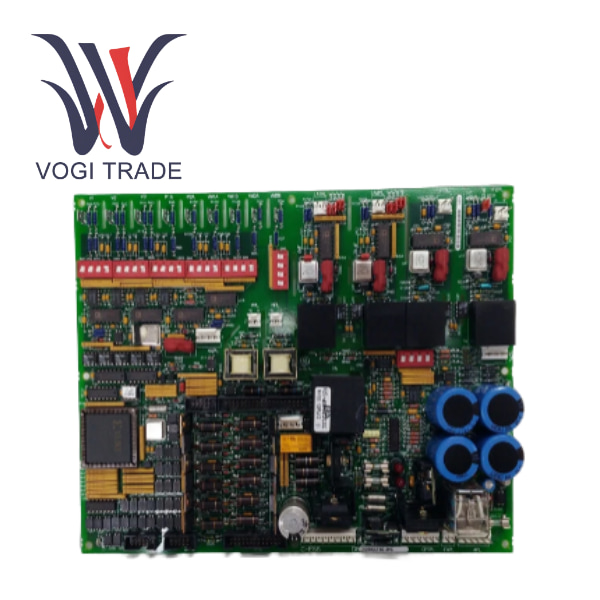

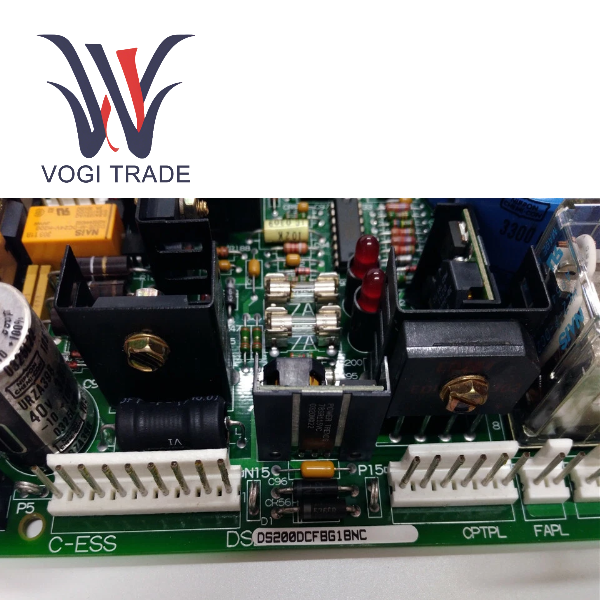

Brand: GE Description: POWER SUPPLY BOARD Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: Xiamen GE DS200DCFBG1BNC is a power supply and feedback control board for GE industrial drive systems (such as the DC2000 and EX2000).
|
Manufacture |
GE |
|
Model Number |
DS200DCFBG1BNC |
|
Ordering Number |
DS200DCFBG1BNC |
|
Catalog |
Mark V |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
35cm*35cm*5cm |
|
Packing Dimension |
37cm*37cm*7cm |
|
Weight |
1.5kg |
Product Overview
The DS200DCFBG1BNC is a core power and feedback processing module for General Electric's (GE) industrial control systems, specifically designed for the DC2000 and EX2000 series drives. This board card integrates multi-channel power output, signal acquisition and conversion, equipment drive and system protection functions, and is a key component to ensure the stable operation of industrial drive systems. The G1BNC version has significantly enhanced compatibility by optimizing hardware and functions, making it more suitable for harsh industrial environments.
Core Functions
High-efficiency multi-channel power management
Convert the input 38V AC or 24V DC to the regulated +5V, ±15V and ±24V DC voltages required by the control system, and provide 115V AC power for the chassis fan.
All power outputs are equipped with overcurrent and short-circuit protection (through fuses FU1-FU3) to ensure the safety of system power supply.
Precise signal monitoring and feedback
Real-time acquisition of voltage-controlled oscillator (VCO) circuit
Ac line voltage/current signal
Dc bridge voltage and motor voltage
Motor armature and excitation current (through millivolt-level shunt signals)
The analog signal is converted into a frequency signal and then transmitted to the main control board (SDCC/LDCC) to achieve closed-loop control and fault diagnosis.
Flexible hardware configuration
The on-board configurable jumpers (JP) and DIP switches (SW) support adjusting the signal range and input mode according to the driver model and sensor type.
The BNC version adopts optimized jumper logic and circuit layout to enhance anti-interference capability and long-term stability.
Integrated drive and control interface
The built-in SCR gate pulse drive circuit directly controls the armature and excitation thyristor triggering.
Equipped with a relay interface to drive the main contactor (MA/MD), it simplifies external wiring.
Technical Parameters
|
Item |
Description |
|
Model Number |
DS200DCFBG1BNC |
|
Input Power |
38V AC (±10%) or 24V DC |
|
Output Power |
+5V/4A, ±15V/0.8A, ±24V, 115V AC |
|
Signal Feedback |
Support VCO frequency signal output (0-500kHz) and analog voltage signal |
|
Protection Mechanism |
Fuses FU1 (115V AC), FU2/FU3 (±24V DC) |
|
Compatible systems |
DC2000, EX2000, CB2000, ME2000, GF2000, etc. |
The GEDS200DCFBG1BNC is mainly applied in industrial DC drive systems for rolling mills, mine hoists and large conveyors.
Generator excitation control (EX2000) performs exceptionally well in precisely regulating the output voltage and power of generators
The power control of the automated production line uses PLC to achieve the functions of motor start and stop, speed regulation and protection
