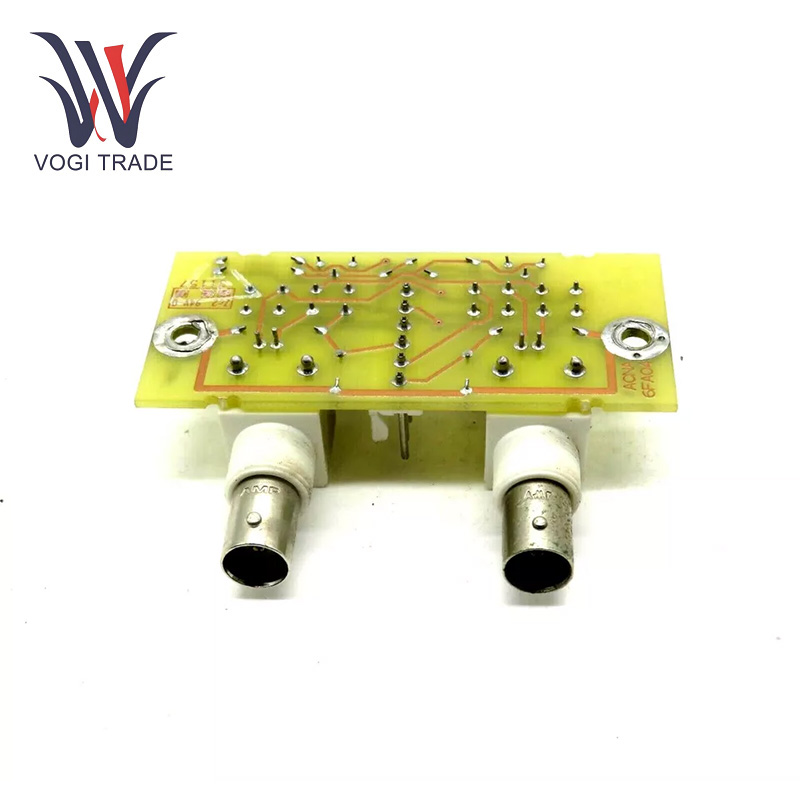

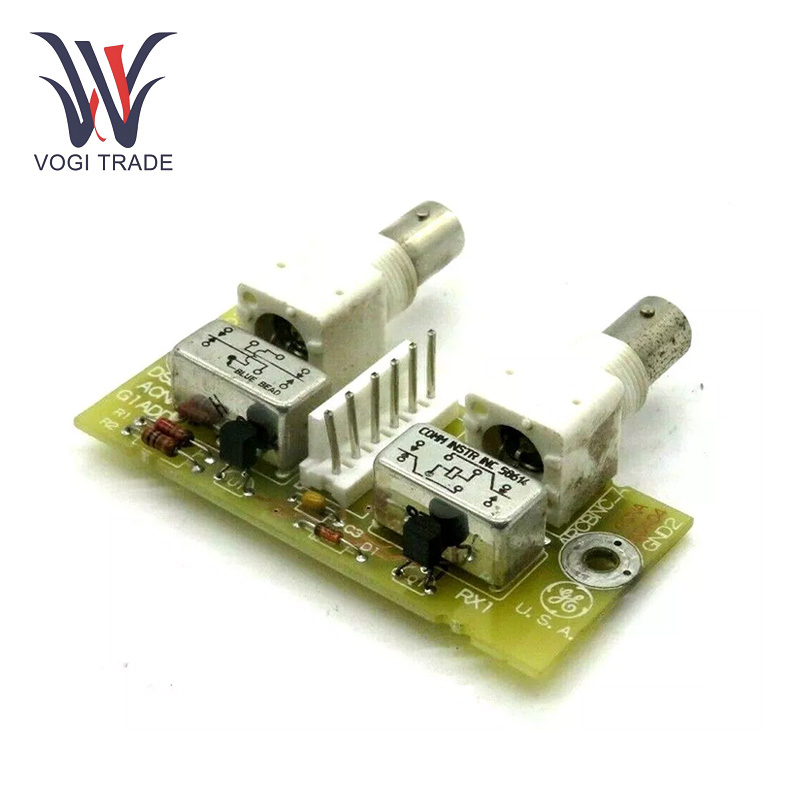

Brand: GE Description: Arcnet Connection Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: ShenZhen GE DS200ACNAG1ADD offers unparalleled performance in communication and data management, which supports fast data communication between system components, essential for effective management and control of turbines.
|
Manufacture |
GE |
|
Model Number |
DS200ACNAG1ADD |
|
Ordering Number |
DS200ACNAG1ADD |
|
Catalog |
- |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
16cm*16cm*12cm |
|
Packing Dimension |
18cm*18cm*14cm |
|
Weight |
1kg |
Technical Parameter
Operating Temperature Range: 0°C to 60°C.
Storage Temperature Range: -40°C to 85°C.
Humidity: Works in 5% to 95% non-condensing
LED Indicators: GE DS200ACNAG1ADD is equipped with LED indicators to assist with diagnostics and real-time status monitoring.
Compliance: Meets international safety and regulatory standards such as UL, CE, and IEC, ensuring it can be used in a wide range of global applications.
Functional Characteristics
Network Connectivity: GE DS200ACNAG1ADD delivers an ARCNET network connection which allows communication between different elements of the Mark V system.
Signal Transmission: It enables the transmission of ARCNET signals through coaxial cables, ensuring effective communication among system components.
Relay Control:GE DS200ACNAG1ADD employs relays for directing signals, which aids in directing data flows in the network.
Troubleshooting
Connection Issues: If communication failure happens, check the coaxial cable connection again on the BNC plugs, pin terminal connector. Make sure the cables are fit in the right way and not broken.
Component Failure: If a specific part on the board is suspected -a malfunctioning resistor, capacitor, diode, or relay, for example, professional equipment may be required to test the resistance, capacitance, and conductivity of these components to ensure they are within the desired range.
Software Configuration: Verify that the software configuration for the Mark V system is set up correctly, including any necessary ARCNET settings, and that it is recognized and configured appropriately in the system.
Application Areas
Gas Turbine Control: GE DS200ACNAG1ADD is responsible for reliable communication and control between different system components, ensuring efficient operation and monitoring of gas turbines.
Power Plant Control：GE DS200ACNAG1ADD enables control and communication of systems and equipment in power plants like steam turbines, generators, and control devices to ensure a stable power generation process.
Control of Oil and Gas Production: For the oil and gas industry, it can be used within the control systems of production equipment, such as pumps, compressors, and valves, to monitor and control production processes to ensure safe and efficient operations.
Industrial Automation: GE DS200ACNAG1ADD is extensively used in manufacturing processes, chemical plants, water treatment plants, as well as other industrial automation sectors that demand reliable network communication and control.
