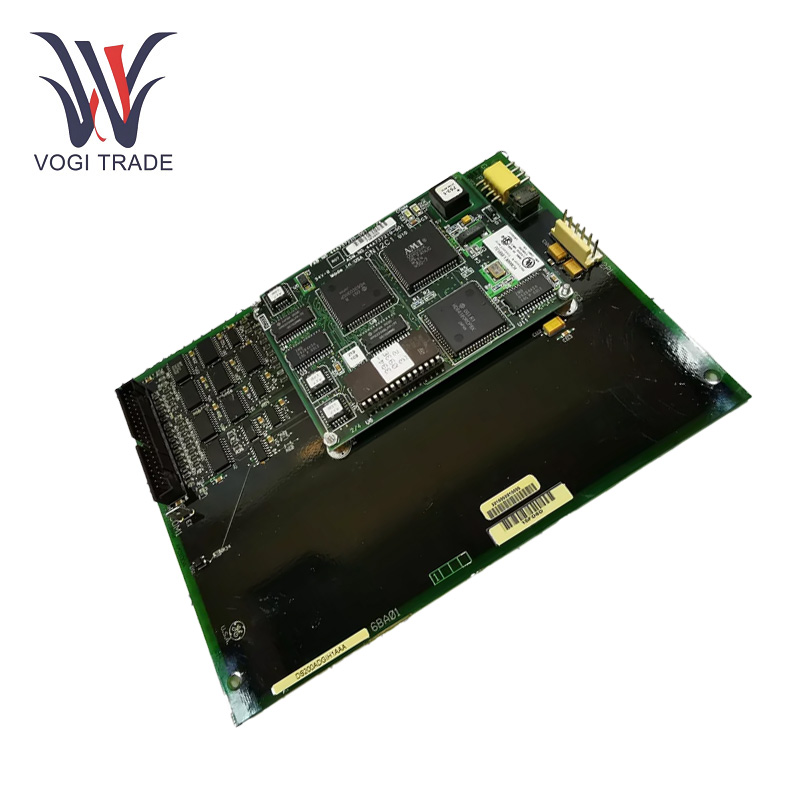

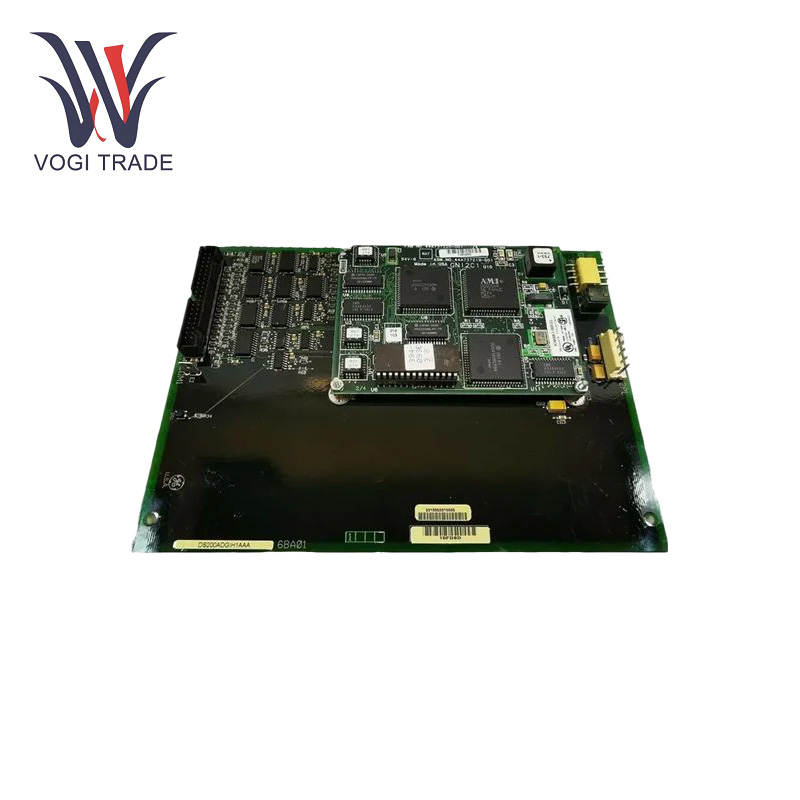

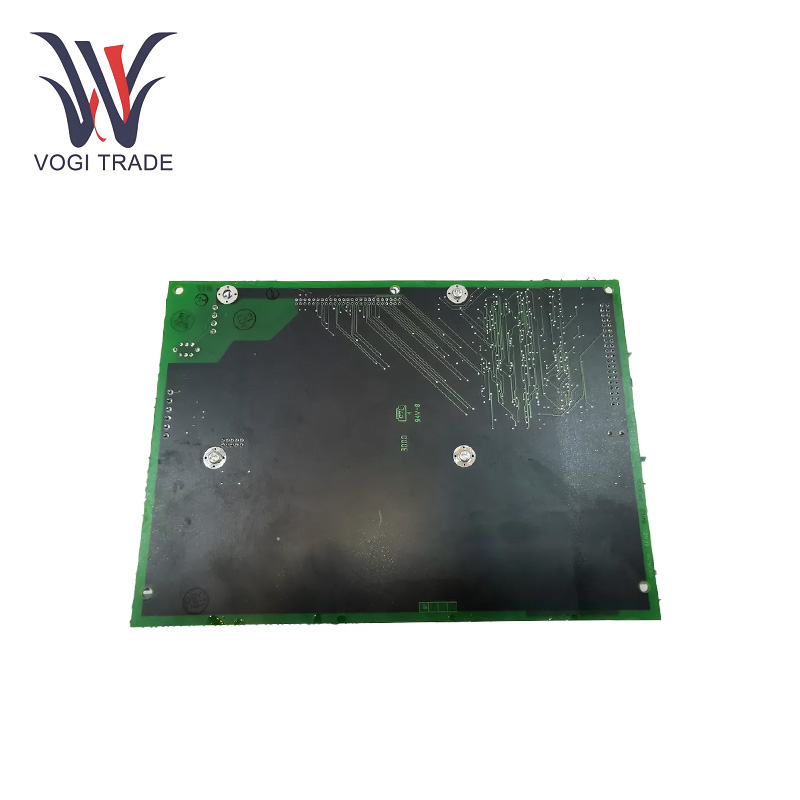

GE DS200ADGIH1AAA

Technical Parameter

Operating Temperature: 0°C to 60°C.

Storage Temperature: -40°C to 85°C .

Power Requirements: 5V to 24V.

Connectors: Has a 40-pin connector, 60 jumpers, and a 6-pin connector, and also has multiple test points.

Interface Functions: Provides multiple input/output interfaces for communication with other control modules or devices.

Functional Characteristics

Multiple Communication Interface: GE DS200ADGIH1AAA provides a variety of input and output interfaces that can be used to connect sensors, switches, actuators and other peripheral devices to achieve signal transmission and device control.

Signal Processing: GE DS200ADGIH1AAA is capable of processing various types of signals, including both analog and digital signals. The conversion of analog signals from various sensors and field devices into digital signals that are recognized and processed by the control system, and vice versa, is accurately achieved.

Communication Protocol: GE DS200ADGIH1AAA employs a proprietary GE communication protocol, enabling smooth communication with GE's control systems and ensuring efficient exchange and control of data within the system.

Self-Diagnostic Function: It has a certain self-diagnosis and fault detection function, which can monitor the running status of the board in real time and report abnormalities in time, so as to quickly identify the problem and find a solution.

Operation Methods

Installation: Place GE DS200ADGIH1AAA in your control system. Check that module is seated correctly and all cables are connected. When installing the graphics card, attention should be paid to electrostatic protection, and anti-static wrist strap should be worn.

Configuration: Set up the module using the software or interface of the system once installed. Input and output channel parameters, analog signal calibration, communication parameters, etc.

Maintenance: Check GE DS200ADGIH1AAA and the devices connected to it and the cables normally. Regularly check the module running status and test if any abnormal signals and alarms.

Application Areas

Power Generation: It is applied in power plant generator and turbine control systems, being used pair with the main controller to achieve a more accurate monitoring and control functions, ensuring the stable operation of power generation equipment and energy conversion efficiency.

Industrial Automation:GE DS200ADGIH1AAA is a component in various industrial automation systems, which is used to connect sensors, actuators and other control equipment, and realizes the corresponding acquisition, signal processing and control functions in real time, improving the automation level and production efficiency of the production line.

In Other Industries: It also applies to other industrial industries that require analog signal Testing and control, such as chemical manufacturing, water treatment, and the production process. It can also be used to control various production equipment and processes.
