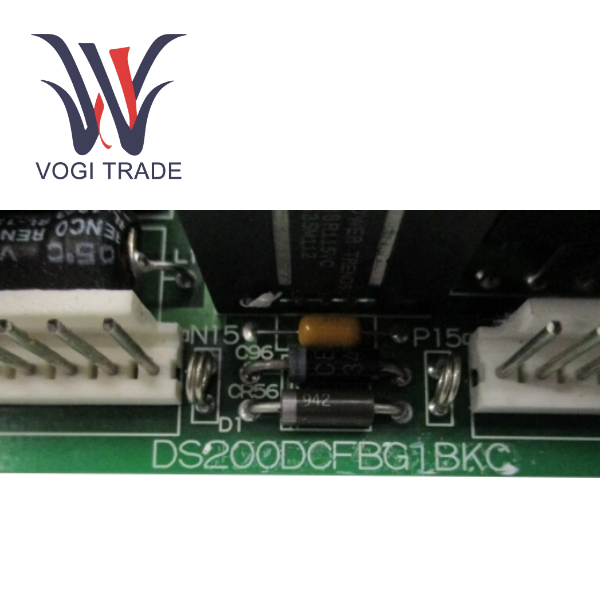

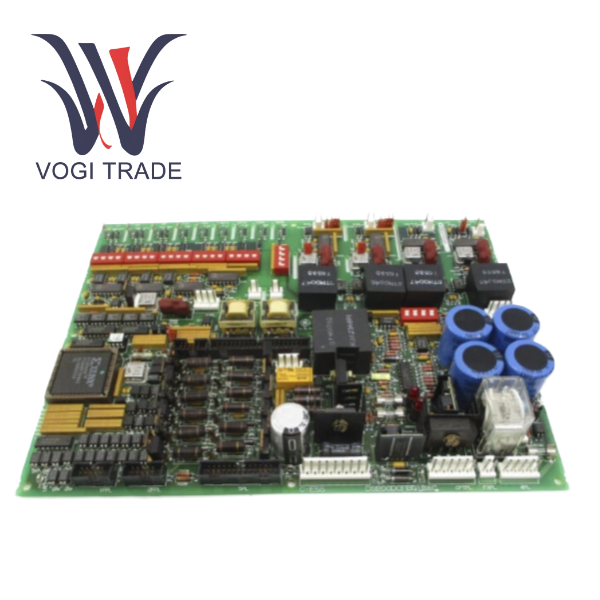

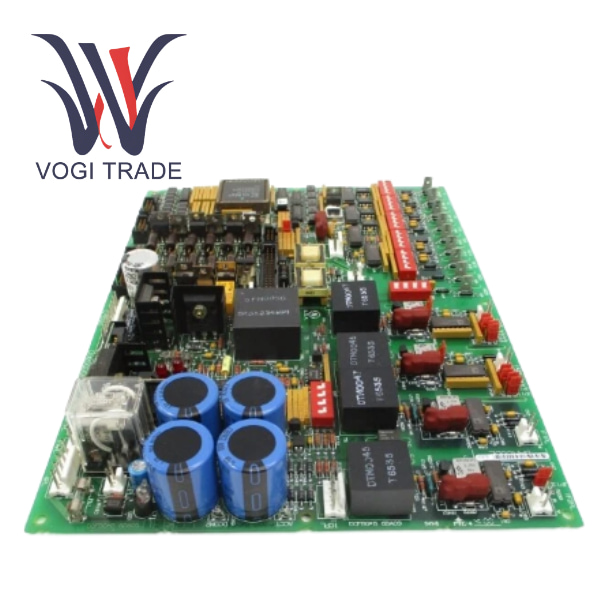

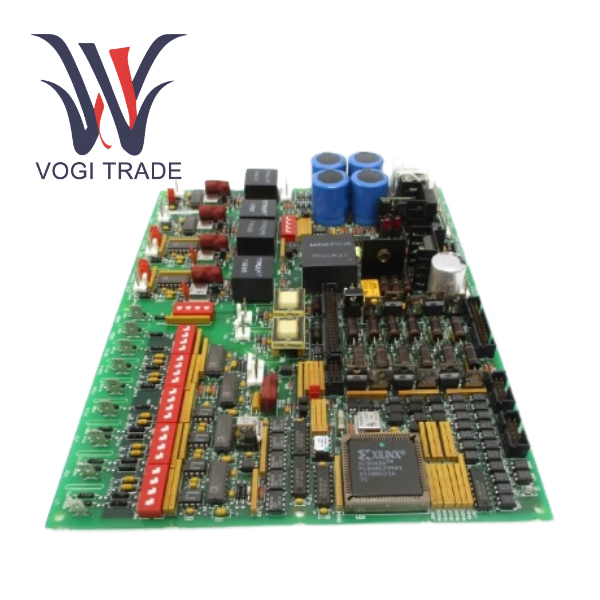

Brand: GE Description: POWER SUPPLY BOARD Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: Xiamen GEThe DS200DCFBG1BKC is a power supply and feedback control board for GE industrial drive systems (such as the DC2000 and EX2000).
|
Manufacture |
GE |
|
Model Number |
DS200DCFBG1BKC |
|
Ordering Number |
DS200DCFBG1BKC |
|
Catalog |
Mark V |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
35cm*35cm*5cm |
|
Packing Dimension |
37cm*37cm*7cm |
|
Weight |
1.5kg |
Technical Parameter
|
Item |
Specifications |
|
Product Model |
DS200DCFBG1BKC |
|
Core Features |
Multi-channel power generation, signal feedback monitoring, SCR trigger drive, contactor control |
|
Input power |
38V AC (±10%) or 24V DC |
|
Main output power |
+5V/4A, ±15V/0.8A, ±24V DC, 115V AC (fan) |
|
Signal feedback |
Monitor AC line voltage/current, DC bridge voltage, motor voltage, shunt current, etc. through VCO circuit |
|
Configurability |
13 jumpers (JP), 7 DIP switches (SW) |
|
Key upgrades |
JP13 jumper (only for BKC and above versions) is used for magnetic field power supply and multi-bridge parallel scaling |
|
Compatible systems |
GE DC2000, CB2000, EX2000, FC2000, GF2000, ME2000, AC2000 IGBT |
Functional Characteristics
The GE DS200DCFBG1BKC has a powerful power output capability and provides multiple regulated power supplies, including +5V/4A, ±15V/0.8A and ±24V DC power supplies, to power the entire control system.
The performance of GE board in precision signal processing is also excellent. The board is equipped with a multi-channel voltage-controlled oscillator (VCO) circuit and an analog signal processing circuit, which can precisely monitor the amplitude and phase of AC line voltage, DC bridge voltage, motor voltage, and millivolt-level current signals output by the shunt.
Thirteen on-board configurable jumpers (JP) and seven DIP switches (SW) enable users to precisely configure the signal input type (direct shunt or external VCO), VCO circuit activation status, and voltage/current feedback range according to specific drive models, chassis sizes, and sensor types.
Product Overview
DS200DCFBG1BKC is a power and feedback control board for General Electric's industrial drive systems, such as DC2000 and EX2000. This board card has two core functions:
The POWER SUPPLY BOARD has the function of multi-channel power generation and distribution. Convert and regulate the input 38V AC or 24V DC into various control-level power supplies (+5V, ±15V and ±24V DC) required by the system, and provide 115V AC power for the chassis fan.
GE's comprehensive signal monitoring and feedback function is also applied on this board. Through the on-board voltage-controlled oscillator (VCO) circuit, key voltage and current signals (such as armature voltage/current, AC line voltage/current and motor voltage) are converted into frequency signals and transmitted to the upper-level control board (SDCC/LDCC) to achieve system monitoring, protection and trigger control.
Integrated Drive and Protection
Includes thyristor (SCR) gate trigger pulse control circuitry for driving the armature and field circuit thyristors.
DS200DCFBG1B Provides contactor drive circuitry for controlling the main contactor (MA) and motor contactor (MD). Equipped with comprehensive **fuse protection** (FU1, FU2, FU3) and corresponding LED/neon lamp fault indication.
