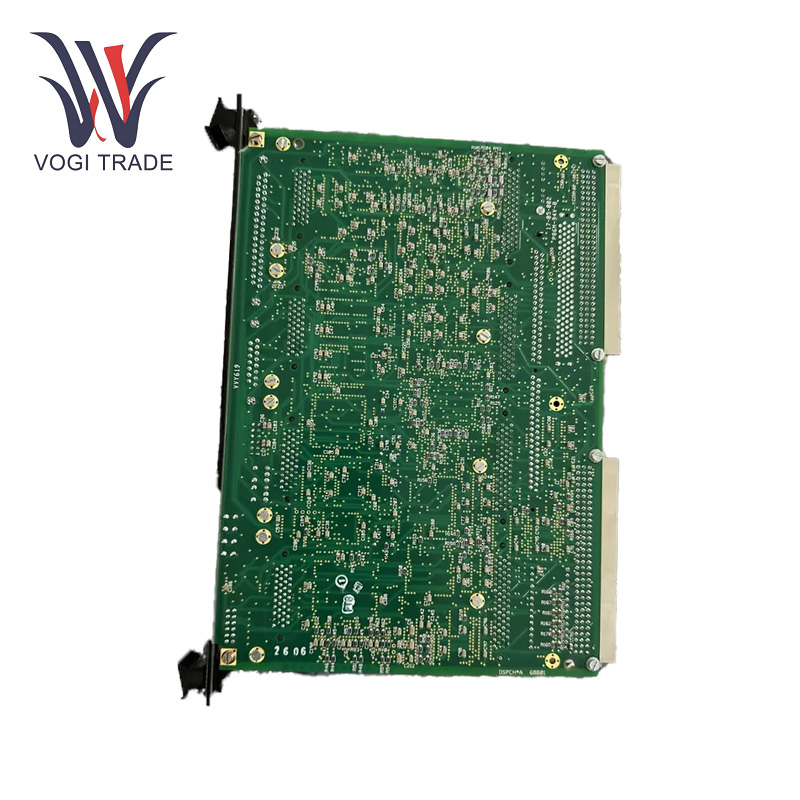

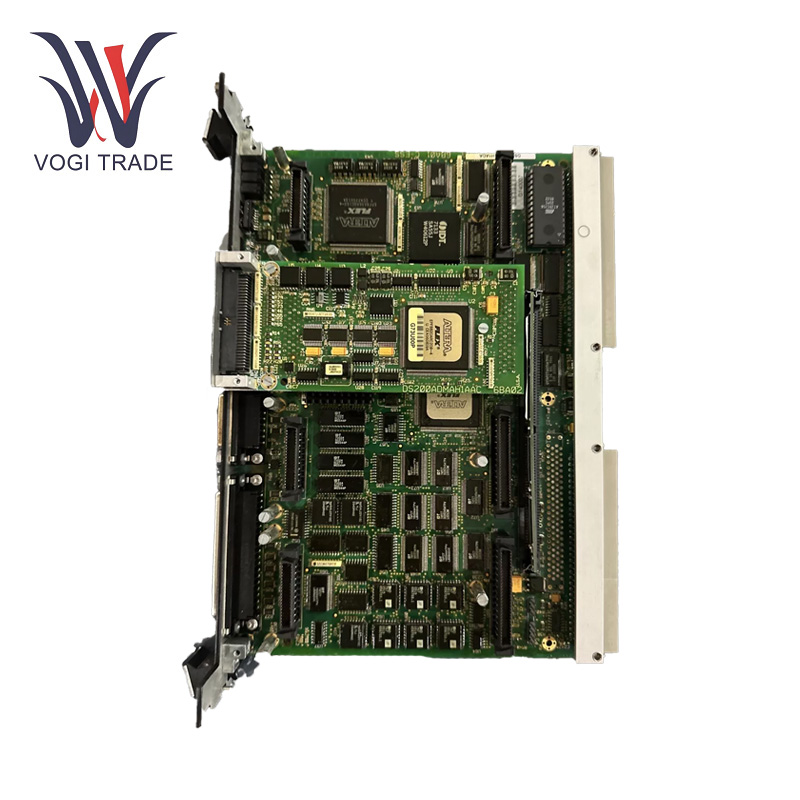

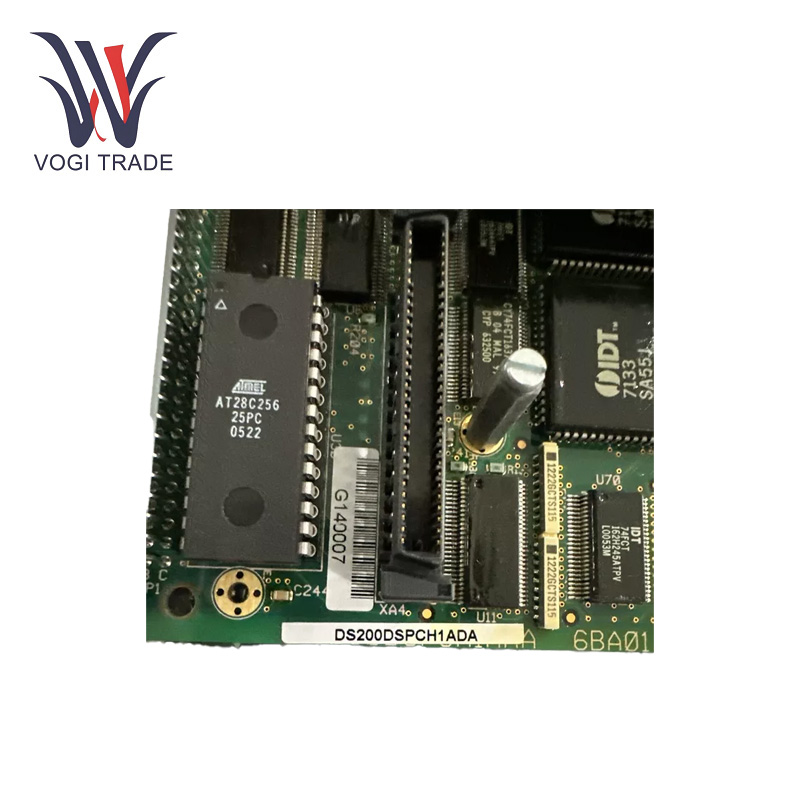

GE DS200DSPCH1ADA

Operating Parameters

Input Voltage: 24V DC

Standard Operating Temperature: -20°C to 60°C

Extended Operating Temperature: -40°C to 85°C

Protection Level:Ingress Protection Rating: IP20

Processor Type: High-performance Digital Signal Processor

Communication Interfaces: Supports Ethernet, RS-485, and other protocols

Output Power: 25W

Product Features

High - Performance Digital Signal Processing: The GE DS200DSPCH1ADA is designed to perform complex digital signal processing algorithms. For instance, it can analyze, filter, and transform different signal types. These processing are essential for overseeing and controlling the operations of the turbines.

Robust Security Mechanisms: GE DS200DSPCH1ADA has robust security mechanisms that safeguard the industrial processes it's employed in. These algorithms are able to dynamically modify settings in response to input signals, enabling better performance, efficiency, and safety of the turbines.

Multiple Communication Interfaces: The board comes with multiple communication interfaces for easy integration with other systems in an industrial setup. These interfaces enable communication via common protocols, permitting data exchange with external control systems, monitoring devices, and actuators.

Installation

Electrical Connection: Similar to any electrical installation, before connecting the electrical wires, make sure that all power sources to the system are off to prevent electric shock or damage to the board. Two backplane are placed on the rear edge of the board.Also connect any necessary signal cables to the input and output terminals, ensuring that the correct pin - outs match.

Application range

Power Generation: The GE DS200DSPCH1ADA is used in power generation, particularly in steam and gas turbines, to control and monitor the turbine operations. It assists in maximizing power generation efficiency, controlling the turbines' speed, and ensuring stable power generation.

Oil and gas: In the oil and gas industry, it is possible to apply it in pumping stations, refineries, and gas processing plants. GE DS200DSPCH1ADA does this by controlling how fast and how effectively turbines will spin in compressors, pumps and other equipment connected with these vital industrial operations.

Manufacturing: In manufacturing plants, the board can be used in machinery that requires precise control and monitoring. For example, in large - scale manufacturing equipment that uses turbines for power or motion control, the GE DS200DSPCH1ADA can enhance the equipment's performance and reliability.

Troubleshooting

Power - Related Issues: First of all, check the power supply cables to make sure they are properly connected and not damaged. Check that the power supply is outputting the right voltage. If the voltage is not right, check the power source and any relevant voltage converters.

Communication Failures: In case of communication failures with other systems, make sure the communication cables are connected properly. On the GE DS200DSPCH1ADA and the systems it is connected to, verify the communication settings to ensure they are all consistent. If the problem still exists, it might be something related to software and either the communication drivers or the firmware might need to be updated.

Signal Processing Issues: If the output of the board is giving inaccurate or irregular signal processing results, verify if the input signals coming from the sensor are exhibiting abnormalities. If needed, calibrate the sensors. Verify board's internal settings & algorithms for setting up appropriate processing. When something in the hardware, such as a sub-set is not working, the board can be repaired or replaced.
