GE DS200PCCAG1ADB Brand: GE Description: Power Connect Card Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Xiamen GE DS200PCCAG1ADB is designed to facilitate power conversion, control, and distribution in various industrial systems. Its robust design and reliability make it a key component in managing power for turbine systems and other industrial equipment.
|
Manufacture |
GE |
|
Model Number |
DS200PCCAG1ADB |
|
Ordering Number |
DS200PCCAG1ADB |
|
Catalog |
Mark V |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
19cm x 19cm x 4.5cm |
|
Packing Dimension |
21cm x 21cm x 7cm |
|
Weight |
1.8kg |
Technical Parameter
• 1FPL-6FPL, 1RPL-6RPL: Gate pulse signals output to the SCR bridge
• 5PL: Communicates with the DCFB power supply board, receiving control signals and +24V power supply.
• JP1, JP2: Used to set the attenuation ratio of the DC voltage feedback to match the system voltage.
• WP3, WP4: Used to select whether the buffer capacitor network and the voltage feedback channel are connected to the same node of the power bridge.
DC armature voltage range
240 - 630 V DC (specific value selected via JP1/JP2 jumper)
AC input voltage
≤ 600 V RMS
Applicable framework
C, G frame drivers
Matching power board
DCFB
Buffer circuit
AC and DC buffers
Main connector
Configurable jumpers
Product Details

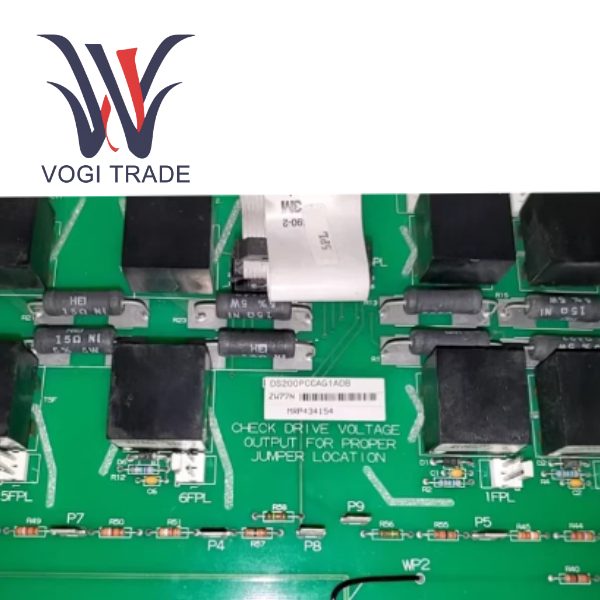

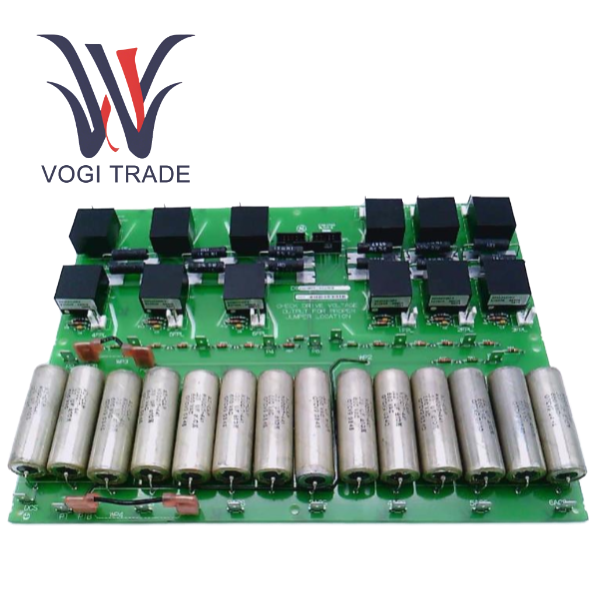

The DS200PCCAG1ADB is a specific model in the DS200PCCA series of power connection cards produced by GE Industrial Control Systems. This card plays a key interface role in the DC drive system, connecting the control circuit of the driver (such as the DCFB power board) with the thyristor (SCR) power bridge.
Its core function is to provide isolated gate drive pulse signals to the thyristor through the on-board pulse transformer, precisely controlling the conduction state of the power bridge. In addition, this card integrates a voltage feedback channel and a buffer circuit, which can monitor the armature voltage and suppress voltage spikes and noise in the circuit to ensure the stable operation of the system.
Scope of Application
If users are supplying analog input devices, connect them with shielded cables to the corresponding marked analog input terminals to prevent electromagnetic interference. Use GE DS200PCCAG1ACB for digital input and output devices, strictly polarizing and tightly connecting them to the appropriate digital I/O ports.
Use the specific GE configuration software With the Graphical User Interface (GUI), users can characterize input/output signals, calibrate analog inputs, or define communication configurations like IP and network protocols. Users can also tailor control algorithms according to their industrial processes.
Application Areas
Heavy machinery
Metal rolling and processing equipment
Mining hoists and conveyors
Paper machinery
Other industrial applications requiring high-performance DC speed control.
