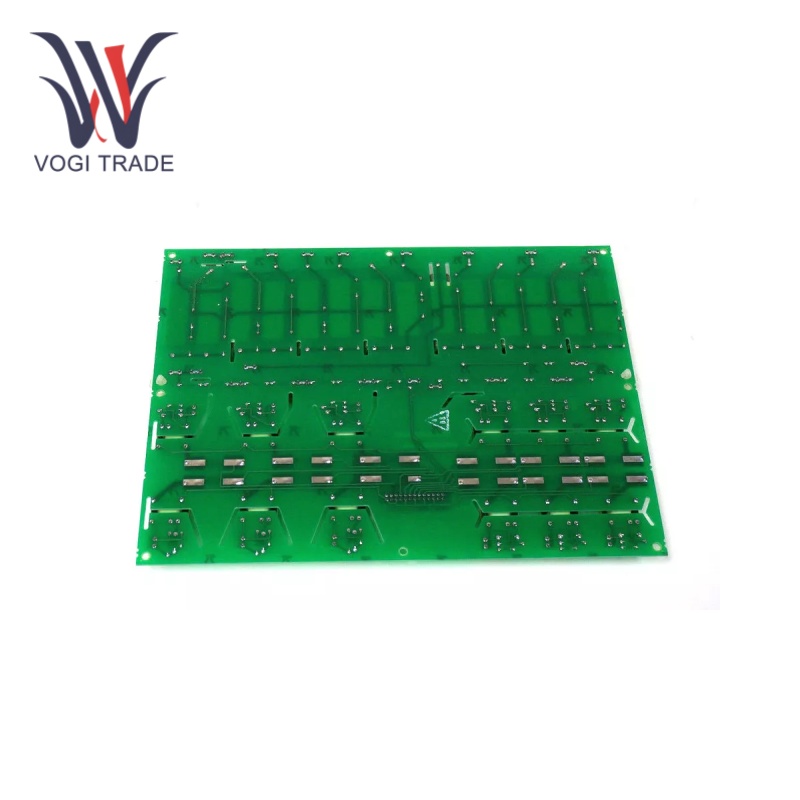

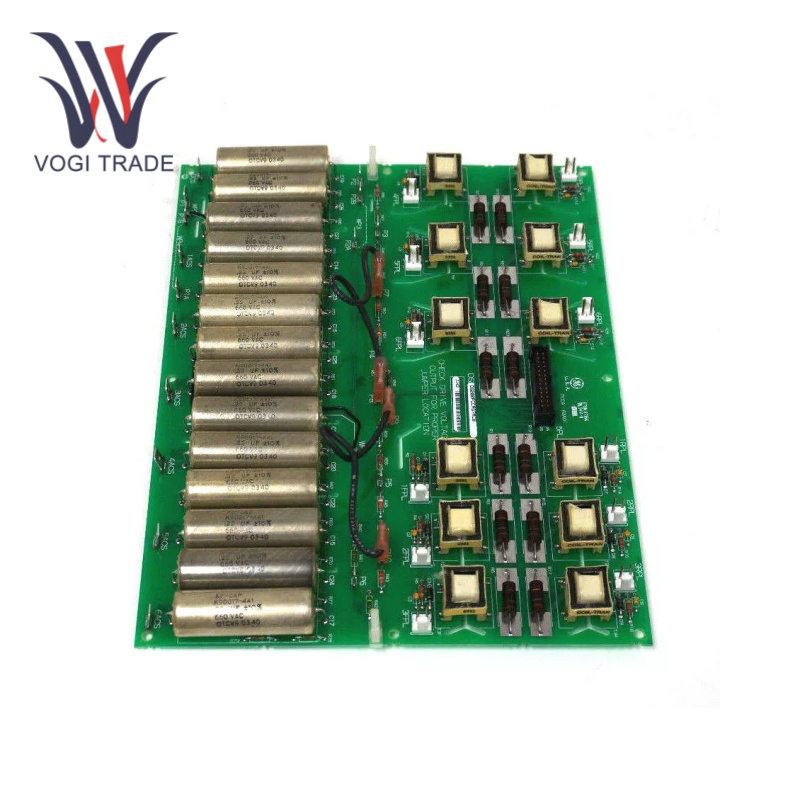

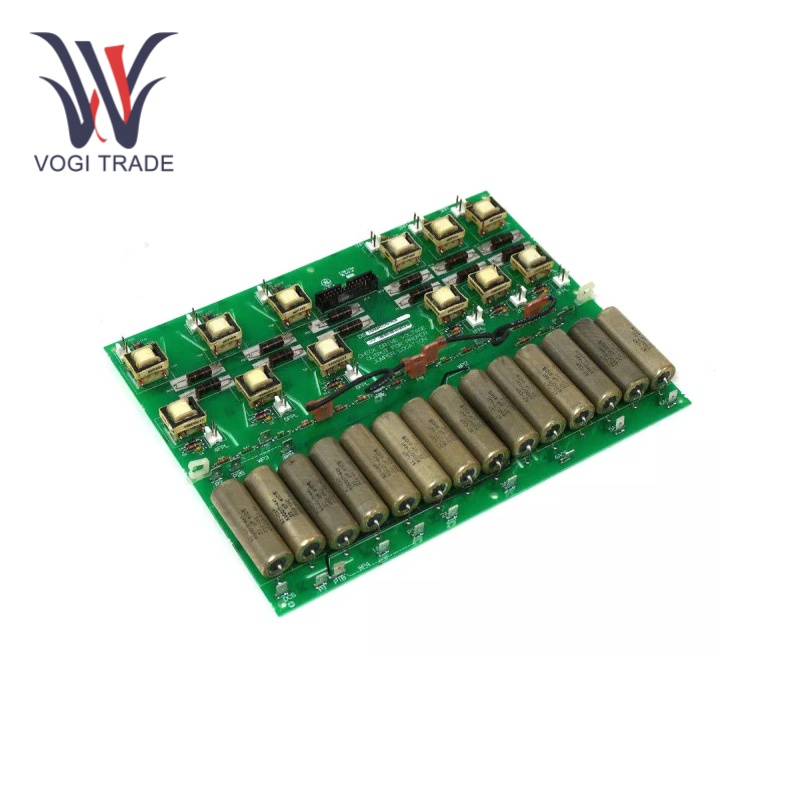

GE DS200PCCAG7ACB

Technical Parameter

Working voltage: <600V rms AC.

Jumpers: 4 in total.

Fuse type: Equipped with line fuse.

Protection circuit: Voltage protection is provided by snubber circuit and multiple pulse transformers.

Temperature: 0°C to 60°C.

Humidity: 5% to 95%, non-condensing.

Function Feature

Advanced Signal Processing： GE DS200PCCAG7ACB employs state  of the art signal processing capabilities. Perfect sense with the ability to perform precision viewing and reproduction of many types of analog and digital signals in complicated industrial apps. It can measure and process signals from sensors used to monitor temperature, pressure, and flow in a chemical plant, for example.

Dynamic I/O Configuration: GE DS200PCCAG7ACB presents a highly dynamic input/output (I/O) configuration. The I/O settings can be configured by users according to their individual needs, meaning that they can interact with various industrial devices. With its wide range of I/O points, it provides extensive control capabilities for industrial automation.

Real - time Clock Function: GE DS200PCCAG7ACB is equipped with a real - time clock, allowing for accurate time stamping of events. This feature is very useful in applications where time - stamping of data is paramount, such as for example monitoring the order of operations in a manufacturing process or for logging historical data for subsequent analysis.

Troubleshooting

Self - diagnostic Function: GE DS200PCCAG7ACB contains a built - in self - diagnostic function. It constantly checks the integrity of its internal components and operations, generating a corresponding error code when an abnormality is detected. When an error occurs, the system logs the error code, which can be accessed using diagnostic software, allowing the technician to quickly determine the cause of the issue.

Isolation of Fault: In the face of fault, the module can isolate the problem area. For instance, if any input channel faces a problem, the module can pinpoint the exact channel causing the issue and thus, avoid the problems caused to the entire system. Therefore, when this isolation is enabled, it is easier to troubleshoot and downtime can not be avoided.

Common problem solving: When GE DS200PCCAG7ACB cannot communicate with other devices, the first step is to check whether the network cable is plugged in and whether the communication settings are correct. Make sure the IPs are configured properly and there should no IP conflicts. If you get incorrect data, check the calibration of the sensors and the input scaling settings in the configuration.

Application Areas

Oil and Gas Industry: GE DS200PCCAG7ACB can be used in oil refineries and gas processing plants to manage the intricate processes involved in refining crude oil and processing natural gas. Users can track and oversee the flow of fluids, adjust pressure in pipelines, and oversee the performance of pumps and valves.

Pharmaceutical manufacturing： when it is needed to exactly control the processes of production (e.g. mixing chemicals, sterilization of equipment, etc.) in pharmaceutical plants, where the pharmaceutical safety standards should be strictly followed, this module can be utilized for controlling such processes, and environmental condition of clean rooms etc.

Mining Industry: GE DS200PCCAG7ACB is used for controlling the extraction of minerals and control of the process in mining operations. It can control the working of mining devices such as crushers, conveyors, and ore separation machines, but also monitor the safety - related parameters like air quality and equipment vibration.
