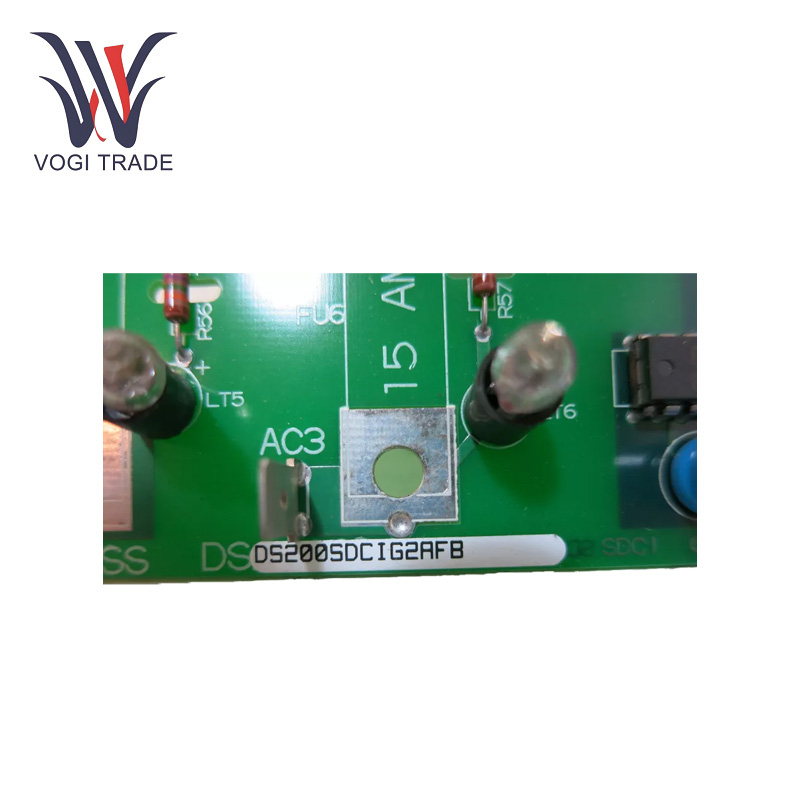

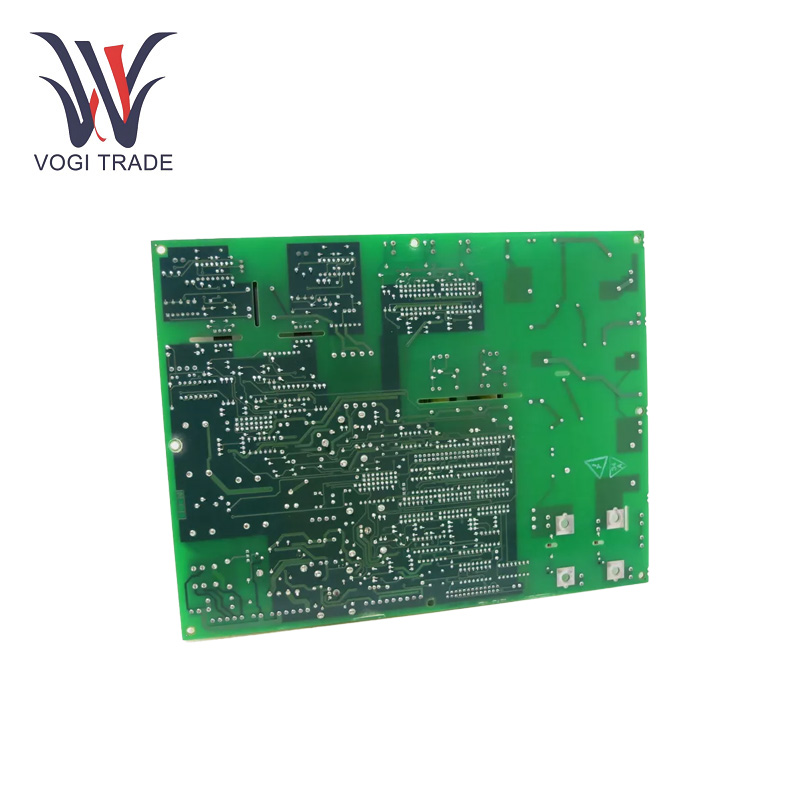

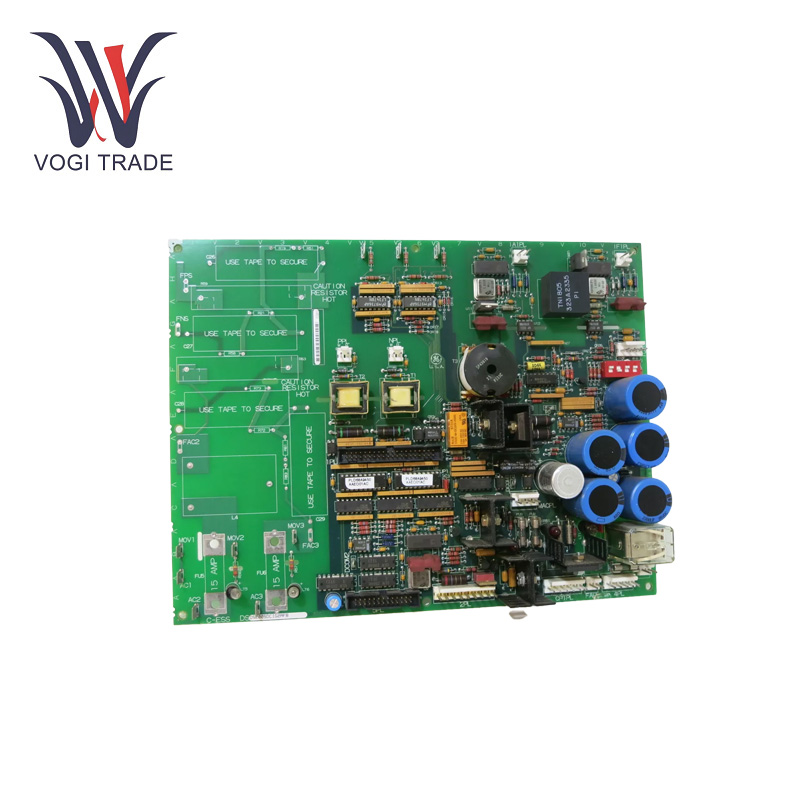

Brand: GE Description:Power Supply and Instrumentation Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: ShenZhen GE DS200SDCIG2AFB supports both analog and digital inputs and outputs, enabling seamless integration with other control systems like GE's Mark V and Mark VI. The low power consumption design enhances energy efficiency while maintaining high operational standards.
|
Manufacture |
GE |
|
Model Number |
DS200SDCIG2AFB |
|
Ordering Number |
DS200SDCIG2AFB |
|
Catalog |
Mark V |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
30cm*30cm*8cm |
|
Packing Dimension |
32cm*32cm*10cm |
|
Weight |
1.5kg |
Technical Parameter
Input Voltage: 600V AC.
Servo Coil Current: Servo coil current selectable between 10 and 120mA via jumper.
Operating Temperature Range: 0°C to 60°C.
Storage Temperature Range: -40°C to 85°C .
Communication Protocols: Supports both digital and analog communication, providing reliable and continuous data exchange.
LED Indicators: Provides visual diagnostic indicators for fault detection and system status monitoring.
Prominent Advantages
High Compatibility：GE DS200SDCIG2AFB is designed to be compatible with DC2000 drives with input voltages of up to 600V AC, making it suitable for a wide range of industrial power supply scenarios and capable of being well integrated into different industrial control systems.
Strong Circuit Function: GE DS200SDCIG2AFB is designed with driver circuit for armature SCR gate, motor field power circuit, external circuit, which can give stable accuracy power supply and control signals to the drive assembly, also ensure the motor and other devices work properly.
Reliable and Durable： With high-quality materials and sophisticated engineering design, GE DS200SDCIG2AFB is tailored to withstand extreme industrial environments like temperature fluctuations, vibration, and electrical signal, ensuring a lower maintenance frequency, less down time, and increased overall production efficiency.
Versatile Function: Use the jumper on the board to choose the current of the servo coil between 10 and 120 mA, this can be adjusted according to the requirements of the servo to help different application scenarios.
Fault Diagnosis
Self-Diagnosis of the System: GE DS200SDCIG2AFB is capable of self-diagnosis and fault detection. It is based on embedded system, can monitor the running status of the board and the whole system all the time, can realize the timely detection of possible fault, and can achieve fault report. The fault information and alarm prompts can be read through the human-machine interface or diagnostic software of the system.
Flexible Configuration:This includes using multimeters, oscilloscopes, and other professional measuring devices to measure and compare the signal on the board. If the signal values deviate significantly from normal, it may also mean that there is a problem with the board signal processing circuit or external connected devices.
Application Fields
Power Generation industry: GE DS200SDCIG2AFB is widely used in power generation industry as a control system for gas turbines and steam turbines. It allows for precise servo control of turbine motors for monitoring position and flow rate of several sensors, providing safety and efficiency for power generation reference equipment.
Industrial Automation: It can be used for precision control and monitoring of servo motors, position sensors, and flow meters in industrial automation production lines, such as those in the automotive manufacturing, mechanical processing, and food processing industries, thereby improving the automation level and production efficiency of the production line.
Petrochemical Industry: GE DS200SDCIG2AFB can be used in the control systems of pumps, compressors, and valves in the petrochemical production process to ensure accurate control and safe operation of key equipment, and enhance the stability and reliability of the production process.
