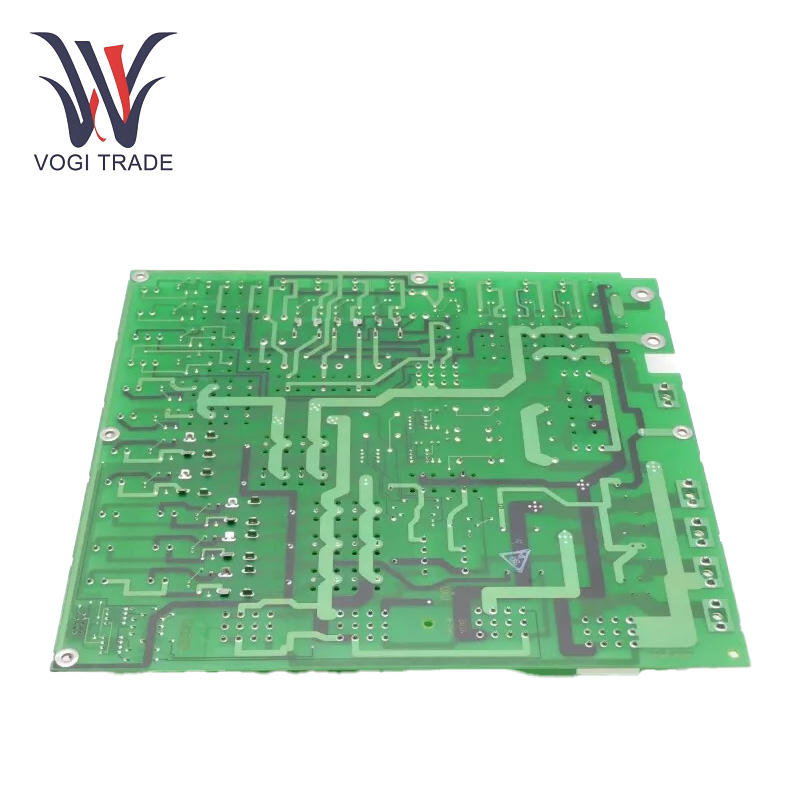

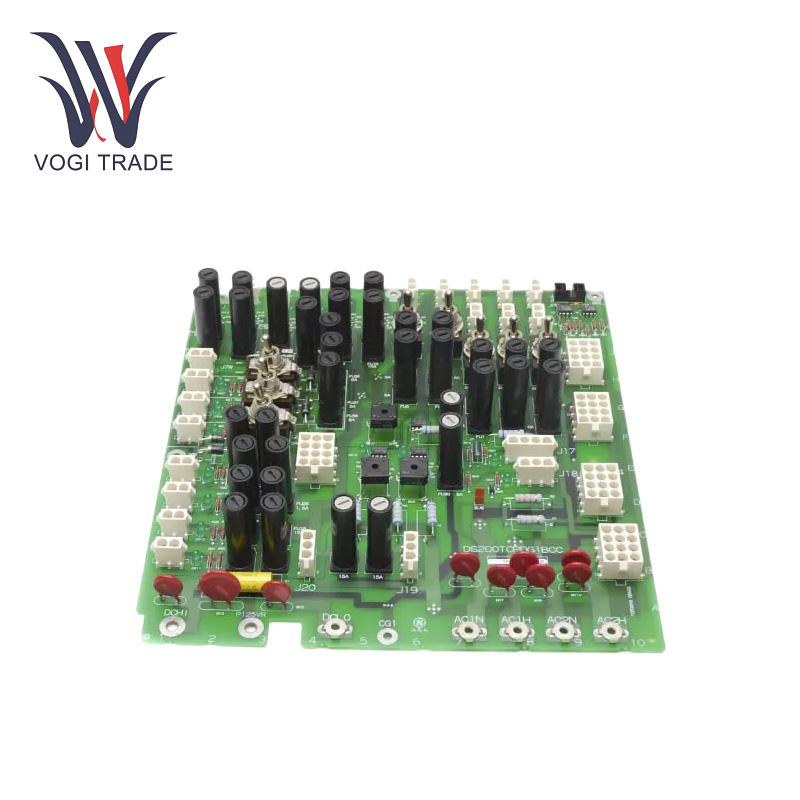

GE DS200TCPDG1BCC

Technical Parameters

Operating temperature: - 20℃ ~ + 60℃

Processor type: 32-bit or 64-bit

Processor frequency: 300MHz-1GHz

Memory capacity: 10Mbytes-100Mbytes

Operating range: 24V DC, 110V AC or 220V AC

Number of input channels: 8 and 16

Input/output signal type: digital input, analog input

Output channels: 4 and 8

Protocol: EtherNet/IP, ProfiNet, Modbus TCP

Communication interface type: Ethernet interface, RS485 interface, RS232 interface

Features

Effective power distribution: GE DS200TCPDG1BCC distributes 125 VDC power to many important components of the system. It also sends power to the TCPS board of each I/O core and the control engine core separately. Provide the TCEA board in the core with the power it deserves. Conformal power partitioning enables the control system to operate normally without interrupting any of its components due to power outages.

Fully integrated components: Using the GE DS200TCPDG1BCC's 8 toggle switches, the user can shut down each core independently. This feature is very useful for maintenance operations or debugging issues with a given component in the system. There are also 36 fuses on the board to protect various circuits from potential overcurrent conditions.

Adaptive hardware setup: Its board has a BJS jumper that can be switched to isolate the ground reference, which is ideal for external reference systems and is flexible to meet installation and operation needs. The GE DS200TCPDG1BCC allows the board to be integrated into different environments and ensure reliable electrical performance.

Extensive connector capabilities: The board's extensive connector capabilities enable it to interface with multiple boards and subsystems in the larger Mark V turbine control system, providing an efficient and reliable method for establishing data and power transmission between different components.

Applications

Power Generation Industry: The GE DS200TCPDG1BCC ensures that power is distributed accordingly to each control and monitoring component within the turbine control system. This in turn contributes to the seamless operation of the turbine, thereby improving power generation efficiency and the reliability of providing constant power from the grid. Human thinking, of course, is quite artificial from an economic perspective; or when a power failure or failure or even downtime occurs, the livelihood of power production is diverted or interrupted.

Industrial Manufacturing: In industrial manufacturing environments where precision and minimal downtime are critical, the GE DS200TCPDG1BCC can be used to provide control systems for complex production lines with dozens of robots, arms and sensors. It is used to facilitate these manufacturing processes by providing stable power distribution, ensuring that they run smoothly, with minimal errors and maximum productivity.

Petrochemical and Chemical Processing: In the world of petrochemical and chemical processing with hazardous environments and process control, the GE DS200TCPDG1BCC drives the control systems of pumps, compressors, valves and other monitoring equipment used to produce and transport chemicals and petroleum products. Its secure energy supply means these essential processes can run smoothly and safely, eliminating the risk of accidents and ensuring product quality.

HVAC and Building Automation: One of the main applications of the GE DS200TCPDG1BCC is in large commercial and industrial buildings, where it can be incorporated into heating, ventilation and air conditioning systems and complete building automation systems. It drives controllers, sensors and actuators to control temperature, humidity and air quality within the building. It not only provides an energy-saving and comfortable indoor environment, but also enables centralized management and control of building systems.
