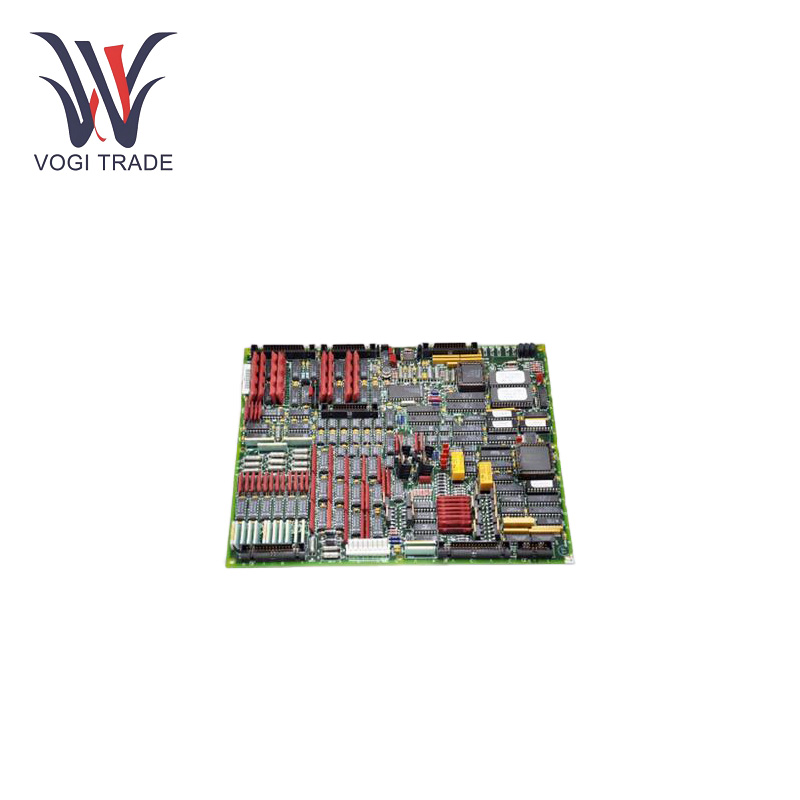

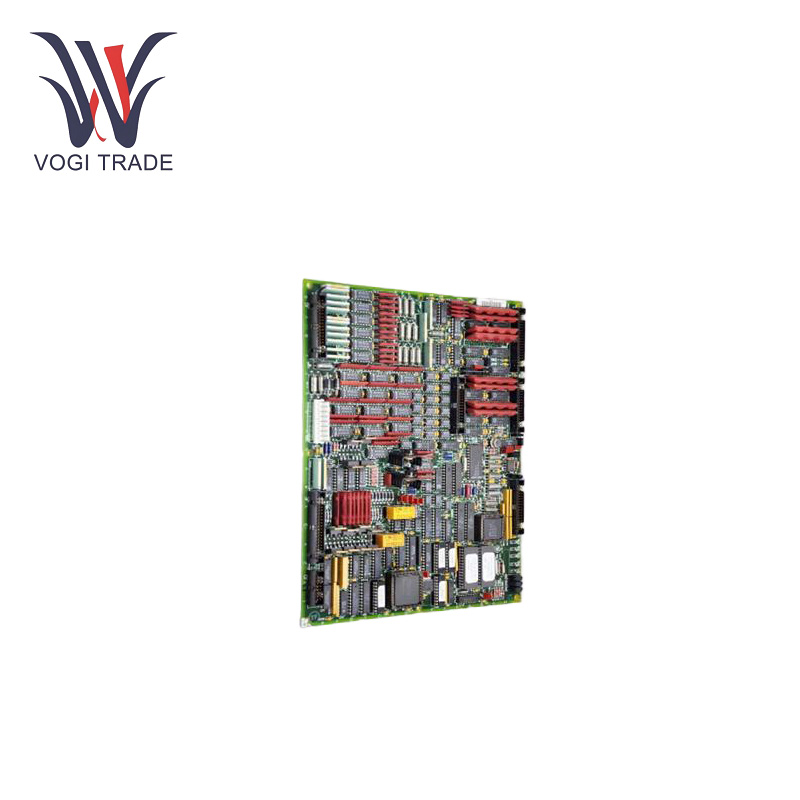

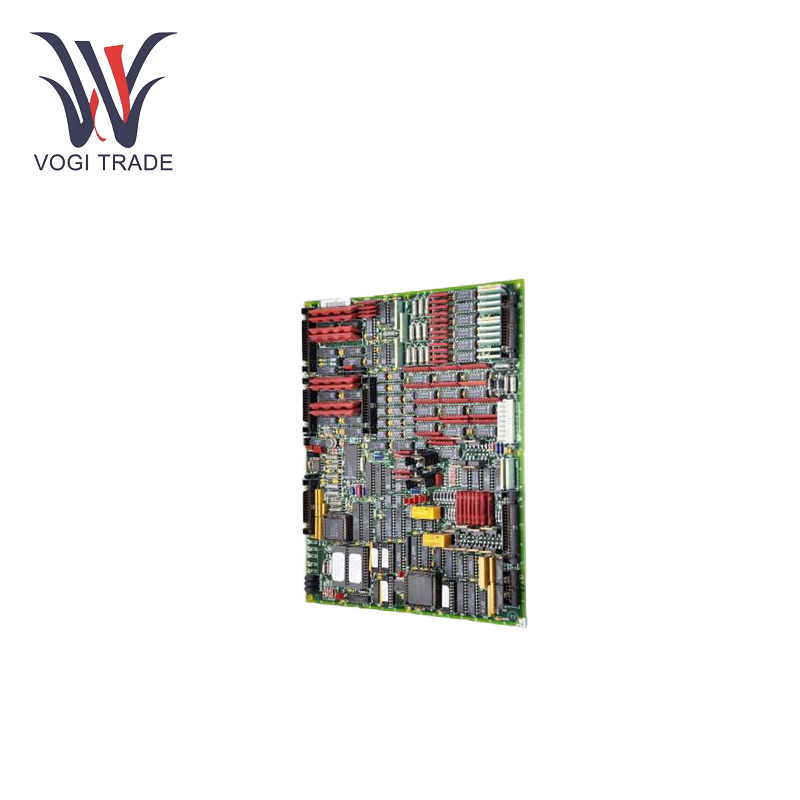

GE DS200TCQBG1BBA

Operating Parameters

Nominal Input Voltage: 24 VDC.

Operating Temperature Range: -40°- 70°C.

Processing Power: 500 MIPS.

Memory: 256 MB.

Communication Interfaces: CAN bus, Profibus-DP, Ethernet/IP.

Input Channels: 16 Analog input channels.

Reliability-MTBF: over 40,000 hours.

Product Features

Advanced device development: Able to accept complex signal inputs, filter out noise, and extract relevant information from the signals generated by the sensors.

Diagnostic function: Built-in diagnostic software. Able to detect potential faults or abnormal conditions in real time. For example, it can detect sensor connection deterioration or impending power supply problems. It enables proactive maintenance operations through early warnings, helping to reduce system downtime.

Profitability :The GE DS200TCQBG1BBA offers a variety of programming options. Enables users to customize its control algorithms and operating parameters. In logistics centers, it can be programmed to precisely control the speed of conveyor belts; while in chemical reactors, it can precisely regulate temperature.

High data transfer rate support: The device is able to quickly transmit large amounts of data through high-bandwidth communication interfaces. This feature is very important in power grid management, where real-time processing and control are key, as it can be smoothly connected to the central control system. Basic data can be transmitted in real time, ensuring smooth operation and rapid response to developments in the power grid.

Installation

DIN Rail Mounting: The device includes a DIN rail mounting clip for quick and easy installation on a standard DIN rail. Similar to an industrial control cabinet, where components are arranged in modules or units within a specially designed housing. You can easily add, remove, or replace devices as needed.

Panel Mounting: The GE DS200TCQBG1BBA has status LEDs and connectors on the front panel. Includes mounting brackets and gaskets for secure and sealed installation for seamless integration into control panels.

Rack Mount: For data centers or control rooms that manage multiple rack-mount devices, it can be mounted in a 19-inch equipment rack. The device includes suitable ears and screws to fit nicely within the rack slots, providing a neat mounting layout.

Troubleshooting

Incorrect Input Signal: If the input signal is incorrect or inconsistent, first check the sensor connections. Verify the wiring of the sensors and check if they are receiving enough power. If necessary, the sensors must be calibrated because incorrect readings from these sensors can adversely affect the operation of the device. You can use a multimeter or other diagnostic tool to check the integrity of the signal at the sensor terminals.

Communication Error: If you cannot communicate with other devices, first check the cable connections. The cables are loose or damaged, especially the communication ports. After that, cross-check the network parameters such as IP address, sub-net mask, and communication protocol to ensure that they are consistent with the connected system. If the problem persists, restarting the device and/or related network devices may solve the problem.

Overheat Alarm: If the device sounds an overheat alarm, check the heating. When installing, ensure that there is good ventilation around the device. Clear any obstacles that block the heat dissipation path. Clear any dust or debris that is clogging the heat sink, and consider using external cooling factors such as fans or heat exchangers.

Program execution errors: When a program execution error or program crash occurs, the software code must be analyzed. Look for any recent changes or updates that may have introduced the error. If possible, restoring the device to a known good state may resolve the issue.

Application range

Renewable energy system: The device is a key component in solar and wind power plants, helping to efficiently convert energy. It is able to control the position of solar panels to achieve maximum efficiency in solar energy absorption. For wind turbines, it can change the angle of the blades to collect the most wind energy.

Manufacturing Automation: Mainly used in factories, it coordinates the movement of robotic arms to achieve precise positioning and repeatability during assembly operations. It regulates the flow of goods in automatic packaging lines and the operation of packaging machinery, minimizing errors in the packaging process.

Transportation: Integrated into trains and signal systems in railway or subway systems. It controls the acceleration and deceleration of trains. Combined with trackside sensors, it can also sense track conditions and provide real-time maintenance feedback.
