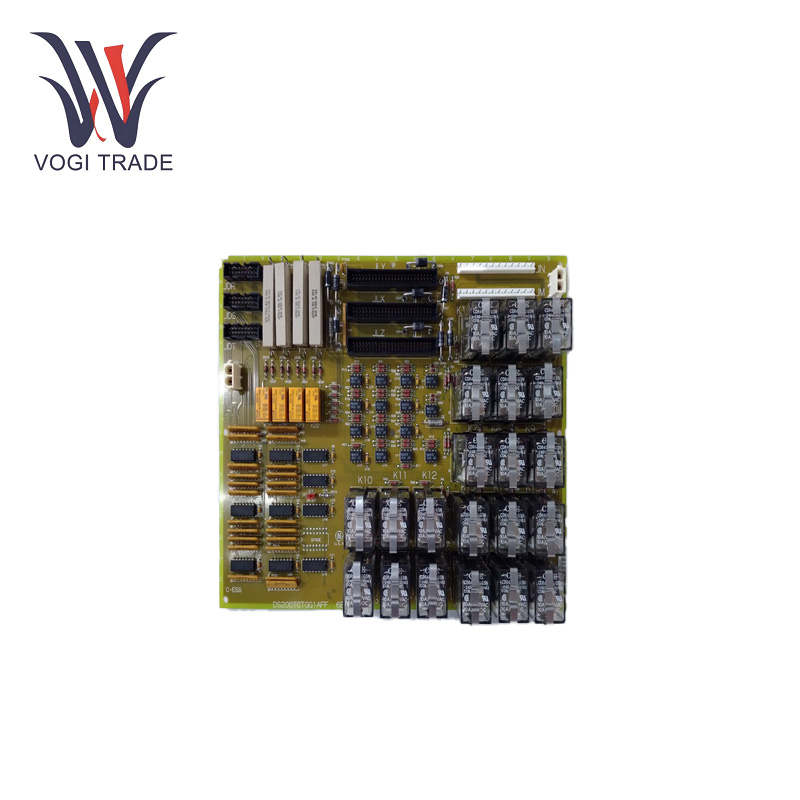

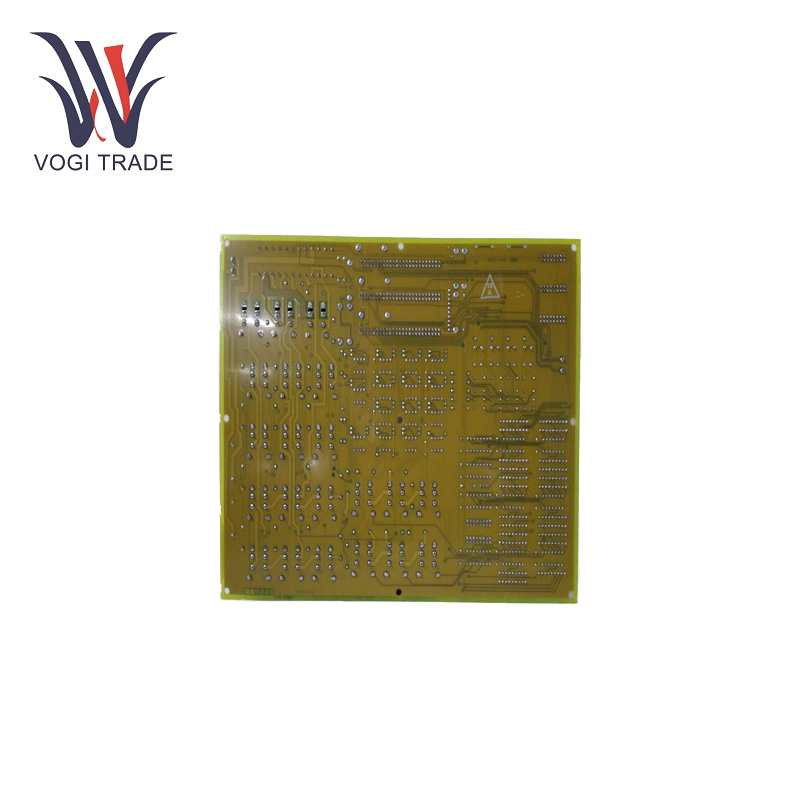

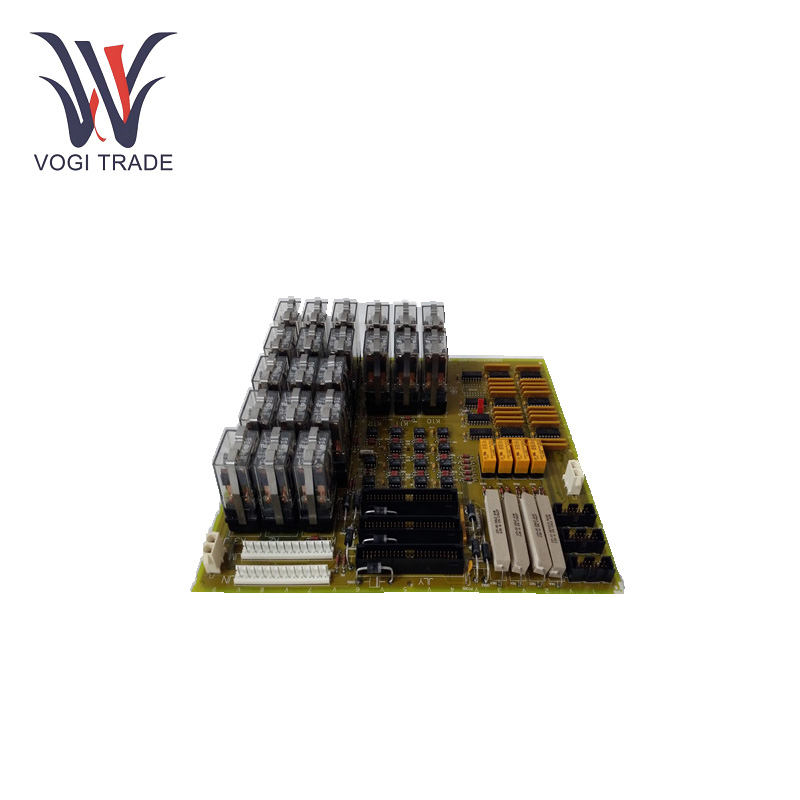

Brand: GE Description: Temperature Controller Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 3 Payment Term: T/T Shipping Port: ShenZhen The GE DS200TCTGG1AFF is a highly reliable and versatile component in the field of industrial control and automation. With its specific operating parameters, it can adapt to a variety of environmental conditions and power requirements.
|
Manufacture |
GE |
|
Model Number |
DS200TCTGG1AFF |
|
Ordering Number |
DS200TCTGG1AFF |
|
Catalog |
- |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
8.25cm*4.15cm*2.5cm |
|
Packing Dimension |
10cm*6cm*5cm |
|
Weight |
0.8kg |
Input voltage 480V AC
Output voltage 1200V DC
Rated current 200A
Control mode Trigger gate control (IGBT drive)
Operating temperature range -40°C ~ 85°C
Protection level IP20 (control cabinet installation)
Product Features
Input/Output Expansion: This is a microprocessor expansion board that mainly expands the input/output pins available to the microprocessor1. This means that the greater the number of sensors and actuators connected to the control system, the more flexible the design of the control system. For example, it can implement additional temperature sensors, pressure sensors, and flow sensors in the turbine control system, allowing for more extensive monitoring of the turbine's operating conditions.
Increased Processing Power: The GE DS200TCTGG1AFF also provides greater processing power for the control system, either in the form of a coprocessor or a more powerful microcontroller1. This additional capability enables complex calculations or functions such as complex graphics, not only control algorithms, but also global data processing, which improves the overall efficiency of the control system.
Communication Interfaces Provided: The board usually has other communication interfaces that can easily connect to other devices in the control system. It can provide communication protocols such as SPI, I2C, UART, and Ethernet for data transfer and communication with programmable logic controllers (PLCs), HMIs, and other control devices.
Signal Conditioning and Conversion: The GE DS200TCTGG1AFF can perform signal conditioning and conversion functions, converting analog signals from sensors into digital values for control system processing, and conditioning digital signals to ensure proper transmission and compatibility with other devices in the system. Reducing signal loss and interference through these two steps makes the overall signal quality better and more stable.
Fault Detection and Protection: The GE DS200TCTGG1AFF has some fault detection and protection functions. It is capable of self/signal health monitoring - meaning it can monitor the operation of itself and its input signals and detect abnormal conditions or faults. If a fault occurs, it can issue an alarm signal and perform an action; for example, in the case of a gas turbine control system, this action may be a turbine trip.
