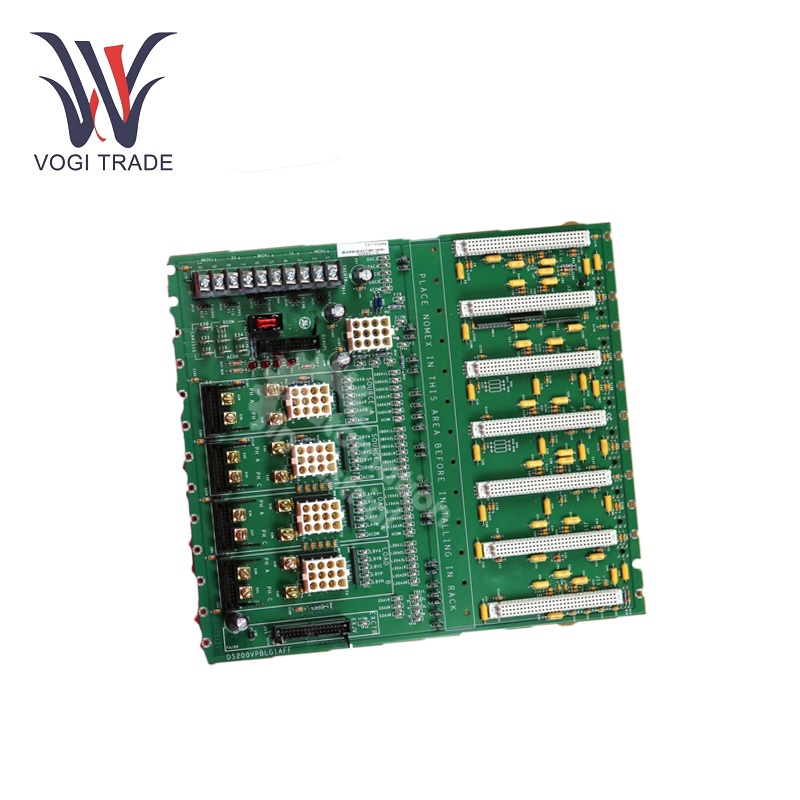

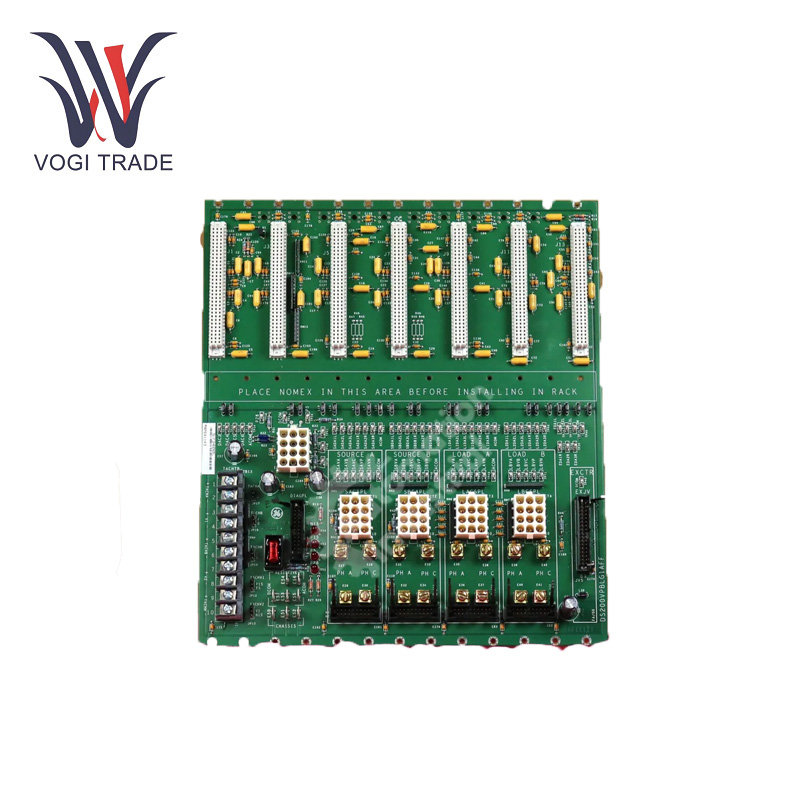

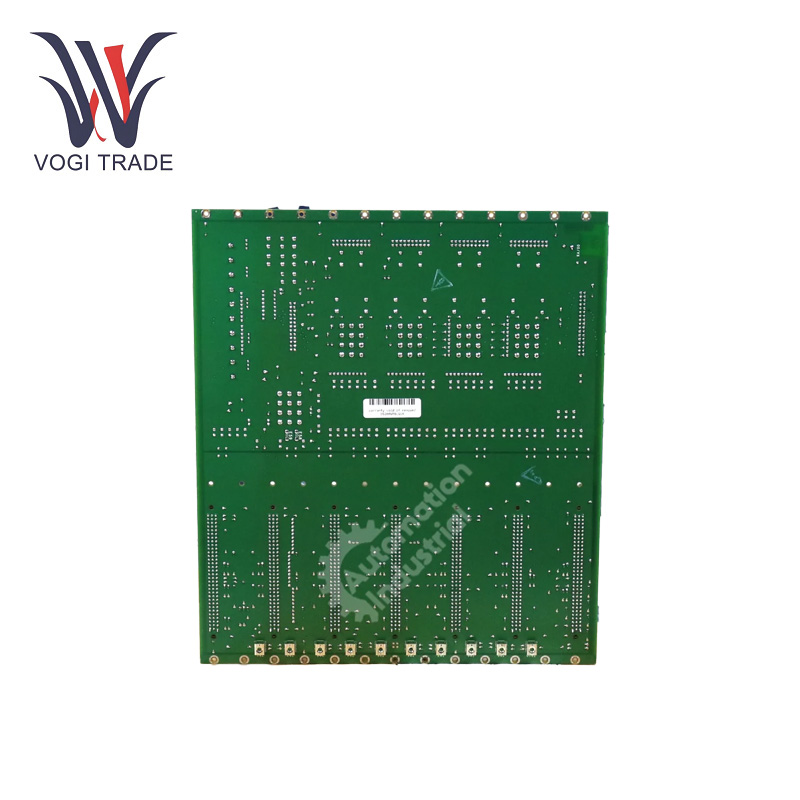

GE DS200VPBLG1AFF

Operation Parameters

Input Voltage: 120/240 V AC.

Operating Temperature Range: -30°C to +65°C.

Weight: Approximately 1.5 kg.

Power Distribution: Supports stable power connectivity and module integration.

Connectivity: Interfaces with external devices like current transformers and feedback boards.

Product Features

Highly Developed Control Functions: Offers control of numerous aspects with cutting-edge algorithms. GE DS200VPBLG1AFF could be the speed of rotating machinery, the flow rate of fluids, or the position of automated actuators but all of these require high precision with minimal difference from targeted values.

Flexible Communication Interfaces: Add-on interfaces including Ethernet, RS-422 and RS-485. These interfaces allow for integration with other industrial equipment, including programmable logic controllers (PLCs), human-machine interfaces (HMIs), and Supervisory Control and Data Acquisition (SCADA) systems. GE DS200VPBLG1AFF helps in exchanging data in an efficient manner and governing control.

Self-Diagnostic Features: Additional built-in self-diagnostic features It is capable of detecting internal faults, out-of-spec voltage spikes, and overheating. Custom error codes and detailed diagnostic messages for quick troubleshooting.

Installation

Mechanical Installation: It has standardized mounting brackets or holes that make its installation on DIN rails or control panels really easy. Make sure everything was aligned properly and proper fastening hardware used, no vibration or movement while running.

Orientation: Follow the manufacturer's instructions for the orientation during installation. For example, certain internal parts, such as heat sinks or cooling fans, need specific orientations for optimal functioning, which maintains proper heat dissipation.

Wiring: Please be sure you follow the wiring diagrams closely. Attach the power supply wires to their respective terminals, ensuring the polarity is correct. Use shielded wires for signal and communication lines, and run them far away from the high-power lines.

Grounding: Make sure to have a good ground connection to the device chassis. This is not just for safety, but also for stable operation as it helps eliminate electrical noise and even prevents electrostatic discharge (ESD).

Application range

Industrial Automation:Automation is used extensively in factories to control production processes. For improving productivity and product quality, GE DS200VPBLG1AFF can control the speed and synchronization of conveyor belts, robotic arms, and machining tools.

Power Transmission: In power substations and electric grid control centers, GE DS200VPBLG1AFF is used to control and monitor the flow of electricity. For voltage levels, switchgear operations, power factor correction, etc., it can enhance the reliability of electricity supply.

Transportation Systems: GE DS200VPBLG1AFF is used in railway & subway control systems to control signals, track switches, & train propulsion systems. It is rugged enough to withstand the vibration and harsh environmental conditions found around transportation infrastructure and designed for safe and efficient operation.

Troubleshooting

Power-On Issues:In the case of the device not powering ON, ensure the power supply connections and the voltage available on the input terminals. Make sure that the power switch is in the right position and there are not blown fuses or tripped circuit breakers. There may be a hardened internal power supply if the voltage matches the specification but the product still will not turn on, and it will need to be checked further by a certified technician.

Communication Problems:In event of communication errors with the interdependent apparatus, firstly, check both GE DS200VPBLG1AFF and the connected apparatus for the data communication protocol settings. Verify baud rate, data bits, stop bits, and parity for mismatches. Check the cable connections for loose or damaged wires. If you can, try to use some sort of communication tester to tell if the problem is on the hardware or software layer.

Performance Anomalies:Outside of basic connectivity issues, it can be a little more challenging to diagnose performance problems, particularly if the device seems to lack the control precision you might expect, or if it is behaving erratically. Check for nearby strong magnetic fields, RF interference or electrical noise sources. Review the sensor interconnections of the relevant metrics (e.g., speed detectors, position encoders) to verify they provide accurate feedback. Finally, verify that the control algorithm settings and parameters are adjusted for current operating conditions.
