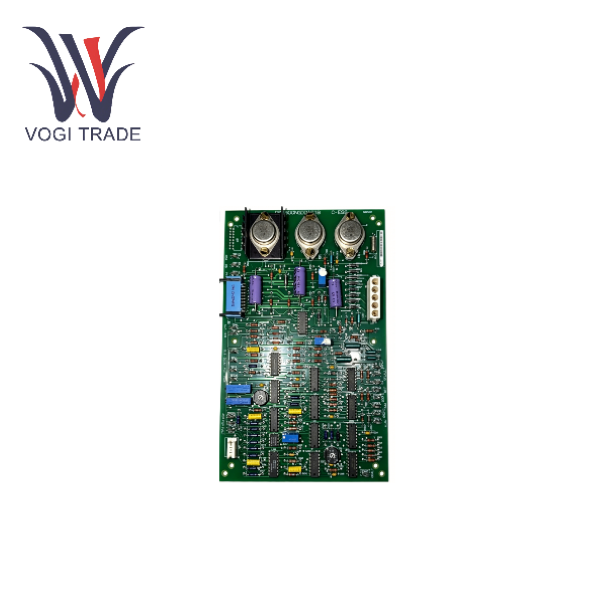

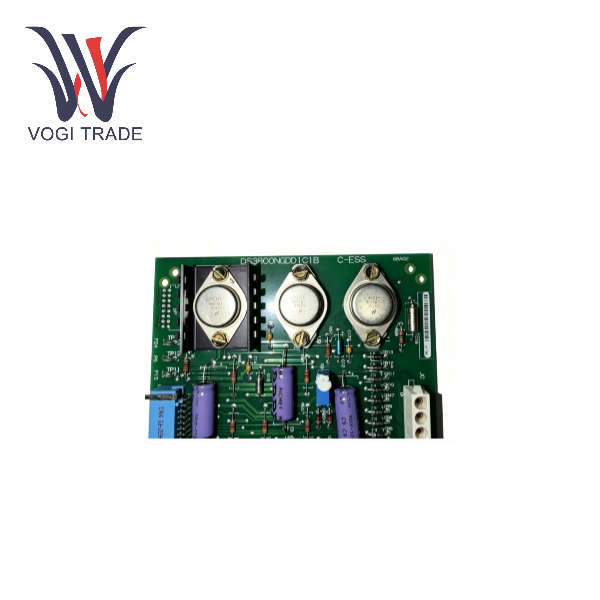

GE DS3800NGDD1C1B

Brand: GE
Description: DS3800NGDD1C1B
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 3
Payment Term: T/T
Shipping Port: Xiamen
The DS3800NGDD1C1B is a high-performance circuit board produced by General Electric (GE), integrating digital signal processing functions. It features high-speed data processing capabilities and a rich array of I/O interfaces, and is widely used in complex scenarios such as industrial automation control, power system monitoring, and gas turbines.

Send Inquiry

Product Description

Manufacture	GE
Model Number	DS3800NGDD1C1B
Ordering Number	DS3800NGDD1C1B
Catalog	Mark IV
Country Of Origin	USA
HS CODE	7326909000
Dimension	178 × 330 × 160 mm
Weight	0.8 kg

Product Overview

The GE DS3800NGDD1C1B is a high-performance digital I/O communication interface module developed by General Electric (GE) and GE Fanuc, and it belongs to the DS3800 series servo drive control system. This module plays a core role as a "digital bridge" in the industrial automation chain, specifically responsible for the instruction conversion and status feedback between PLC digital signals and servo drivers. As one of the components of the Mark IV series, the DS3800NGDD1C1B, with its stable circuit design and anti-interference ability, is widely used in critical scenarios such as gas turbine control, compressor drive, and emergency shut-off interlock. It is currently the main digital communication solution of the DS3800 series

Working Principle

The working principle and signal processing flow of the digital I/O communication gateway: Input direction (PLC → driver) : The module receives 24V DC digital instruction signals from the PLC backplane bus → The input circuit performs electrical isolation and level conversion → The microprocessor parses the instructions (response time < 1ms) → The output circuit drives and sends them to the output direction of the servo driver (driver → PLC) : Collect the status signals (fault codes, operating status, etc.) of the servo driver → Process them in the isolation protection circuit → encode and send them back to the PLC control system to form a closed-loop control. Core technical features: Triple isolation technology: The input channel, output channel, and power supply are electrically isolated from each other, with strong anti-interference ability and high-speed response A response time of less than 1ms meets the real-time requirements of servo control. Redundant architecture support: Optional redundant NGDD module for seamless switching, enhancing system reliability.

The working principle of the on-site grounding detection card: Detection mechanism: The module continuously monitors the ground impedance and leakage current parameters in the on-site circuit. Monitoring stage: Through the built-in detection circuit, it continuously measures the electrical parameters between the on-site circuit and the ground. Judgment stage: When abnormal leakage current or impedance drop (indicating a ground fault) is detected, the internal logic of the module immediately enters the fault confirmation response stage: after confirming the fault, it simultaneously triggers the local LED indication, drives the external alarm device, and reports to the main control system for isolation protection: helps the control system quickly locate and isolate the faulty circuit to prevent the spread of the fault.

Deployment features: As a field replaceable unit (FRU), it supports quick replacement and reduces downtime. It complies with the standard rack-mounted specifications of the Mark IV Speedtronic system and is plug-and-play

Application Case

In the DS3800 servo drive control system, DS3800NGDD1C1B is responsible for digital signal conversion and communication between the PLC and the servo drive. Typical applications include:

Gas/Steam Power Plants: Fuel valve servo control, digital control of Inlet Guide Vanes (IGV), and On/Off control of steam turbine main steam valves.

Combined Cycle Power Plants: Digital I/O for feedwater pump variable frequency drives (VFDs), and digital control of compressor anti-surge valves.

Petrochemicals: Servo control for large-scale compressors, and digital interlocking for Emergency Shut-Down (ESD) valves.

Industrial Drives: Control of servo motor start/stop, direction, and enable functions; digital interfacing for variable frequency drives.

Iron & Steel Metallurgy: Automation control within steelmaking, ironmaking, and rolling processes.

CNC Machine Tools: Digital I/O for GE Fanuc servo axes, and spindle enable control.

Robotics: Digital signal distribution for multi-axis coordinated motion, and safety gate interlocking.

In the GE Mark IV Speedtronic turbine control system, DS3800NGDD1C1B continuously monitors ground faults in the excitation and distribution systems to prevent electrical interference and equipment damage. Gas turbine power plant: Monitors the insulation condition of the generator excitation circuit to ground, promptly detects ground faults and triggers alarms. Steam turbine power station: Protect key electrical circuits to prevent unplanned shutdowns and equipment damage caused by ground faults. Combined cycle power station: Conduct ground integrity monitoring on the on-site circuits of the entire turbine generator set. Industrial turbine system: Ensure the electrical safety of turbine drive equipment such as compressors and pumps.
