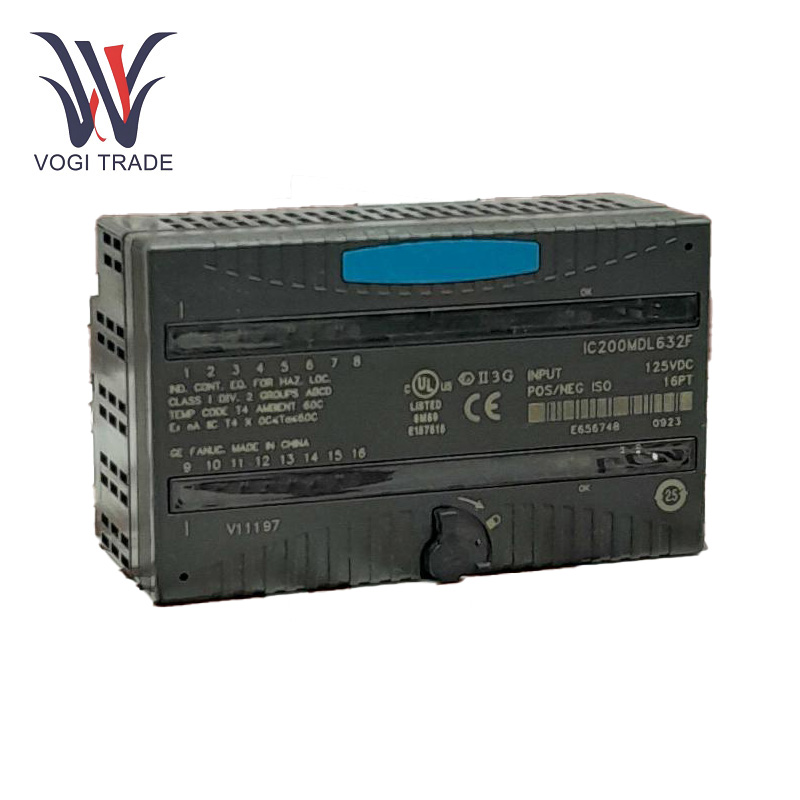

GE IC200MDL632

Input Type: 125V DC.

Input Logic: Positive or negative logic.

Number of Input Points: 16 points.

Isolation: Has isolation function.

Operating Temperature: -25°C to 70°C.

Relative Humidity: 5% to 95% non-condensing.

Mounting Method: DIN rail mounting or panel mounting.

Functional Characteristics

Isolated Inputs: 16 input points of GE IC200MDL632 are isolated from each other, thus can effectively prevent electrical interference between input channel, and maintain the stability and accuracy of input signal It can withstand external electromagnetic interference and voltage changes, which can cause damage to the PLC system.

Diverse Input Voltage: 125V DC input voltage environment is the minimum program fault resistance. GE IC200MDL632 can be on some power supply environment with a voltage change, and improve the stability and reliability of the system in a variety of power supply conditions.

Customization: The GE Versamax PLC system allows modular and customized configuration of the control system, maximizing compatibility with other modules in the system.

Operation Method

Module Installation: Take a physical rack of GE Versamax PLC to place GE IC200MDL632, while installing the second provided to the back. Make sure you conect and fixt proper so there is no loose contact.

Wiring: According to positive and negative logic requirements, Connect the input signals to the corresponding terminals of the module. Verify proper wiring and tight connections to ensure signals do not degrade or corrupt.

Configuration and Programming: GE IC200MDL632 is configured to set parameters such as input signal filtering, and debounce time, etc. Next, develop the correct control program to read the input signals to perform the needed control functions.

Application Areas

Manufacturing industry：It can be used in a variety of production lines to detect the status of sensors, switches and other devices such as limit switches, proximity sensors, etc. to provide basic input signals that guide the control system in precisely controlling production processes such as operative conveyor belts, when machinery starts up or stops, and the control of robotic arms.

Power Industry: GE IC200MDL632 can monitor the status of circuit breakers, disconnectors and other electrical equipment, detect the signals of various sensors such as temperature and pressure of power plants and substations, and provide data support for power system monitoring and control to ensure the safe and stable operation of the power grid.

Water Treatment Industry: It is used in water treatment plant monitoring pump, valve and other equipment operating status, and detecting all kinds of water quality parameter, liquid level signal, can achieve the automatic control of water treatment process, to improve the water treatment efficiency and quality.

Building Automation: GE IC200MDL632 can be used in intelligent buildings to monitor the condition of doors and windows, lighting systems, air conditioners and other equipment and realize intelligent control of buildings, improving the comfort level and energy efficiency of building environment.
