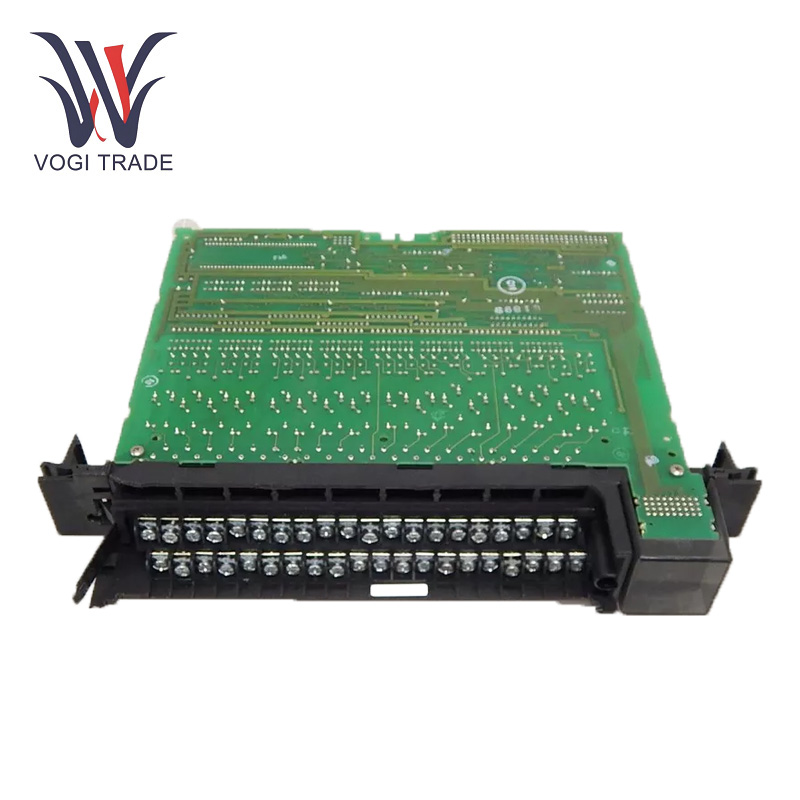

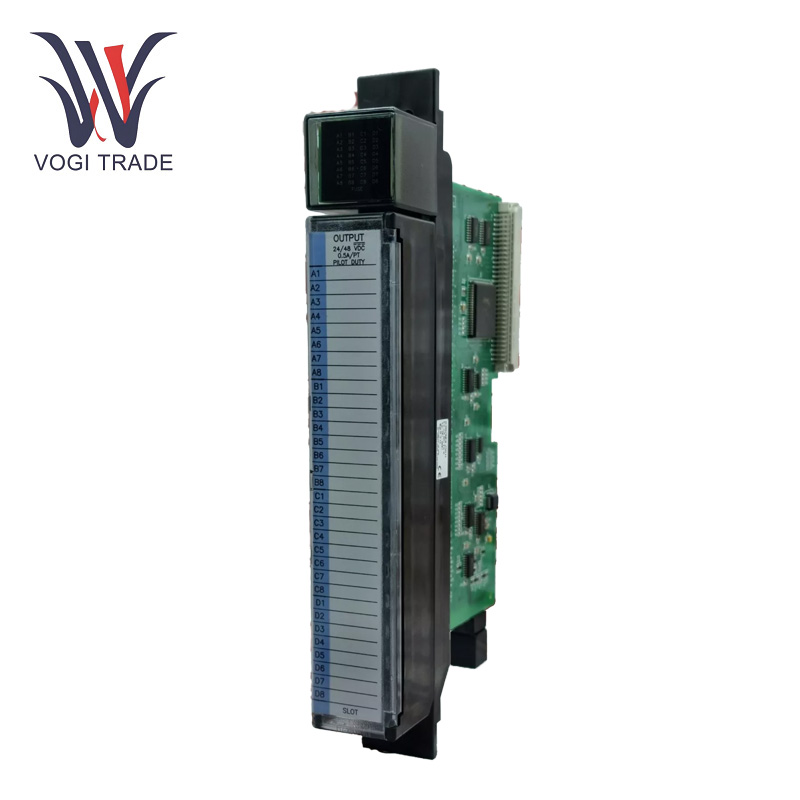

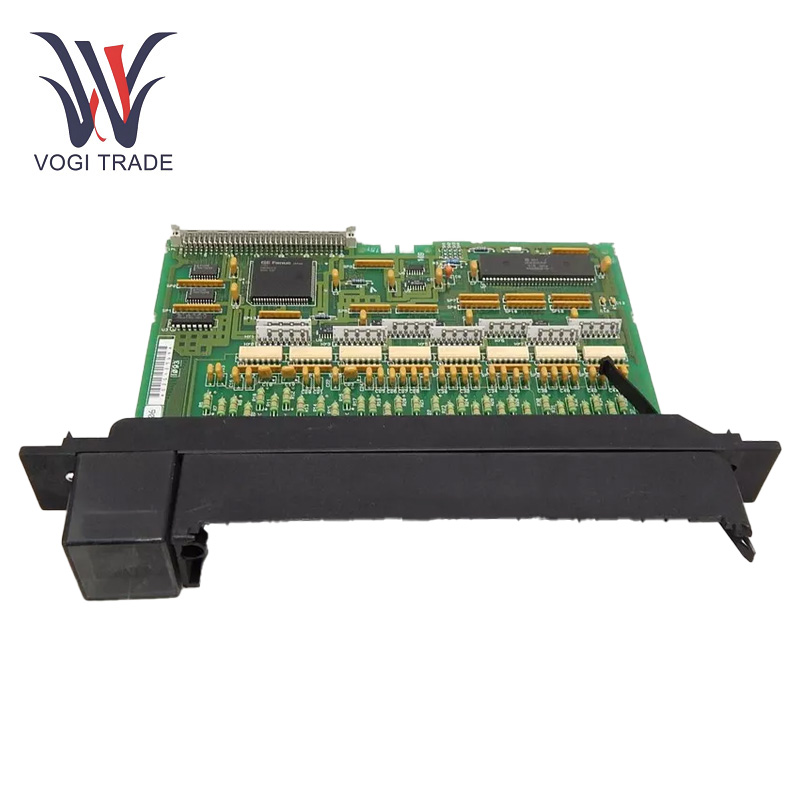

Brand: GE Description: Discrete Output Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: ShenZhen GE IC697MDL750 is a 32 point discrete output module. The module features four independent groups of eight outputs to ensure reliable and flexible control. It has a 1ms response time and the ability to handle 10A inrush current.
|
Manufacture |
GE |
|
Model Number |
IC697MDL750 |
|
Ordering Number |
IC697MDL750 |
|
Catalog |
- |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
40cm*35cm*10cm |
|
Packing Dimension |
42cm*37cm*12cm |
|
Weight |
1.5kg |
Operating Parameters
Output Configuration: 32 output points organized into four isolated groups of 8 points each, enhancing system reliability.
Voltage Range: 20 to 60 VDC, accommodating a variety of industrial devices.
Current Capacity: Each point supports up to 0.5 Amperes, with a maximum of 2 Amperes per group.
Inrush Current: Capable of handling inrush currents up to 10 Amperes for 20 milliseconds, suitable for devices with high starting currents.
Response Time: Fast switching with a response time of 1 millisecond for both ON and OFF transitions.
Backplane Current Consumption: Draws 0.25 Amperes from the backplane, ensuring efficient power usage.
Product Features
High Density Output: 32 output points can be crammed in 1 module, giving the entire system a more compact rack space and simpler architecture.
Isolated Groups: 4 isolated groups of 8 outputs with separate commons for report flexibility and low noise operation.
Overcurrent Protection: Each group of the fuse is to protect itself and devices from the overcurrent.
Memory Management: The GE IC697MDL750 provides additional memory to memory modules GE Fanuc Series 90 - 70 programmable logic controllers.
High Density Output: 32 output points can be crammed in 1 module, giving the entire system a more compact rack space and simpler architecture.
Isolated Groups: 4 isolated groups of 8 outputs with separate commons for report flexibility and low noise operation.
Overcurrent Protection: Each group of the fuse is to protect itself and devices from the overcurrent.
Memory Management: The GE IC697MDL750 provides additional memory to memory modules GE Fanuc Series 90 - 70 programmable logic controllers. It provides 16 MB of static random access memory. More memory to upload large control programs, store historical data and variables, further improving the system's performance for complex automation applications.
Error detection and correction: GE IC697MDL750 have error detecting and correcting capability. The EDAC mechanism monitors the memory for errors like single - bit errors and correctable multi bit errors. If an error is detected, it can self correct the data, thus preserving the inputted data. This is key for reliable operation in industrial grade environments requiring precise data.
LED indicators: The output points feature LED indicators that provide visual status information to monitor and troubleshoot easily.
Installation
Preparation: Before installing the new PLC, you must power down your system, as working on live equipment can be dangerous.
Module Placement: Insert the GE IC697MDL750 module into a single slot on the Series 90-70 PLC rack, ensuring proper alignment and secure seating.
Field Wiring: Connect field devices to the removable terminal board, which accommodates wire sizes between 22 AWG 0.36 mm² and 14 AWG 2.10 mm².
POWER UP: Once all connections are verified, power up the PLC system and check the status indicators to see that each module works.
Application range
Examples of Manufacturing Systems: Operate actuators, solenoids, and indicators on the production line.
Process Automation:GE IC697MDL750 in chemical processing, water treatment and similar continuous processes.
Secondary Activities: Conveyor, sortation, & automated storage operations
Material Handling: Managing lighting, HVAC, and other energy-related devices.
Troubleshooting
No Output: If there is no output generated by the module, verify the power supply connections and ensure that the module is configured correctly in the PLC software.
Intermittent Output: If the output is intermittent, check the wiring for loose connections or damaged cables. Also, ensure there is no electrical noise which is interfering with your module.
LED Indicators Not Working: In the event that the LED indicators are unable to illuminate, you can check to ascertain whether the module is powered and also if the outputs are configured as needed.
Overheating: Check the current, if it exceeds the rated current, the current draw will be OK. Make sure there is good airflow around the module as well.
provides 16 MB of static random access memory. More memory to upload large control programs, store historical data and variables, further improving the system's performance for complex automation applications.
Error detection and correction: they have error detecting and correcting capability. The EDAC mechanism monitors the memory for errors like single - bit errors and correctable multi bit errors. If an error is detected, it can self correct the data, thus preserving the inputted data. This is key for reliable operation in industrial grade environments requiring precise data.
LED indicators: The output points feature LED indicators that provide visual status information to monitor and troubleshoot easily.
Installation
Preparation: Before installing the new PLC, you must power down your system, as working on live equipment can be dangerous.
Module Placement: Insert the GE IC697MDL750 module into a single slot on the Series 90-70 PLC rack, ensuring proper alignment and secure seating.
Field Wiring: Connect field devices to the removable terminal board, which accommodates wire sizes between 22 AWG 0.36 mm² and 14 AWG 2.10 mm².
POWER UP: Once all connections are verified, power up the PLC system and check the status indicators to see that each module works.
Application range
Examples of Manufacturing Systems: Operate actuators, solenoids, and indicators on the production line.
Process Automation: in chemical processing, water treatment and similar continuous processes.
Secondary Activities: Conveyor, sortation, & automated storage operations
Material Handling: Managing lighting, HVAC, and other energy-related devices.
Troubleshooting
No Output: If there is no output generated by the module, verify the power supply connections and ensure that the module is configured correctly in the PLC software.
Intermittent Output: If the output is intermittent, check the wiring for loose connections or damaged cables. Also, ensure there is no electrical noise which is interfering with your module.
LED Indicators Not Working: In the event that the LED indicators are unable to illuminate, you can check to ascertain whether the module is powered and also if the outputs are configured as needed.
Overheating: Check the current, if it exceeds the rated current, the current draw will be OK. Make sure there is good airflow around the module as well.
