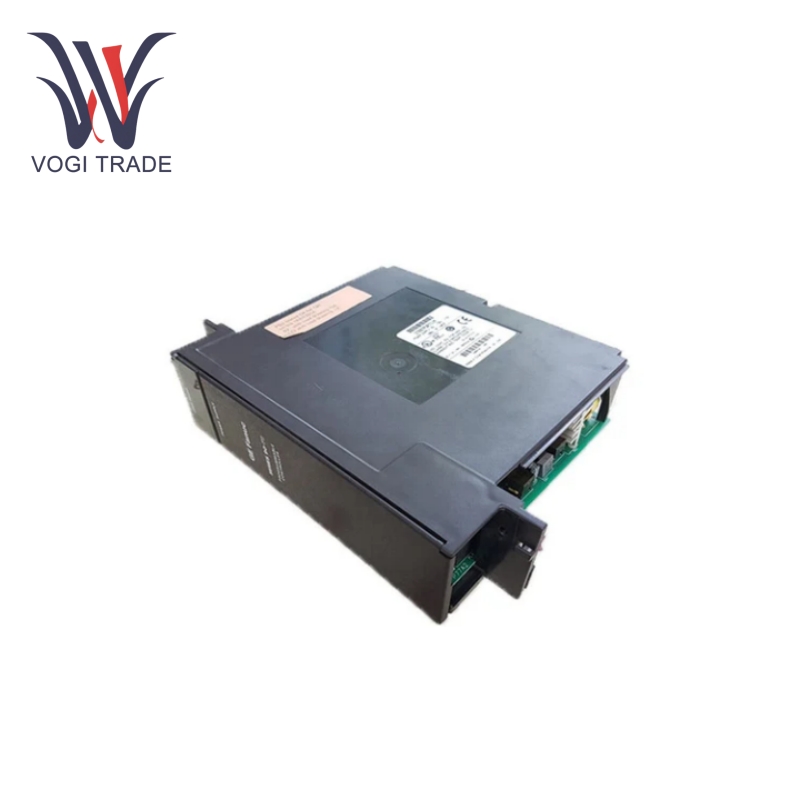

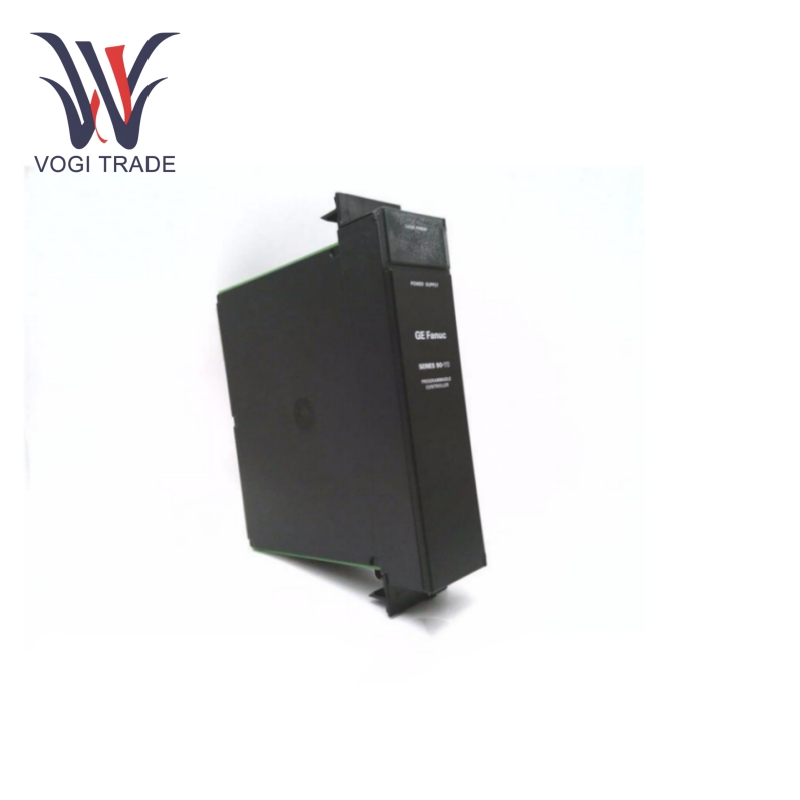

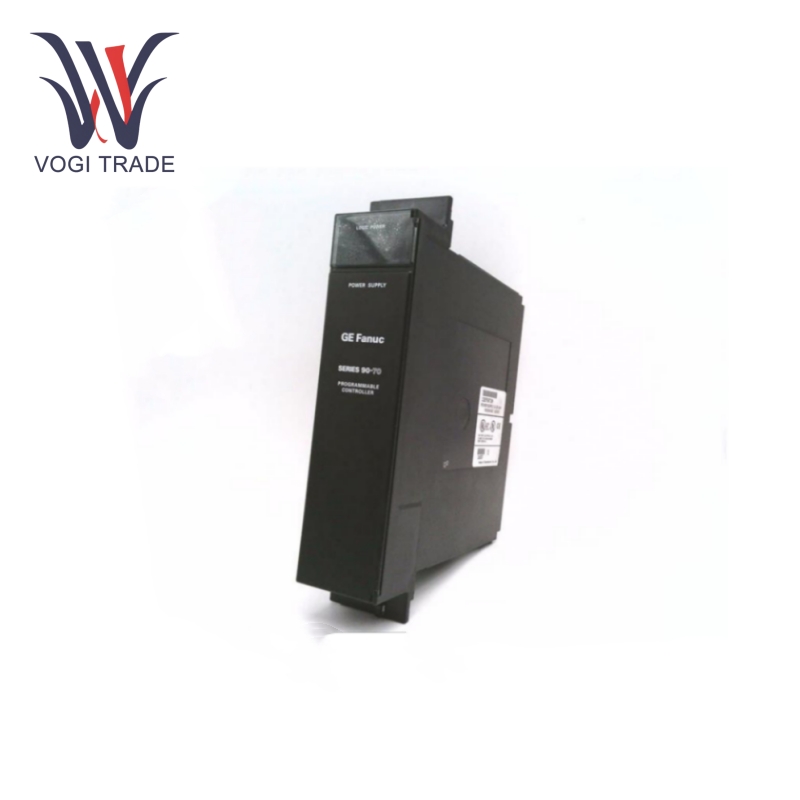

GE IC697PWR710

Usage Parameters

Input Voltage: GE IC697PWR710 is designed for 90 - 264 V AC input voltage, 47 - 63 Hz or 100 - 150 V DC. Wide input voltage threshold helps improve resilience in various industrial environments.

Input Power: Input power is 90 watts at full load, input half-cycle peak surge is 3 amps (typical), and power factor is greater than 0.95.

Output Power: Maximum output power is 56 watts, which can provide sufficient power for other modules in the system.

Output Voltage: Nominal output voltage is 5.1 V DC; output voltage is limited between 4.90 and 5.25 V DC; provide stable and accurate power to connected components.

Overvoltage and overcurrent protection: Built-in functions include overvoltage and overcurrent protection; overvoltage protection is generally activated at 6.2V, and overcurrent protection is set at 12A (typical value), so that the module and connected devices will not be damaged due to electrical faults.

Product Features

Automation system power supply:GE IC697PWR710 is an indispensable component in GE automation control systems, providing stable and reliable DC power for the smooth operation of other modules on the same substrate, such as programmable logic controllers (PLCs), input/output modules, and communication modules.

Redundancy and hot swap: Supporting hot swap and design redundancy, modules can be replaced or installed without shutting down the entire system. This improves the reliability and availability of the system and minimizes site downtime due to maintenance or upgrades.

Integrated protection function: GE IC697PWR710 has overvoltage, overcurrent and overtemperature protection mechanisms that can react quickly in the event of any abnormal electrical conditions, thereby preventing damage to itself and other connected devices. When overvoltage occurs, the clamping voltage electronic circuit regulates the output to avoid fuse blowing; when overcurrent occurs, the output voltage will drop as a precaution.

Compatibility and loose-wire connectivity: GE IC697PWR710 is designed to be compatible with VME standard C.1 for easy integration into existing automation systems. It also comes with a ground terminal to enhance the system's noise immunity and ensure the reliability of signal transmission.

Application Scope

Power generation: In power plants, GE IC697PWR710 powers the control systems of generators, turbines and other equipment to ensure stable operation and effective control of power generation operations.

Petrochemical: GE IC697PWR710 powers the control systems of reactors, pumps, valves and other equipment in petrochemical plants to ensure that the production process can be accurately and safely controlled, thereby achieving safe and stable operation.

Handle the water treatment process of treatment plants: provide energy for the control systems of water purification equipment (filtration, pumping and chemical dosing systems) to improve the quality and efficiency of water treatment.

Transportation: Provide energy for the control systems of signal equipment, train control and station facilities in railways and subways, thereby ensuring the safe operation of the transportation network.
