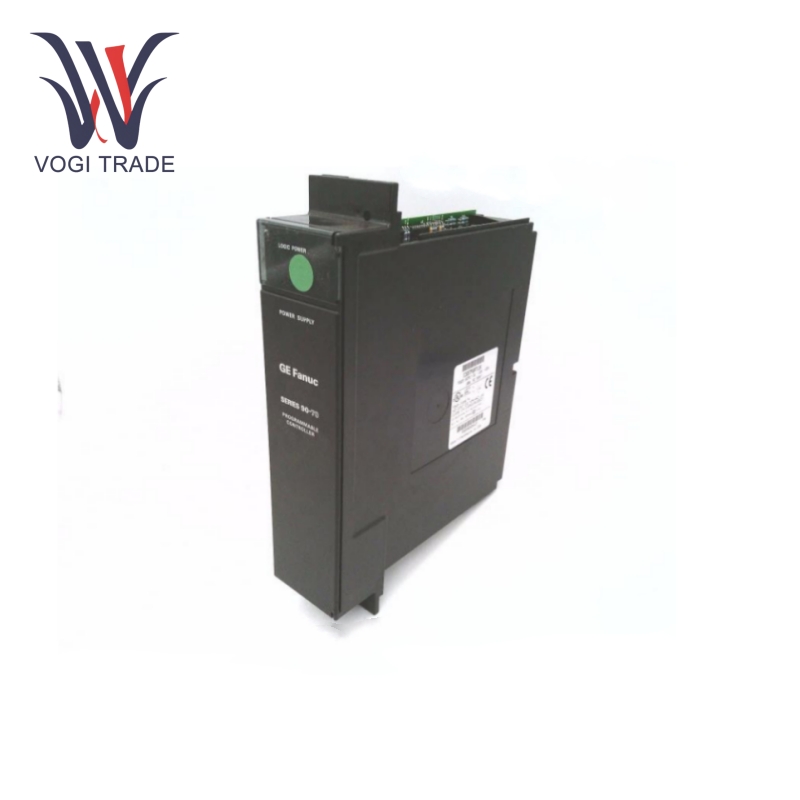

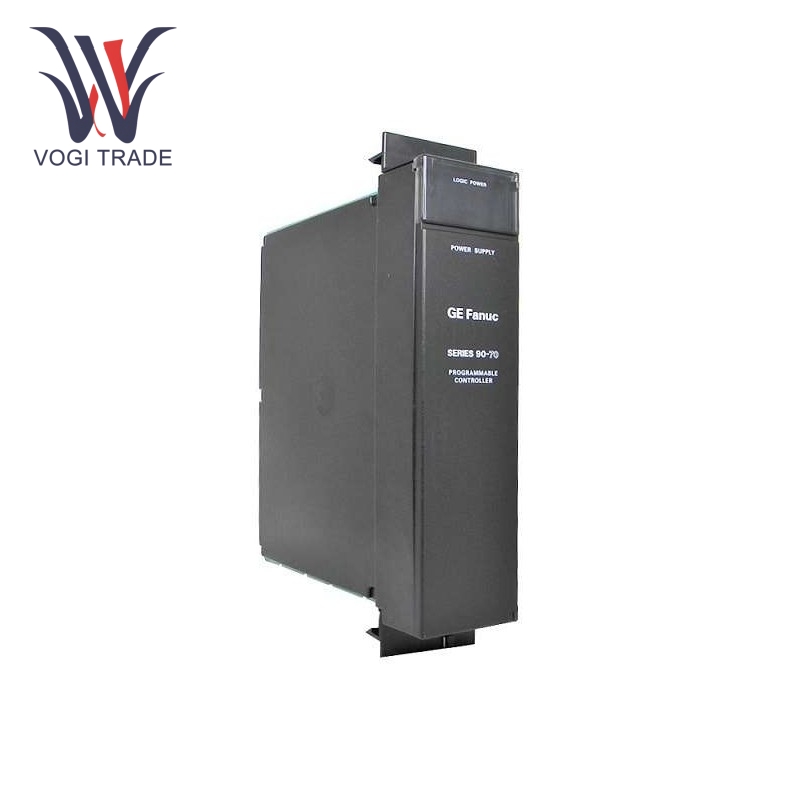

GE IC697PWR722

Brand: GE
Description:Power Supply Module
Condition:New
Certificate:COO TEST REPORT WARRANTY LETTER
Warranty:1 year
Inventory Qty:12
Payment term:T/T
Shipping Port:ShenZhen
The GE IC697PWR722 is a high performance 24 VDC, 90 Watt power module designed for the GE Fanuc 90-70 Series. With its wide input voltage range, multiple regulated output voltages, comprehensive protection features, and flexible mounting options, it provides a reliable and efficient power solution for a variety of industrial applications.

Send Inquiry

Product Description

Manufacture
GE
Model Number
IC697PWR722
Ordering Number
IC697PWR722
Catalog
-
Country Of Origin
United States (US)
HS CODE
8517795000
Dimension
6.3*29.2*22.2cm
Packing Dimension
8*32*25cm
Weight
0.6kg

Working Parameters

Input Voltage: The nominal rated input voltage of GE IC697PWR722 is 24 VDC, and the input voltage range is +21 VDC to +32 VDC. The wide input voltage range makes the power supply selection more flexible while ensuring stable operation within certain limits of public grid voltage fluctuations.

Output Power and Voltage: At 90 watts input output power, the module provides three regulated DC output voltages: +5 VDC @16.5 amps, +12 VDC @1.5 amps, -12 VDC @1.0 amps. Such a large number of output voltages can simultaneously meet the power needs of different components or circuits in industrial control systems.

Power Consumption: At full load, the input power is equal to 156 volts, which means that its power conversion efficiency is related to the amount drawn from the input source to establish the required output power.


Product Features

Control System Power Supply: This device is a very reliable power supply module for GE Fanuc 90-70 Series PLCs and other related control components. It provides a stable, steady DC power supply to ensure that these devices operate properly, avoiding disturbances such as power surges or power outages that may cause control system performance degradation.

Overcurrent and Overvoltage Protection: The IC697PWR722 has electronic short circuit overcurrent protection on all outputs, so it protects connected components from damage due to excessive current. It also protects electronic devices from overvoltage conditions, ensuring that they do not fail prematurely during use. Therefore, the module can react promptly when abnormal current or voltage levels occur, handling faults and equipment safety.

Logic Shutdown Signal: A TTL-compatible logic signal is generated from the module through the logic shutdown signal. It can be used to coordinate the shutdown or startup sequence of system components, allowing orderly operation during power-up or power-down, which is essential to maintain control process amplitude.

Flexible Mounting Options: It can be mounted in the leftmost slot of the rack or used as a standalone unit. This provides users with installation flexibility to meet application specifications and space constraints. This adaptability allows it to have a wide range of industrial control cabinet design configurations.


Application Scope

Industrial Automation: The IC697PWR722 is widely used in industrial automation systems, such as manufacturing plants, to power programmable logic controllers (PLCs), input-output (I/O) modules, light sensors, and other control devices. With a stable power supply, it contributes to the smooth operation of automated production lines, thereby improving service production efficiency and improving product quality.

Process Control: In the chemical, pharmaceutical, and food processing industries, strict control of processes is essential, and the IC697PWR722 powers control systems for monitoring and controlling parameters such as temperature, pressure, and flow. With consistent and reliable power output, the product ensures stable and accurate loop control for consistent product quality and safe operation.

Machine Tool Control: This power module is used in the manufacture of CNC machine tools, milling machines, and lathes to provide the necessary power for the control electronics commonly used in these machine tools. This enables precise tool movement, spindle speed, and various functions to machine parts with high precision.

Building Automation: In any building management system, it can be used to provide the power required to control the HVAC system, lighting control system, and access control system. It creates a comfortable, energy-efficient, and highly reliable working environment for other building automation functions.

Hot Tags: GE, IC697PWR722, Power Supply Module
