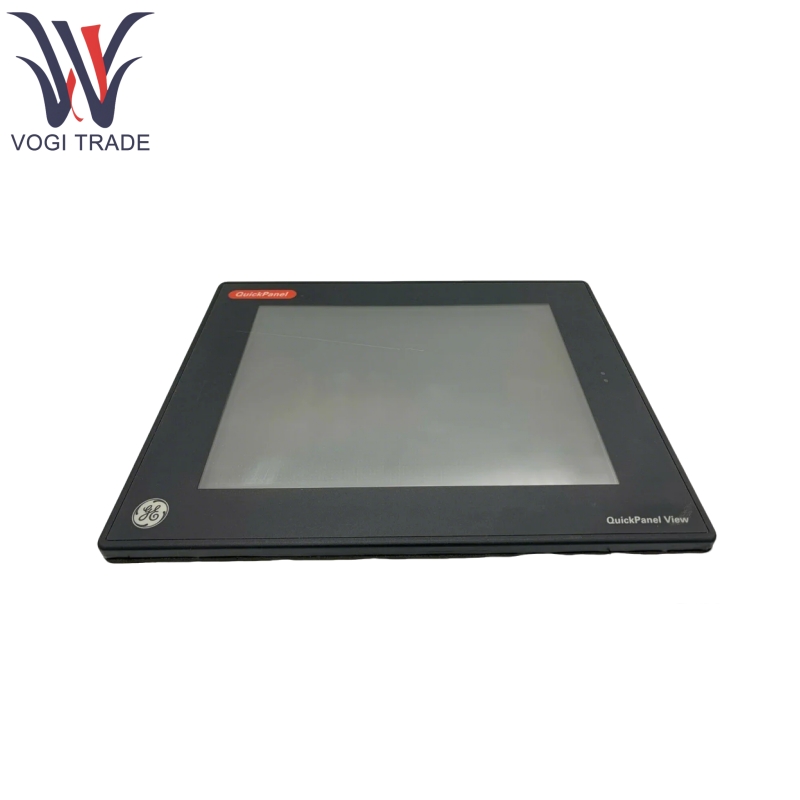

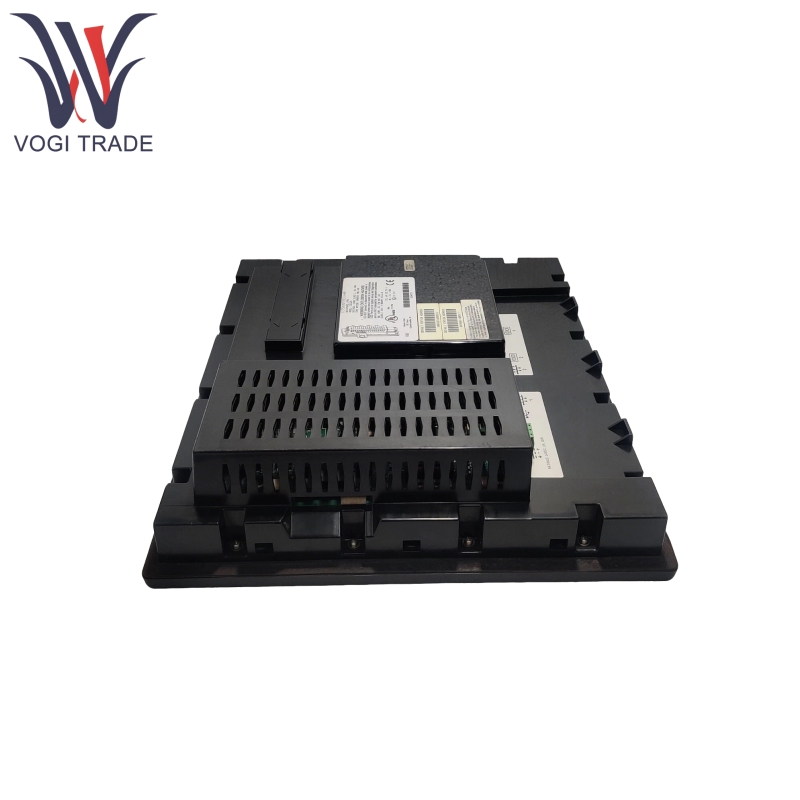

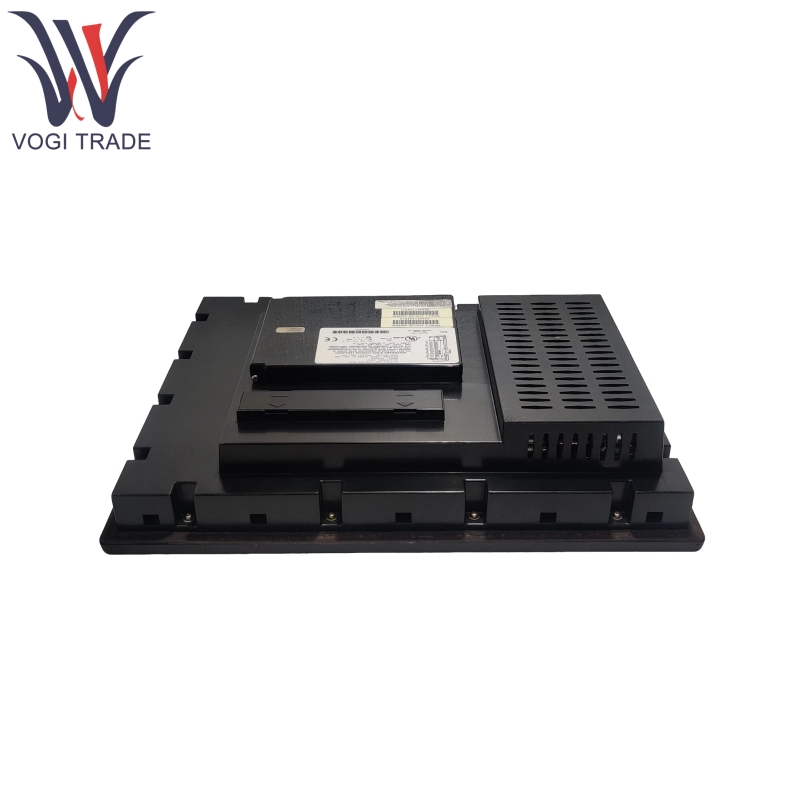

Brand: GE Description: Human Machine Interface Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen GE IC754VSI12CTD Human Machine Interface is a 12-inch color TFT touch screen with resistive touch screen, providing operators with an intuitive human-machine interface for monitoring and controlling industrial equipment. It provides visualization, monitoring and operation interfaces for medium to large-sized industrial automation applications, and connects to PLCs (e.g., GE Fanuc series, and other PLCs that support standard protocols) for data interaction.
|
Manufacture |
GE |
|
Model Number |
IC754VSI12CTD |
|
Ordering Number |
IC754VSI12CTD |
|
Catalog |
QuickPanel View |
|
Country Of Origin |
United States (US) |
|
HS CODE |
8537101190 |
|
Dimension |
32*24*6cm |
|
Weight |
2kg |
Product Features
With a resolution of 800 x 600 pixels or higher, GE IC754VSI12CTD displays images and text clearly.
GE IC754VSI12CTD supports 1 x Ethernet (10/100Mbps), 2 x RS-232, 1 x RS-485, 1 x USB 2.0 (Host/Device) for easy integration with other systems.
Its built-in battery-backed SRAM ensures that data is not lost in the event of a power failure.
GE IC754VSI12CTD supports a variety of graphical displays, alarm management, data logging and other functions.
Its operating system is Windows CE 6.0, compatible with GE Proficy software.
GE IC754VSI12CTD has high performance embedded processors such as ARM Cortex-A8 or XScale microprocessors.
Memory: 4GB DDR3 memory and 64GB SSD storage
Operating temperature range: -20°C to +60°C
Protection rating: IP65
Power input: AC120V or AC230V
Product Working Principle
1. GE IC754VSI12CTD allows engineers to use GE Proficy Machine Edition (ME) HMI software to create graphical applications on a PC, which includes designing operator screens, defining communication tags with the PLC, configuring alarms, data logging, trending, security permissions, and more.
2. Set the communication parameters (protocol, port, station number, baud rate, etc.) between the HMI and the target PLC in the software, GE IC754VSI12CTD supports a wide range of protocols and integrates well with GE PLCs (90-30, RX3i, VersaMax PLCs, etc.) in particular, as well as common protocols such as Modbus RTU/TCP for connecting to other brands of PLCs.
3. GE IC754VSI12CTD can download the compiled HMI runtime application (.MER file) to the Flash memory of IC754VSI12CTD via Ethernet or serial port (usually COM2).
4. After the HMI is powered up, the stored application program is loaded and run, the HMI actively polls or passively receives data from the PLC via the serial port (COM1) or the Ethernet port (ETH1), depending on the configuration.
5. Process data (values, status lights, bar graphs, trend graphs, etc.) are displayed on the touch screen. The operator sends commands or set values to the PLC by touching buttons, input fields, and other elements.
6. GE IC754VSI12CTD receives alarm messages triggered internally by the PLC or HMI and displays and records them, and can store data records via CF card.
Product Applications
GE IC754VSI12CTD is suitable for industrial automation applications that require a medium-sized touch screen for monitoring and operation, especially in systems using GE PLCs:
Factory Automation (FA): production line monitoring and control, equipment status display, parameter setting, troubleshooting.
Process control: water treatment plants, chemical, pharmaceutical and other industries, process monitoring, parameter display and adjustment, batch management.
Machinery Control: operator panels for large machinery and equipment (e.g., injection molding machines, packaging machines, printing presses), providing complex operation sequences and status feedback.
Energy Management: distribution system monitoring, energy data visualization.
Building Automation: HVAC system monitoring (large buildings).
Infrastructure: pump station monitoring, traffic control systems.
Material Handling: warehouse automation, conveyor system monitoring.
