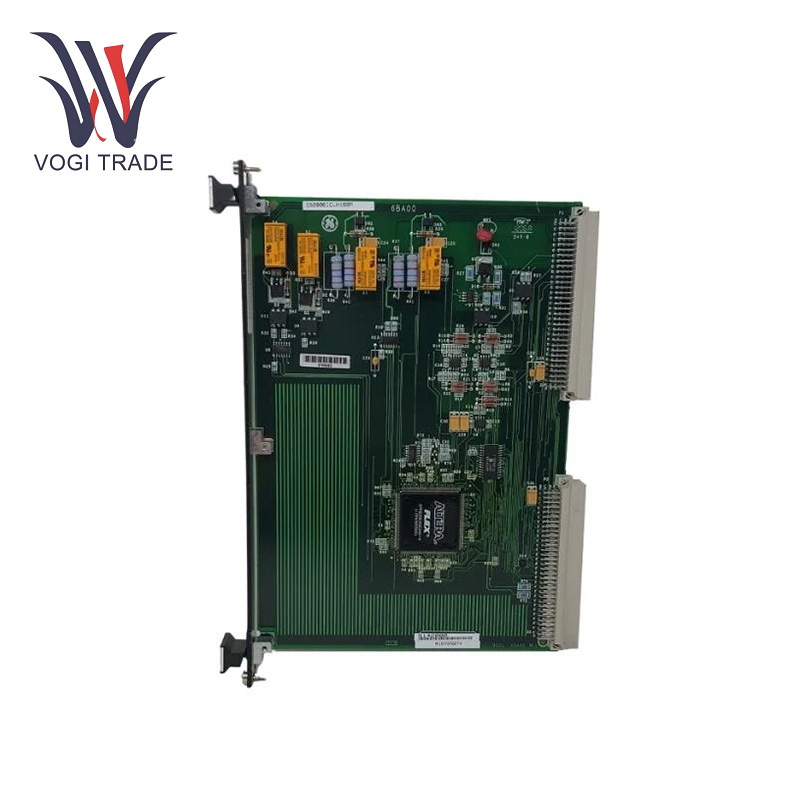

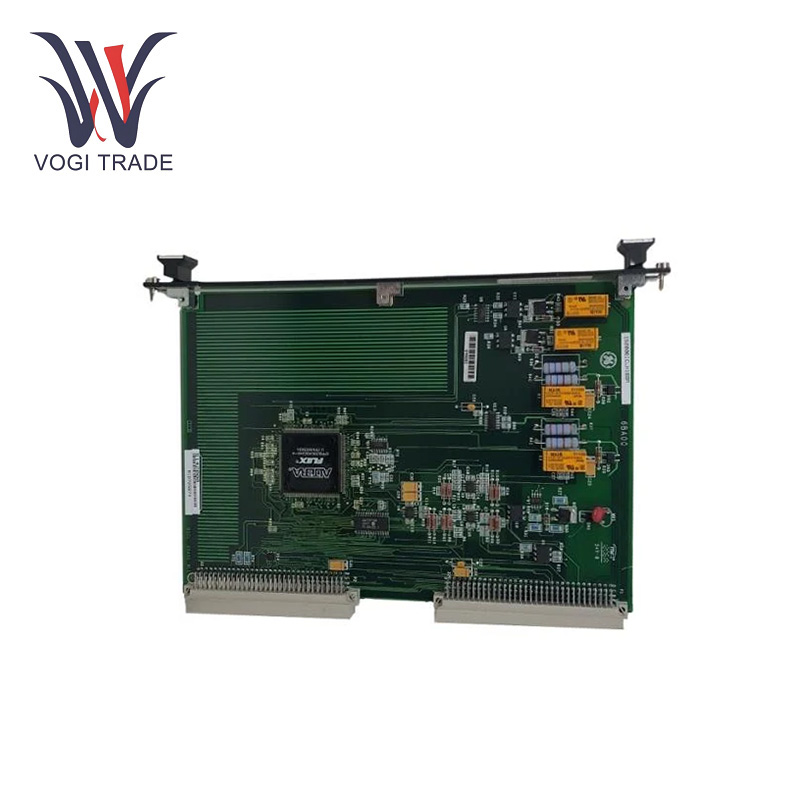

GE IS200BICLH1BAA

Operation Parameters

Supply voltage: 24 VDC

Voltage tolerance:  ±10%

Power draw: 8 watts

Usually 24 VDC

Example of relatively simple digital input: Binary (on/off) digital signal, which indicates the status of a switch or a sensor or an alarm (open or closed).

Input voltage range: (Normal operating range): 10 VDC to 30 VDC

Outputs: Relay (contacts) or solid-state digital.

Output voltage : 24 VDC.

Output current: 1 A per

Signal type: Digital signals (on/off) and discrete signals (current or voltage) are interfaced with the module, which are processed as per sensor and actuator specifications.

Temperature: -40°C to +70°C (-40°F to +158°F)

Product Features

Signal Processing: Digital and analog signals from sensors (such as temperature, pressure or flow sensors) are processed and converted into a format suitable for consumption by a centralized control system.

Digital Output：A common form of output support mounts swords. This is important for mechanical or process control systems.

Data Communication: One of their key functions is to communicate data received from field devices to central processing systems, with theGE IS200BICLH1BAA facilitating this crucial role.

Diagnostics and Monitoring : GE IS200BICLH1BAA also performs diagnostic functions by identifying fault conditions or abnormal input signals and signalling the control system to take necessary action.

Safety and protection: Something very important goes without saying, critical systems like turbines have the module in place to protect operations, input signals in the module are constantly monitored for any abnormalities, and then the fail-safe protection mechanism comes into play.

Overcurrent Protection: the module is protected against any potential overcurrent condition with built-in circuitry to prevent damaging current from flowing through the system.

Overvoltage Protection: GE IS200BICLH1BAA has built-in protection mechanisms to prevent voltage spikes and transients, safeguarding connected circuits and components from damage.

Input or Output Short Circuit Protection: This GE IS200BICLH1BAA has input or output short circuit protection, preventing potential short circuit causes module failure.

Protection against Reverse Polarity Power: Some versions may offer reverse polarity protection on the power supply to prevent damage during installation or wiring mistakes.

Isolation: Provides galvanic isolation across inputs/outputs and internal electronics to ensure that external electrical noise or an electrical fault does not disrupt or damage internal processing.

Communications Protocols: Modbus RTU/ASCII Supports Modbus and Other Standard Industrial Communication Protocols, The GE IS200BICLH1BAA is compatible with common industrial communication protocols like Modbus, enabling easy integration with a variety of control systems.

Protection level: IP20 (inadequate for water, but provides protection for solid objects bigger than 12 mm). Using inside a control panel offers even more protection.

Shock and Vibration Resistance: The module can withstand industrial-grade shock and vibration in typical industrial environment.

Humidity range: Normally between 5% and 95% non-condensing relative humidity, making it appropriate for nearly any environment, but care should be taken to prevent condensation.

Application Range

It is mainly used: in the control and management systems of GE-aligned gas, steam, and even wind turbine automated drive assemblies, playing a key role in ensuring the normal operation and efficient control of these turbines.

Troubleshooting

Module Fails to Power On:Verify power connections. If necessary, give the XML interface, the electric connection of the voltage (24 VDC or 125 VDC) provided to the module.

Communication Failures:module not communicating with the central controlVerify the communication wiring.

Overheating: Install the module in a cool environment and ensure that the temperature does not exceed the maximum operating temperature range of -40°C to +70°C.

Troubleshooting:Relays Not Activating, Check the relay outputs and ensure that the signals are being delivered as expected.
