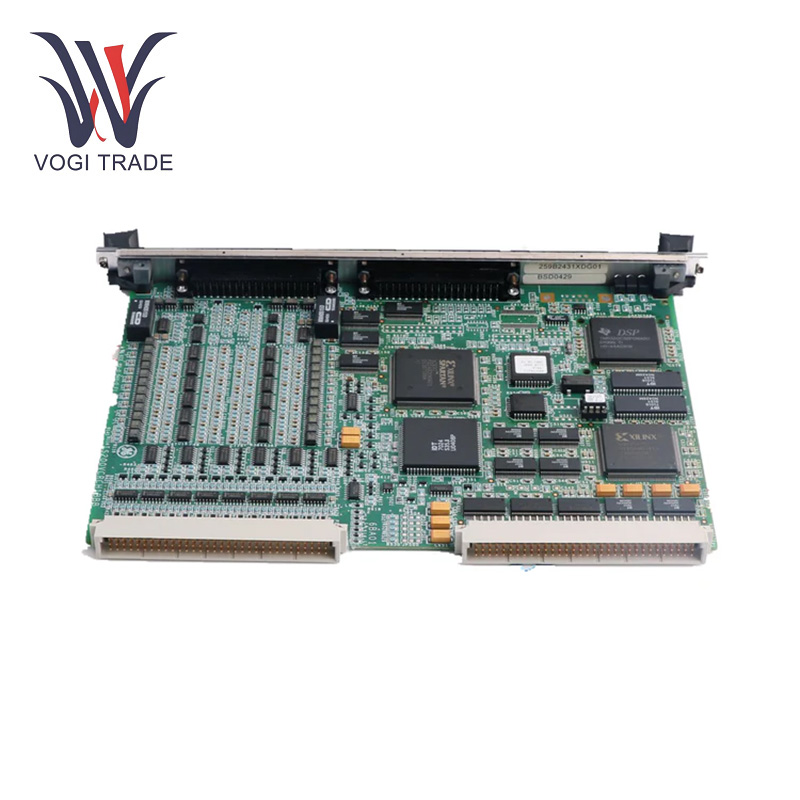

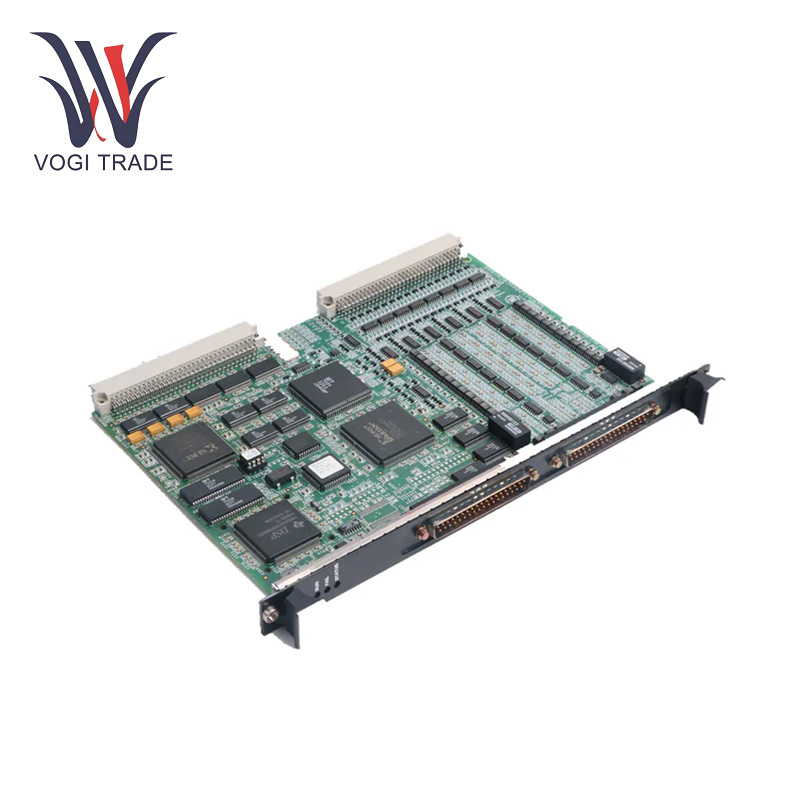

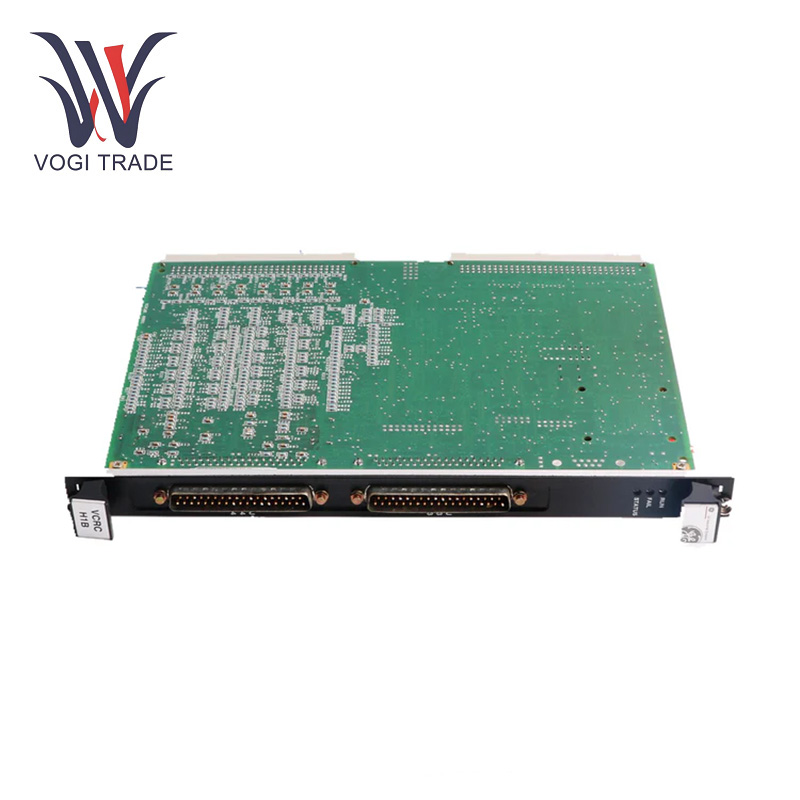

Brand: GE Description: Relay Output Terminal Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: ShenZhen GE IS200DRLYH1BBB is a programmable controller with high programmability, handling 32K I/O via adjustable languages. Its 300Mhz processor and 10Mbytes memory ease complex tasks.
Manufacture |
GE |
Model Number |
IS200DRLYH1BBB |
Ordering Number |
IS200DRLYH1BBB |
Catalog |
Mark VI |
Country Of Origin |
USA |
HS CODE |
8479909090 |
Dimension |
40cm*30cm*5cm |
Packing Dimension |
42cm*32cm*7cm |
Weight |
1.5kg |
Operating Parameters
Power Supply Voltage: 24 VDC.
I/O Points: 16 digital input points, 16 digital output points.
Operating temperature range: -40 °C to 85 °C.
Temperature Range For Storage: -55°C to 125°C.
Processor Speed: 300Mhz.
User Memory: 10Mbytes.
Product Features
Supported high level of programmability: GE IS200DRLYH1BBB is a programmable controller. Under different adjustable standard programming languages, it can handle around 32K I/O. Having a 300Mhz processor and 10Mbytes of user memory enables the CPU to handle complex applications easily making taking customization of functions a breeze for users depending on different needs.
Flexible Communication Capability: It has various communication interfaces that help with device and system communication. It might contain an RS-485 interface to use for serial communication, and an Ethernet interface for high-speed data transmission, giving data exchange and control commands between different scenes in specific industries.
Efficient Diagnostic Mechanism: The module is equipped with a broad range of diagnostic functionality. It is capable of continuously monitoring its own operational status and methodically identifying potential faults where present. This assists in minimizing downtime, as well as increasing the overall system's stability and reliability. In the event of malfunctions, it can give detailed diagnostic information to help maintenance personnel quickly locate and fix the issues.
Installation
Chassis: GE IS200DRLYH1BBB is typically housed inside a standard industrial chassis. Make sure the chassis is stable and correctly grounded. Now, properly align the module with its dedicated slot in the chassis and gently insert it until it snaps in.
Troubleshooting
Power failure: If GE IS200DRLYH1BBB does not work and the power indicator light is off, please first check if the power supply cable is connected correctly and whether the power supply voltage is normal.
Check communication cable connection for looseless and destruction in communication failure. Verify that the communication parameters of the module and the connected devices, such as baud rate, data bits, and parity bits, are consistent. If such a scenario does exist, then silence on the output end could also be because of a damaged communication interface or a defect in the final software that was burned, and this is an area that needs to be focused on in the next round of debugging.
When Joints and Replacing Loose: If the input and output signals of the module are abnormal, first check whether the signal connection cables are loose, broken or short-circuited. Finally, verify that both the signal output and plugged-in devices are functioning normally.
Application range
Power Generation Units: GE IS200DRLYH1BBB is utilized in power generation machinery control, power grid monitoring, and power distribution management. By accurately controlling the operation of the generator, adjusting power output, and monitoring power transmission line status, it guarantees the stable operation of the power grid and reliable power supply. For instance, in thermal power stations, it is used in the control of boiler and turbine systems and in hydropower stations, in the regulation of water turbine generators.
Petroleum and Chemical Industry: In this industry, this module is commonly used in the control systems of oil extraction, refining and chemical production processes. It also can monitor temperature, pressure, flow rate and other parameters, realize the automation and intelligentization of production process. As an illustration, in the oil refining process, it oversees the opening and closing of valves and the operation of pumps, while in chemical plants it manages the reaction processes of chemical materials.
Metallurgy: Blast furnace, steelmaking furnace, rolling mill automation control It can adjust the temperature and composition of molten steel, change the speed and pressure of rolling mills, and further improve the quality and production efficiency of metal products. In steelmaking process, for instance, it accurately controls the blowing quantity and blowing time of oxygen to meet the steel quality requirements.
