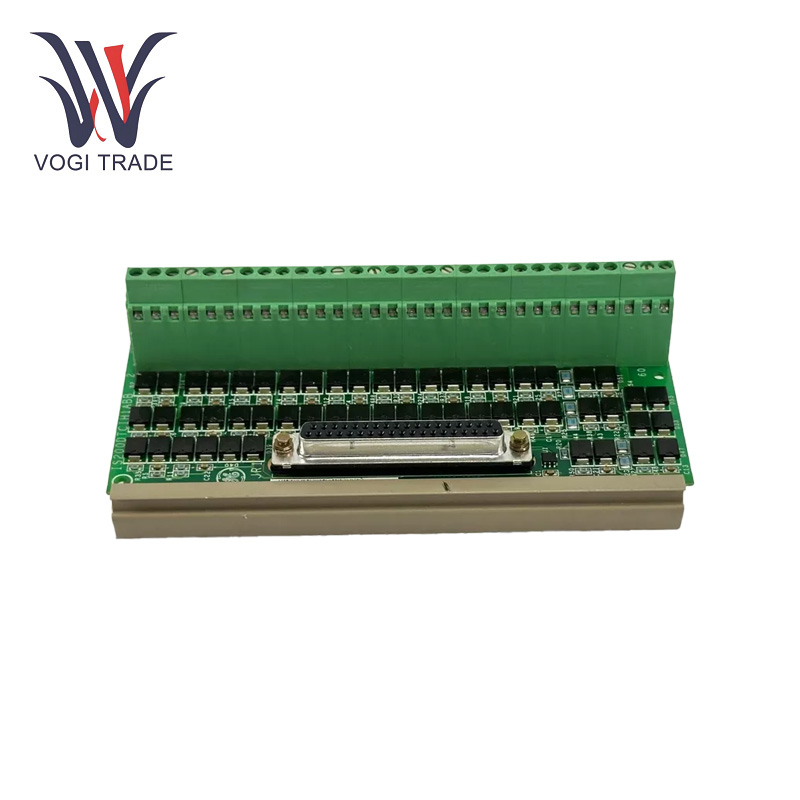

GE IS200DTCIH1ABB

Operating Parameters

Operating Voltage: 24V DC.

Input Signal Types: 0 - 10V, 4 - 20mA.

Signal Types Out: 0 - 10V, 4 - 20mA.

Communication Interface: Ethernet interface 10/100Mbps RS485 interface baud rate: 9600 - 115200bps.

Terminal Number: 48 terminals.

Working Temperature:-20°C~70°C.

Operating Temperature Range: -40°C to 85°C.

Protection Level: IP20.

Product Features

High Compatibility: it is an optimized machine part that is highly effective in operating on different GE systems It is capable of collaborating with other elements in the configuration, allowing for effortless interaction and harmonized functioning. Also, it could be integrated seamlessly into existing industrial control systems, requiring fewer updates to existing setups and making it easier to make upgrades and expansions.

Advanced Signal Processing: Features sophisticated signal processing electronics that can accurately receive, process, and transmit signals. It supports the control and monitoring of analog and digital signals for the precise control of industrial processes. For analog signals, it is equipped with a high resolution analog-to-digital converter function, which can precisely sample and transform the analog input signal, and further process the received signal. In instances such as digital signals, it is capable of rapidly and accurately recognizing and transmitting signal information, ensuring the reliability and timeliness of data delivery.

Comprehensive Self-diagnosis: GE IS200DTCIH1ABB is Equipped with a Comprehensive Self-diagnosis Function It constantly checks its own operating state, such as the status of internal circuits, power supply condition, and communication status. It can give an immediate alarm signal and record fault information if any abnormal conditions or faulty are detected. The self-diagnostic capabilities not only help to identify issues quickly but also aid in the maintenance and troubleshooting process, which ultimately decreases the cause of lost productivity and improves system reliability and maintainability.

Installation

The initial step is to establish the panel mount for GE IS200DTCIH1ABB on the control panel. Make sure the panel is flat and solid. Use screws to fasten the device to the panel by aligning the mounting holes of the device with the panel holes. It is crucial to tighten the screws evenly so as not to warp the device or create poor contact.

Troubleshooting

Communication Failure: If GE IS200DTCIH1ABB does not communicate with other devices, the first step is to check whether the communication cable is connected correctly and whether there is any damage or disconnection. Next, check the serial configuration of the device (baud rate, data bits, stop bits, parity bits, etc) to be sure they match those of the connected devices.

Abnormal input signal: If the input signal is not stable or incorrect, check the signal source device first, such as whether the sensor is normal, whether the output signal is normal. Next, see if the input cable is receiving interference or poor grounding. Attempt rewiring or enhance the grounding arrangements. If the input channel of GE IS200DTCIH1ABB does not have the problem, it is possible that the device has some hardware fault and needs to be serviced.

Output Fault: If it output cannot normally control the external device, or the output signal is abnormal, first check whether the output cable is correctly connected and whether the connection points are loose. Then, check if the external device works in good condition, and if there are overloading or short circuits. Also, check if the output parameters of the device are correct.

Application range

Power Generation Industry: GE IS200DTCIH1ABB is often found in power generation systems such as gas and steam turbine power plants. This is used to overObserve and Manage essential factor of turbines like temperature factor, strain and rotation process. By adjusting these parameters with precision, it ensures the stable and efficient operation of turbines, enhancing power generation efficiency and reducing energy consumption. In addition, it can also act as a communication interface with other power grid control systems to coordinate grid connection and power output, which is beneficial for maintaining grid stability.

Industrial Automation：This device is widely used for the control of various production processes in industrial automation production lines. It may be utilized to manage the movement of mechanical arms, the operation of conveyor belts, and the registration evaluation of products. It realizes accurate control of the start and stop and speed of each electrical device, optimizes the production process, improves production efficiency and product quality, reduces labor costs. As an example, it can control the welding robots in an automobile manufacturing plant to ensure the accuracy and quality of welding operations.

Petrochemical Industry： It can measure and control parameters of the petroleum and chemical material flow process, such as flow rate, pressure, composition and so on. It fine-tunes them to keep the production process safe and stable, avoiding accidents while also enhancing product quality and yield. For example, the temperature and pressure of distillation towers can be controlled to meet the quality requirements of refined oil products in the oil refining process.
