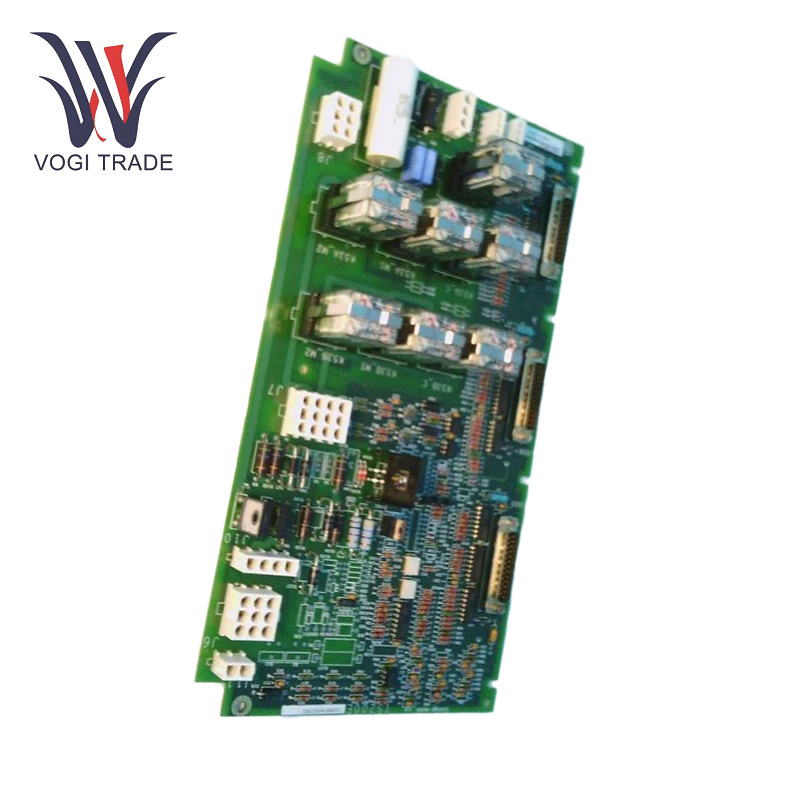

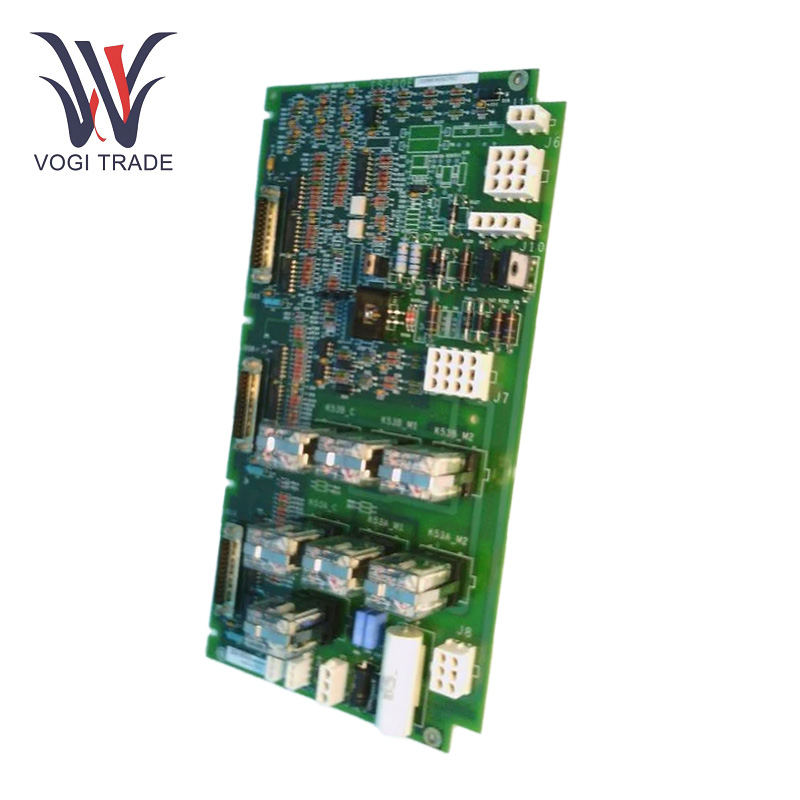

GE IS200EHPAG1DCB

Operating Parameters

Power Supply: 24 VDC

Real Time Timer : Automatically switches Control ON or OFF.

Operating Temperature: -40°C to +70°C.

Protection──Overcurrent, overvoltage, short-circuit and reverse polarity protection.

And communication: Supports Modbus RTU/ASCII and RS-232/RS-485 protocols.

Voltage Tolerance: It works well in the voltage tolerance range of ±10% of the nominal power supply.Motion detection mode: non-motion detection mode.

Power Consumption: Normal power consumption is ~8 W, but can vary according to load and running conditions.

Voltage Input Range: 10 VDC to 30 VDC (Digital input device)

Type of the answer: Mostly used to accumulate binary (On-Off) signals from field devices (thermo sensor, switches, etc.)

Current Rating: Relay contacts can switch loads up to 1 A.

Output Type: Relay or solid-state, depending on model

Product Features

Signal Acquisition and Digital Processing: The GE IS200EHPAG1DCB constantly supervises and processes digital signals from field devices and status indicators. This information is received by the control system, helping it make real-time decisions.

Output Control Functionality: By processing the input signals, the module can also articulate control signals i.e. logical high or low output to specific channels to perform specific relay actions or to respond to other devices.

Diagnostic and Fault Monitoring:The module features internal diagnostics capable of determining whether connected field devices or wiring exhibits a fault. Fault conditions are reported to the central control system, enabling rapid remediation.

Communication with Control System:The GE IS200EHPAG1DCB uses Modbus RTU/ASCII, RS-232, or RS-485 to talk to other modules and the central control system for seamless communication with other systems and centralized control.

Overcurrent Protection: which protects the module from damage when the current is too large.

OverVoltage Protection: The module is introduces with a special feature of overvoltage protection that protects from overvoltage conditions, thus protecting the module itself and the devices connected in the field.

Short Circuit Protection: GE IS200EHPAG1DCB has short-circuit protection and works normally in case of wiring faults or device malfunctions.

Reverse Polarity Protection: The integrated reverse polarity protection circuit prevents damage to the system in the event of incorrect power supply connection.

Galvanic Isolation: Provides galvanic isolation between input/output and internal signal circuits to prevent electrical noise or faults from compromising system performance.

Application range

Power Generation: The GE IS200EHPAG1DCB is essentially utilized in the gas turbine control and steam turbine control frameworks used to shroud and control field devices, for example, pressure and temperature sensors, valves, and relays.

Oil and Gas: GE IS200EHPAG1DCB can be used in the oil and gas industry to automate and monitor equipment such as pumps, compressors, and gas turbines, helping to meet safety and performance standards.

Industrial Automation: The GE IS200EHPAG1DCB is widely used to control essential equipment, process sensors, and complex automated systems in manufacturing and other industrial settings.

Safety And Protection Systems:It is used in safety-critical applications such as shutdown systems and emergency control circuits monitoring faults and forcing the system into an automatic shutdown or alarm condition if required.

Troubleshooting

No Power:Verify the connections of the power supply for the appropriate voltage (24 VDC or 125 VDC).

Faulty Inputs/Outputs:Check the wiring and look for loose or disconnected cables, specifically for the input/output terminals.

Communication Failures:Check the communication settings in the system configuration (baud rate, address, etc.)

Overheating Make sure: there is enough ventilation around the module to prevent overheating. Verify that environmental conditions are within the operating temperature range of -40°C to +70°C.

Diagnostic LEDs:Use the Diagnostic LEDs to help with identifying the error codes or fault conditions.
