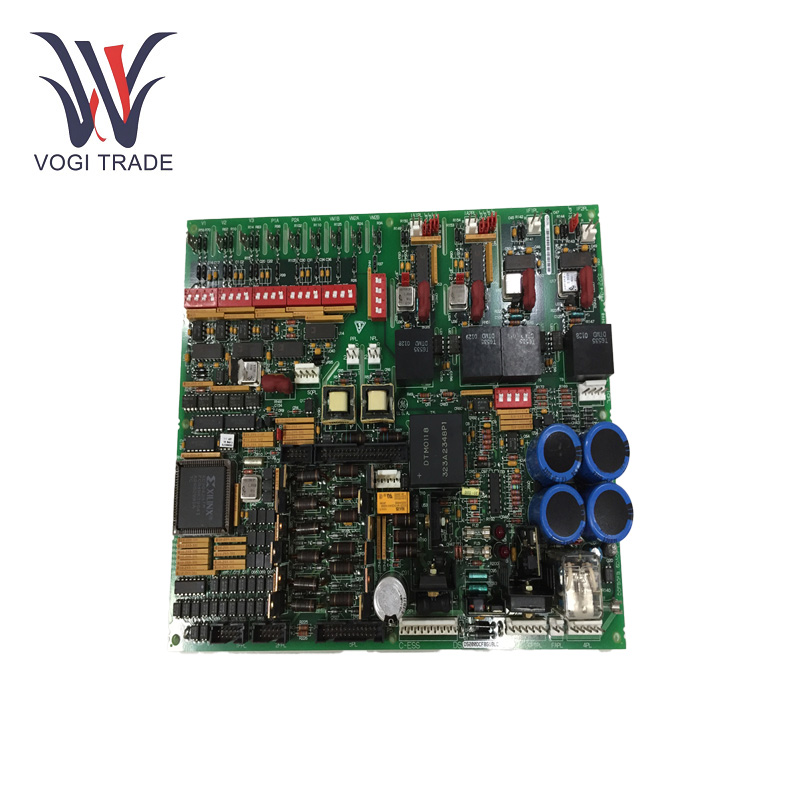

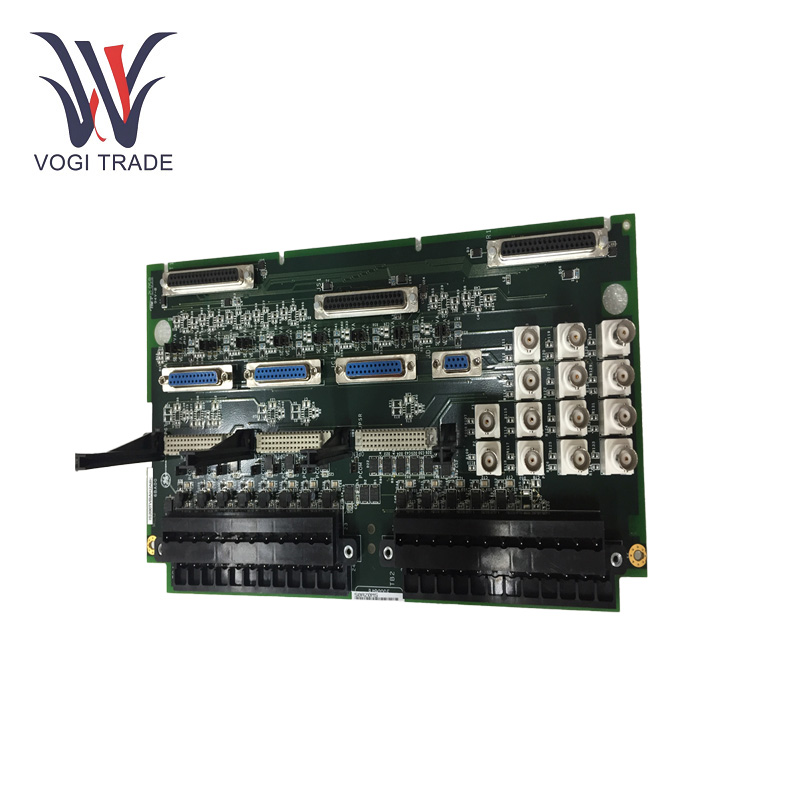

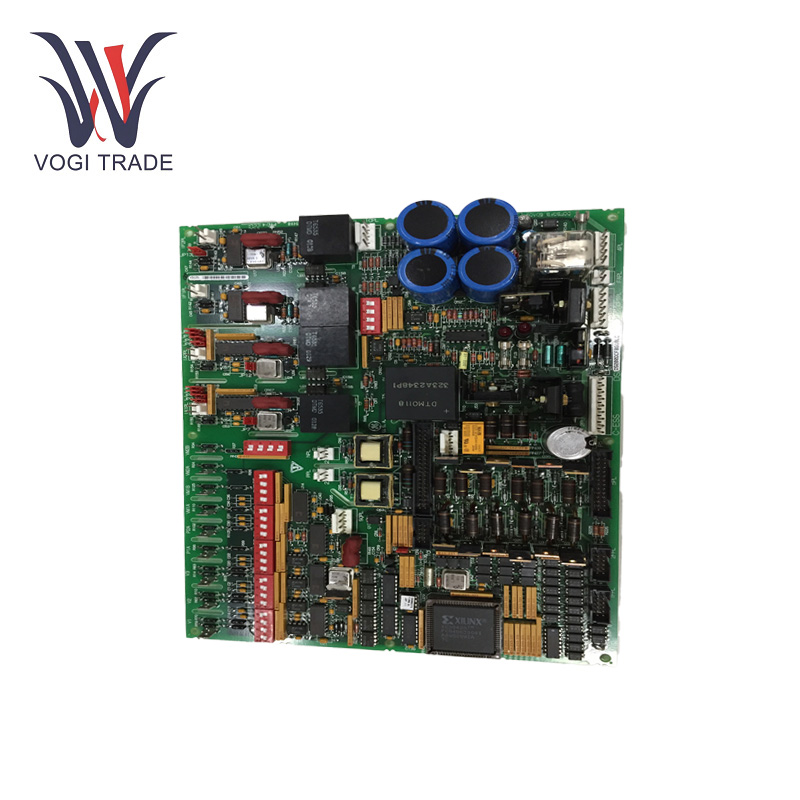

GE IS200ISBBG1AAB

Operating Parameters

Operating Voltage: 24V DC.

Input Signal Types: 0 - 10V, 4 - 20mA.

Terminal Number: 32 terminals.

Operating Temperature Range: –20° to 70°C.

Operating Storage Temperature : -40°C to 85°C.

Protection Level: IP20.

Product Features

fast data transmission: advanced communication circuitry built into GE IS200ISBBG1AAB allows for fast data transmission It helps ensure highly accurate and timely information exchange by being able to quickly and accurately transmit various data signals between the device and other components in the industrial control system. It can, for example, transmit real-time monitoring data of production equipment and control instructions at a high speed in a complex industrial automation production line, which can make the whole production process coordinated and optimized.

High-Accuracy Signal Processing: This device has the ability to filter and amplify weak input signals, allowing the device to provide more stable and reliable signals. It also correctly recognizes types of signals as analog signal and digital signal. It can achieve high precision analog to digital conversion for analog signals; for digital signals, it can rapidly analyze and determine signal states, thereby providing a solid basis for industrial process precise control.

Multi Interface Compatibility：GE IS200ISBBG1AAB has designed a variety of interfaces, which are compatible with different kinds of devices and systems. Via various interfaces like Ethernet interfaces, RS485 interface fiber-optic interfaces, etc, it can be easily connected to sensors, actuators, controllers, and other equipment. The diversity of interface compatibility makes it widely adaptable in different industrial application scenarios, and can be seamlessly integrated into various industrial control systems.

Installation

Panel Mounting: Choose a suitable location on the control panel for the mounting module. Ensure that the panel is flat and firm. Position GE IS200ISBBG1AAB to the mounting holes on the panel and secure it with screws. Caution: Tighten screws on both sides evenly, and do not over-tighten them, as this may warp the device or not make good contact.

Troubleshooting

Communication Connection Failure: In the event of a communication failure between GE IS200ISBBG1AAB and other devices, check on the communication cable, to see if it is connected properly or is damaged/disconnected. Next, you can check the communication parameters of the device including the baud rate, data bits, stop bits, and parity bits, to see that they match with the other connected devices.

Abnormal Input Signal: The input signal is not stable or error, first check the input source device, such as sensor working properly, output signal is in the normal range. If the above does not solve the problem, check if there is interference or bad grounding between the input cable. Reinvent or Reinforce grounding measures If this persists, it is probable that GE IS200ISBBG1AAB's input channel is defective, and you must examine and repair the device.

Output Failure: When the output of it cannot normally control the external device or the output signal is not as expected, first check whether the output cable is connected correctly and whether the connection point is loose. Then, see if the external device functions normally and the overload or short circuit. Also, check how the device output parameters have been configured.

Application range

Power Generation Industry：GE IS200ISBBG1AAB is a major component in power plants particularly in thermal power, hydropower and nuclear power generation systems. It provides a method for gathering and sending live details of different specs of energy age hardware—temperature, pressure, and aroundabout rapid of turbines, voltage, and current of generators. It helps operators to timely adjust the operation status of the power generation equipment by monitoring these parameters in real time, which can ensure the safe and stable operation of the power generation system and improve the power generation efficiency.

Petrochemical Industry: it is widely used in the monitoring and control of production lines in the petrochemical production process. It is responsible for the collection and processing of data such as the flow rate of the petroleum and chemical raw material, pressure and composition, and the transmission to the central control system. The control process parameter to make sure the stability and safe in the production process, improve the product quality, so as to reduce the energy consumption and production cost.

Metallurgical IndustryIn the metallurgical industry, such as steel mills (smelting, rolling lines) and aluminum plants, it is used to control the operation of continuous casting machines and rolling machines. It is capable of monitoring and controlling the temperature, humidity and gas composition in the smelting furnace, and the speed and pressure of the rolling mill. Proper control of these parameters contributes to the quality of metal products and reduced production loss, thus improving the production rate.
