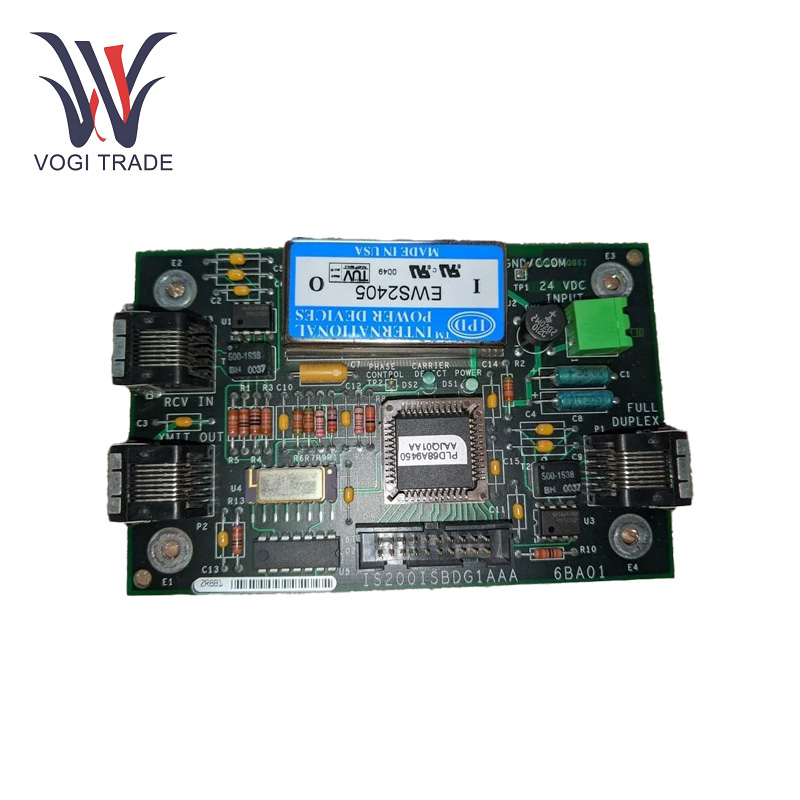

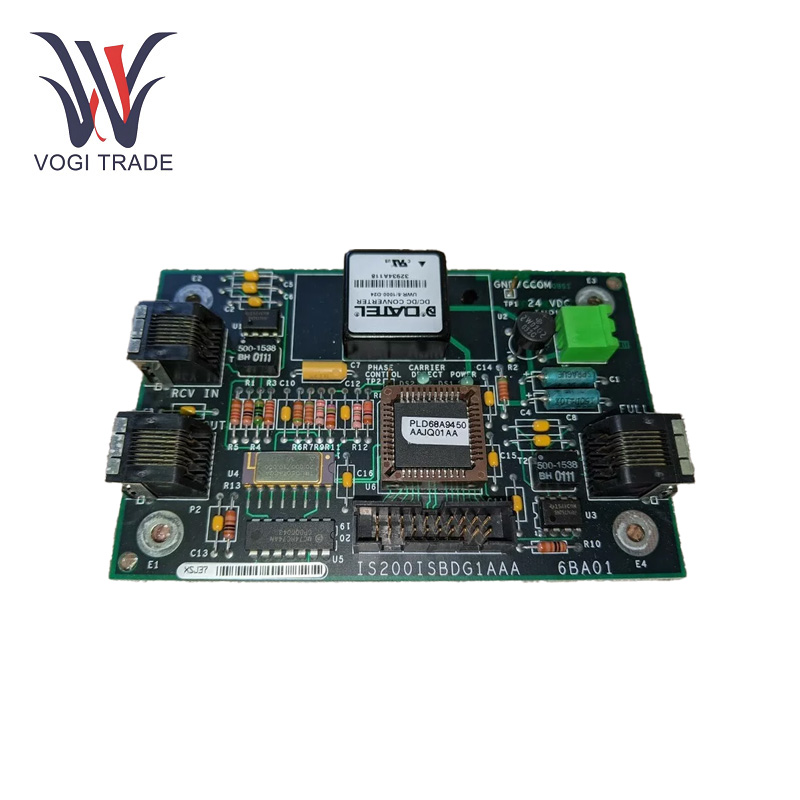

GE IS200ISBDG1AAA

Operating Parameters

Operating Voltage: 24V.

Output Current: 5A.

Input Signal Range: 0 - 10V.

Communication: Ethernet and RS485.

Signal Resolution: 12 bits.

Work Temp Range: -20 ∼ 60.

Operating Temperature: −40 °C ~ +85 °C.

Product Feature

Reliable Communication Capability: GE IS200ISBDG1AAA comes with state-of-the-art communication interfaces for steady and high-speed data transfer. It can usefully interface with others in the system. E.g. It can swiftly transmit control commands and feedback data which is imperative for the regular working of the whole mechanism.

High Signal Processing Capacity: GE IS200ISBDG1AAA shall accurately process different input signals through a powerful signal processing unit. GE IS200ISBDG1AAA can carry out accurate conversion, amplification, filtering and other operations regardless of analog signals or digital signals. It guarantees that the device is capable of processing intricate signals and it provides precise data for further control and analysis.

Highly Configurable: Provides high application-specific configuration and set up. Suited with application parameters that are definable in software or hardware and that can be altered such as communication protocols, signal thresholds, and control modes, this is adaptable to a variety of application scenario meets specific needs.

Installation

GE IS200ISBDG1AAA mounts to a standard DIN rail: Make sure that the DIN rail is securely mounted and attached. Afterward, position the mounting holes of the device onto the DIN rail and tighten the fastening screws accordingly to attach the device to the rail. Just really useless while the screws are tightened evenly for loose or loosen. For panel mounting, the user needs to first measure and cut a hole on the panel according to the size of the device, insert the device through the hole from the front of the panel, and hold it in place with nuts or clips from the back of the panel. Make sure that the device is properly fixed and the gap or shake is missing.

Troubleshooting

Communication Failure: First, check whether the communication cable is connected correctly, and check whether it is damaged or loose. What steps should you take to troubleshoot a connection failure First, verify that your device and the connected device are powered on, unchanged, and within communication range. Try restarting the comms device if need be, or resetting the comms itself.

Uneven Input Signal: When you input an unusual signal, first verify whether the signal source is functioning normally and whether the output signal of the signal source is in the normal range. Check the signal cable for breaks or shorts. If the issue still not resolve, then it might be that the input port of the device is defective. See if you are able to connect the signal to a different input port and whether or not that will solve the problem.

report overheating prompts normal logic: first check whether the installation environment is well ventilated, whether the surrounding space does not meet the conditions of the heat dissipation. When installing the device, do not put it in a high-temperature and high-humidity place. Next, look to see if the load that all the device can bear is excessive. If the device is under heavy load for an extended period, try decreasing the load or strengthening the cooling measures.

Application range

Power Generation Sector: It finds application in power generating stations like coal-fired and hydro plants. Under such circumstances, it is used to supervise and manage multiple parameters of power generation machinery, such as the temperature, pressure, and speed of turbines, to ensure the stable operation of the power generation platform and the quality of power provision.

Metallurgical Industry: GE IS200ISBDG1AAA is broadly applied in metallurgical industry for instance steel mills. It used to manage and supervise the temperature, composition and other parameters material in the process of steelmaking, which can improve the quality of steel products and optimize the production process.
