GE IS200JPDEG1AAA

Product Overview

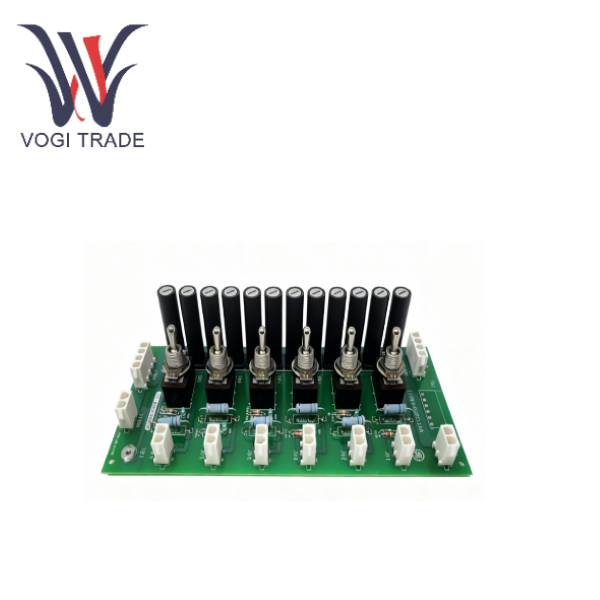

The IS200JPDEG1AAA is a DC battery distribution board designed by General Electric (GE) for its outstanding Mark VIe series control system, belonging to the IS200JPDEG1AAA model. This product plays a key role in GE's Speedtronic turbine control system, mainly responsible for managing and distributing the DC power supply from the battery pack, ensuring that heavy power generation equipment such as gas turbines and steam turbines can obtain stable and uninterrupted power support under various operating conditions, including fluctuations in the main power supply or transient faults. As an industrial-grade component, this module features extremely high reliability and environmental adaptability. It supports dual input power supply of 24V DC or 48V DC, which not only enables redundant configuration but also load sharing. Its core technical architecture adopts a floating DC bus design. The center of the bus is grounded through a resistor, thereby providing effective electrical isolation and protecting the sensitive control modules downstream.

Scope of Application

The application scope of IS200JPDEG1AAA is highly concentrated. The core application scenario is the DC power distribution in the control systems of GE Mark VIe series gas turbines and steam turbines. It is a key power guarantee component of the system, mainly responsible for stably and reliably distributing the battery backup power to each control module and terminal board in the system. In the broader context of industrial automation, due to its high reliability and wide-temperature operating characteristics, this module will also be deployed in the following fields: power system automation control: such as control panel cabinets in power plants and substations, to ensure the continuous operation of key control units in the event of power fluctuations or transient faults. Petrochemical equipment control: Suitable for harsh industrial environments that require high stability and anti-corrosion protection. Other high-demand industrial automation: covering scenarios such as factory automation and process control that require uninterrupted DC power supply guarantee. The technical features determine the usage conditions: IS200JPDEG1AAA is optimized for extreme environments and supports a wide operating temperature range from -40°C to +70° C. The input voltage typically supports dual power supply of 24V DC or 48V DC. Its compact DIN rail mounting design and conformal coating protection enable it to be directly installed in space-constrained and complex environments such as industrial control cabinets.

Comparison of IS200JPDEG1AAA/JPDDG1AAA/JPDHG1AAA

1. Model positioning

IS200JPDEG1AAA Standard power distribution board, universal version, standard for regular units.

IS200JPDDG1AAA High-load enhanced version, expanded output current.

IS200JPDHG1AAA High-temperature/Redundant dedicated version, wide temperature + redundant power supply design.

2. Core differences

Output current

JPDE Standard single-channel rated.

JPDD Larger current, stronger load-carrying capacity, suitable for multiple I/O loads.

JPDH Standard current, focusing on stability rather than large loads.

Operating temperature

JPDE Conventional industrial temperature range

JPDD Conventional temperature range, focusing on load-carrying JPDH Wide temperature and high temperature resistance, suitable for scenarios with poor heat dissipation in computer rooms and outdoor cabinets.

Redundancy and protection

JPDE Basic overcurrent and short-circuit protection

JPDD Enhanced surge and high current protection

JPDH Dual-redundant power supply compatibility, more reliable fault switching.

Applicable scenarios

JPDE ordinary gas turbine/steam turbine; Mark VIe: Conventional point

JPDD Cabinet with many I/O modules and high power consumption

JPDH High-temperature environments, scenarios where key units require redundant power supply

The common points are that they all belong to the GE Mark VIe power distribution PDM board. The shape, interface and installation size are compatible. They can be directly replaced with the same chassis. The protocol and configuration are common
