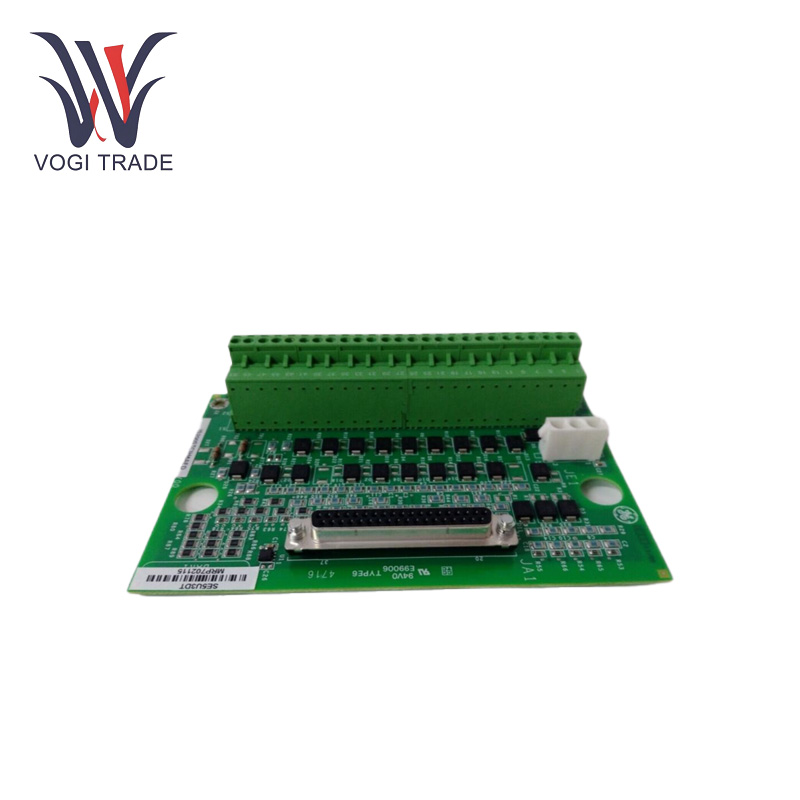

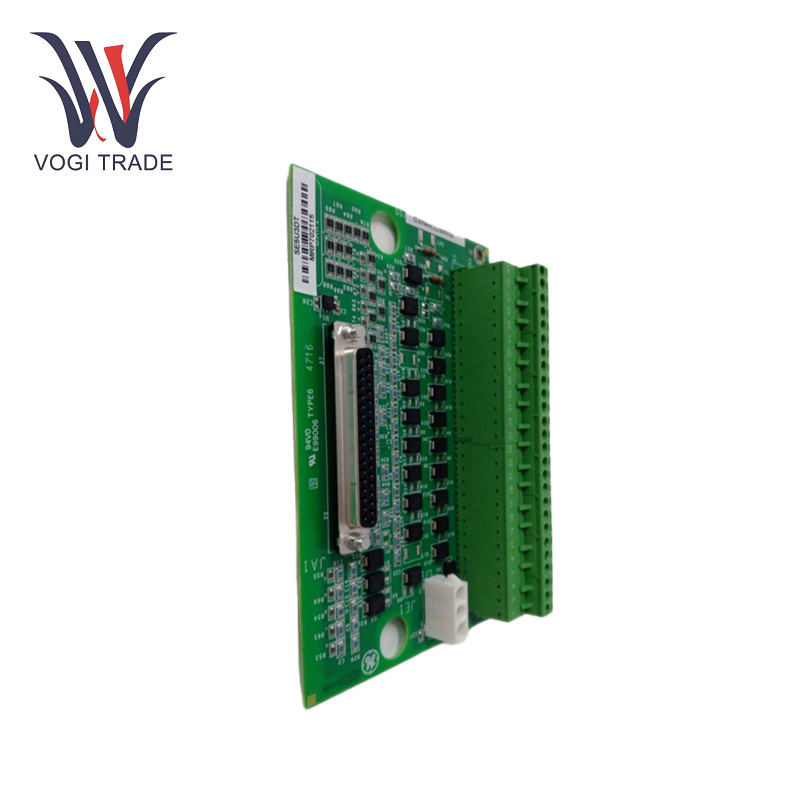

GE IS200SSCAH2AGD

Technical Parameters

Operating Voltage: 5V DC.

Temperature Range: - 30°C to 65°C.

Interface Type: Supports different communication protocols such as Modbus TCP/IP, Ethernet/IP, Profibus, etc.

Programming Language: Supports programming languages ladder logic, structured text, function block diagram, etc.

Backplane Current Consumption: When the input is ON, the backplane 5v bus power consumption is about 40mA.

Installation Method: The corresponding slot of GE Fanuc's PAC Systems RX3i series PLC can be installed.

Functional Features

Select Signal Transmission: Use multiple groups of RS-232C / RS-485 / RS-422 signals from GE IS200SSCAH2AGD to transmit using different channels to meet the needs of serial ports.

Optional terminal resistors: Both signal lines of this board can be equipped with optional terminal resistors. Jumpers Jp1a-Jp6a and Jp1b-Jp6b enable users to place or remove terminal resistors between signal lines a-b and c-d.

User-friendly configuration: Its circuit board adopts jumper configuration. The position and function of the jumpers are clearly marked on the circuit board, which is convenient for users to configure or modify according to specific requirements.

Wide compatibility: The GE IS200SSCAH2AGD is compatible with the I/O package, can be connected to the controller via Ethernet, and plugged into the DC-37 pin connector, which is convenient for system integration and expansion.

Application Areas

Wind power generation: GE IS200SSCAH2AGD used as the communication interface between the wind turbine control system and the variable pitch system, inverter and other equipment to achieve the control of the blade pitch angle and the conversion and transmission of electrical energy, which helps to improve the efficiency and reliability of wind power generation.

Petroleum field: in the atmospheric and vacuum, catalytic cracking, hydrotreating and other devices of the refinery, GE IS200SSCAH2AGD is used for the communication between the control system and various sensors, actuators, analyzers and other equipment to achieve the control and monitoring of parameters such as temperature, pressure, flow, liquid level and so on in the production process, and ensure the safe and efficient operation of the refining process.

Chemical manufacturing: in the production process of chemical products such as fertilizers, plastics, rubber, chemical fibers, etc., the communication between reactors, heat exchangers, pumps, valves and automatic control systems can accurately control the chemical reaction process, the transportation and distribution of materials, and improve the quality and output of chemical production.

Steel smelting: GE IS200SSCAH2AGD in the production process of iron making, steel making, steel rolling, etc., the communication between the control system and blast furnaces, converters, electric furnaces, rolling mills and other equipment can achieve the precise control and monitoring of parameters such as temperature, pressure, flow, speed and so on in the production process, so as to improve the quality and efficiency of steel production.

Paper making industry: In the paper making production line, GE IS200SSCAH2AGD is used to control the communication between the control system and the paper machine, pulping machine, dryer, coating machine and other equipment to achieve precise control and monitoring of process parameters such as vehicle speed, tension, humidity, temperature, etc., so as to improve paper quality and production efficiency.

Marine electrical industry: Interface boards in ship power systems, navigation systems, and automatic control systems realize information exchange and collaborative work between systems, and improve the safe operation and automation level of ships.
