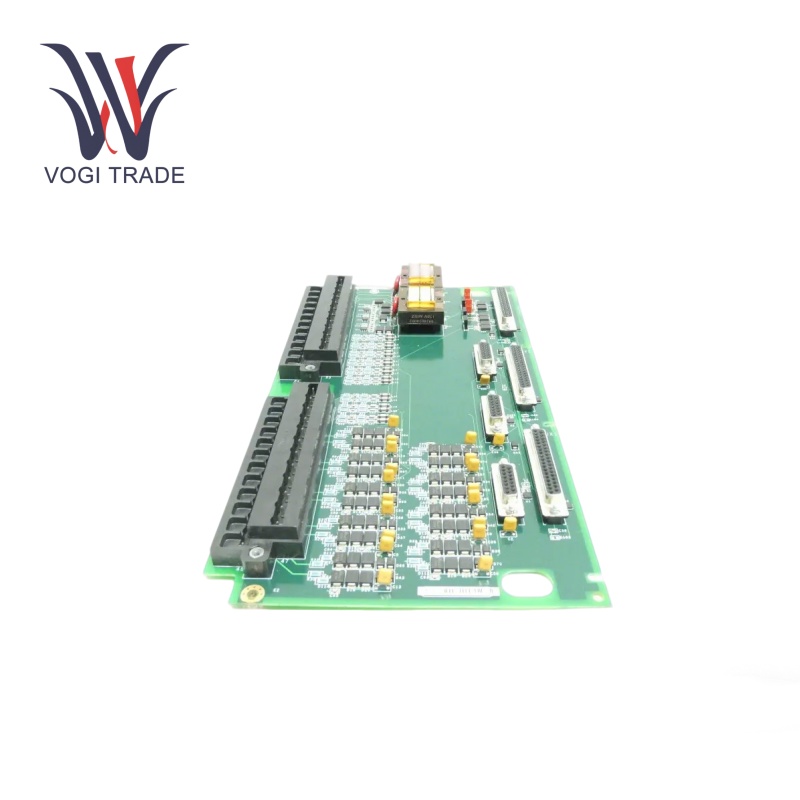

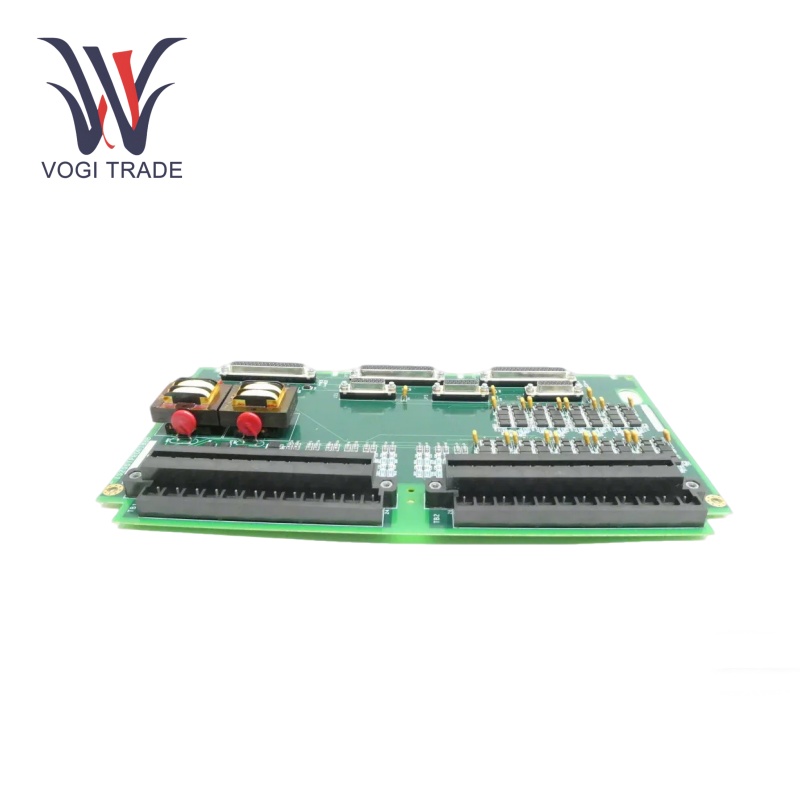

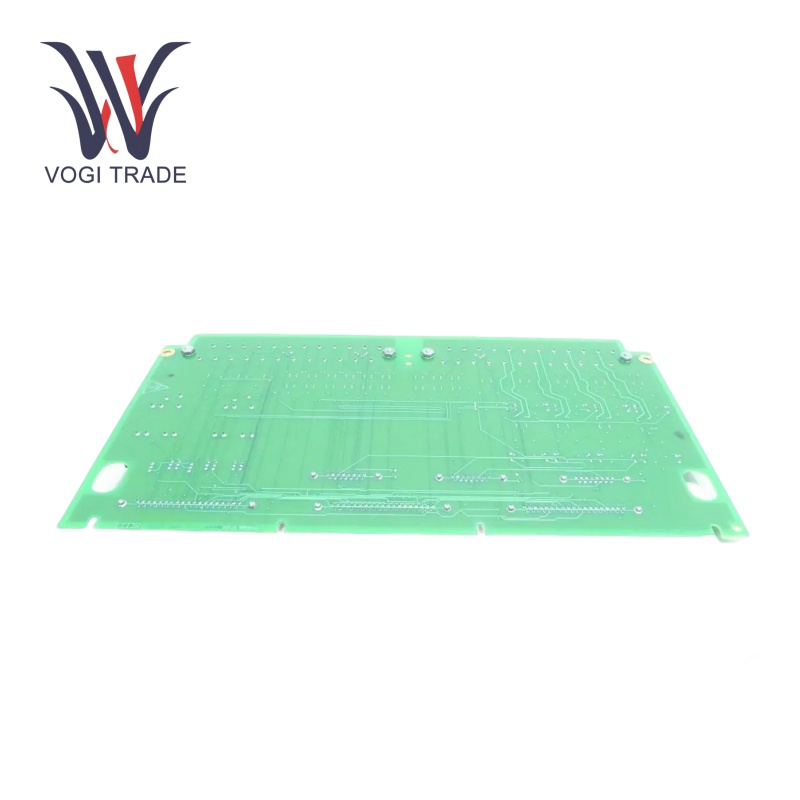

GE IS200TPROH1BBB

Operating Parameters

Digital Inputs: Supports discrete signals, accommodating standard industrial voltage levels.

Analog Inputs: Capable of processing 4-20 mA analog signals, commonly used for various sensor inputs.

Analog Outputs: Provides 0-10 V outputs with a precision of ±0.2%, suitable for controlling actuators and other field devices.

Operating Temperature Range:  -20°C and +70°C.

Protection Level: Rated at IP65, offering substantial protection against dust ingress and water jets, making it suitable for harsh industrial environments.

Product Features

Signal Protection: GE IS200TPROH1BBB Safeguards sensitive electronic components from electromagnetic interference and transient voltage spikes, thereby enhancing system reliability.

Analyze signals: Processes incoming analog and digital signals accurately and converts them into actionable data for the control system.

Communication Interface: Ensures smooth communication between the host system controlling the turbine and any peripheral devices using standard industrial communication protocols.

Emergency Overspeed Protection: GE IS200TPROH1BBB Supplies essential speed signals to the VPRO module, playing a pivotal role in emergency overspeed protection mechanisms.

Advanced Control Algorithms: Enables precise control of turbine operations such as speed, temperature, and pressure.

Redundancy: GE IS200TPROH1BBB have built-in redundancy features GE IS200TPROH1BBB allow them to keep operating, even if one or more components fail.

Diagnostics: Full diagnostics capabilities allow for rapid identification of problems and their solutions.

Scalability: Conformance of supportive modules in a single system gives Scalability according to the Application.

Rugged Design: Built for tough industrial conditions such as extreme temperatures, severe vibrations and electromagnetic interference

Installation

Mounting: The board must be enclosed in a standalone box that is at least IP65 rated to protect it from environmental factors.

Wiring: Use correct gauge wiring for all connections. terminals are typically specified by the manufacturer for torque values to ensure tight and reliable connections.

Grounding: It is crucial to have a robust grounding connection to minimize electrical noise and potential interference with signal integrity.

Verifying: After installing the board, check thoroughly that every input is responding as required and the output is what we are expecting and the board is communicating effectively with the overall control system.

Application range

Gas and Steam Turbine Control Systems: GE IS200TPROH1BBB Provides accurate monitoring and control to maximize performance and safety.

Power Generation Facilities: Vital to the control systems of thermal and wind power plants, enhancing energy generation capabilities.

Industrial Automation: Used in many industrial automation applications that need strong signal termination and protection.

Troubleshooting

Check for physical damage in the regular basis: Inspect the board for burnt components, broken connections or any other type of physical damage.

Signal verification: Use the necessary equipment to check if the input and output signal are within tolerances and what may be out of the norm could help detect an issue.

Connection Checks: Ensure all terminal connections are tight and not corroded enough to prevent signal transmission.

Environmental Assessment: Ensure that the operating environment remains within the specified temperature and humidity ranges to prevent stress on the board's components.
