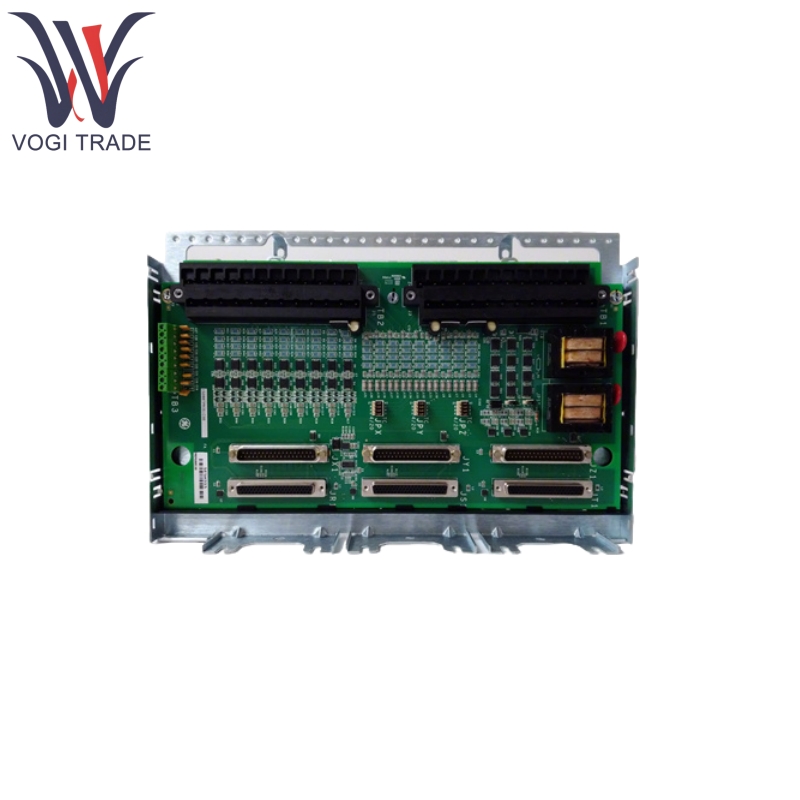

Brand: GE Description: Turbine Protection and Monitoring Terminal Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen GE IS200TPROS1CBB as the core component of the turbine protection system, it undertakes the tasks of signal acquisition, logic judgment and protection triggering, and supports simplex or triple-mode redundancy (TMR) configuration, which is suitable for scenarios with extremely high reliability requirements. Its design goal is to realize real-time monitoring of key parameters and rapid response to faults of the turbine in complex industrial environments to ensure the safe operation of the equipment.
|
Manufacture |
GE |
|
Model Number |
IS200TPROS1CBB |
|
Ordering Number |
IS200TPROS1CBB |
|
Catalog |
Mark VI |
|
Country Of Origin |
United States (US) |
|
HS CODE |
8537101990 |
|
Dimension |
34*18*6cm |
|
Weight |
0.2kg |
Product Features
GE IS200TPROS1CBB has 8 analog inputs, which can support vibration sensor, temperature sensor and pressure transmitter signal access, and can handle standard signals such as ±10V, 4-20mA, etc. It has 4 digital outputs: controlled by the EMIO board, it can drive relays to perform emergency stop or alarm actions.
GE IS200TPROS1CBB has 4 digital outputs, driven by the relay through the EMIO board, can perform the emergency stop or alarm action.
GE IS200TPROS1CBB has 2 trip contact outputs with hardware-level fast response to trigger user-locked emergency protection signal.
GE IS200TPROS1CBB is designed TMR redundancy system which provides a redundant signal transmission through dual terminal boards and D-shell connectors to ensure normal operation of the system in the event of a single point of failure.
GE IS200TPROS1CBB has a built-in self-diagnostic function that monitors the signal validity in real time and displays the channel status through LED indicators.
GE IS200TPROS1CBB supports preset threshold comparisons and triggers protective action when parameters exceed the safe range.
Product Using Principle
GE IS200TPROS1CBB can collect turbine operation data from external devices such as vibration sensors, temperature sensors, etc., and transmit them to the Mark VI main controller after filtering, amplification, and analog-to-digital conversion through on-board circuits.
GE IS200TPROS1CBB the main controller analyzes the signals according to a preset algorithm, and when a parameter exceeds a threshold value, it drives an actuator to cut off the fuel supply or triggers a mechanical brake through 4 relay outputs, and achieves a hardware-level quick stop through 2 trip contact outputs.
Product Parameter
The following detail is GE IS200TPROS1CBB Turbine Protection and Monitoring Terminal Board.
Working voltage: 24V DC (Mark VI system standard power supply)
Analog Input: 8 channels, support ±10V, 4-20mA, RTD, thermocouple (such as K, J, T type)
Digital Input: 6 auxiliary contact inputs (dry or wet contact)
Digital Output: 4 C-type relays (normally open/closed selectable) + 2 trip contacts (user configurable)
Communication Interface: Communicate with other Mark VI system modules (e.g. DSPX controller) via backplane bus, support ISBus protocol
Protection: IP54 (dust and splash proof, to be installed in the control cabinet)
