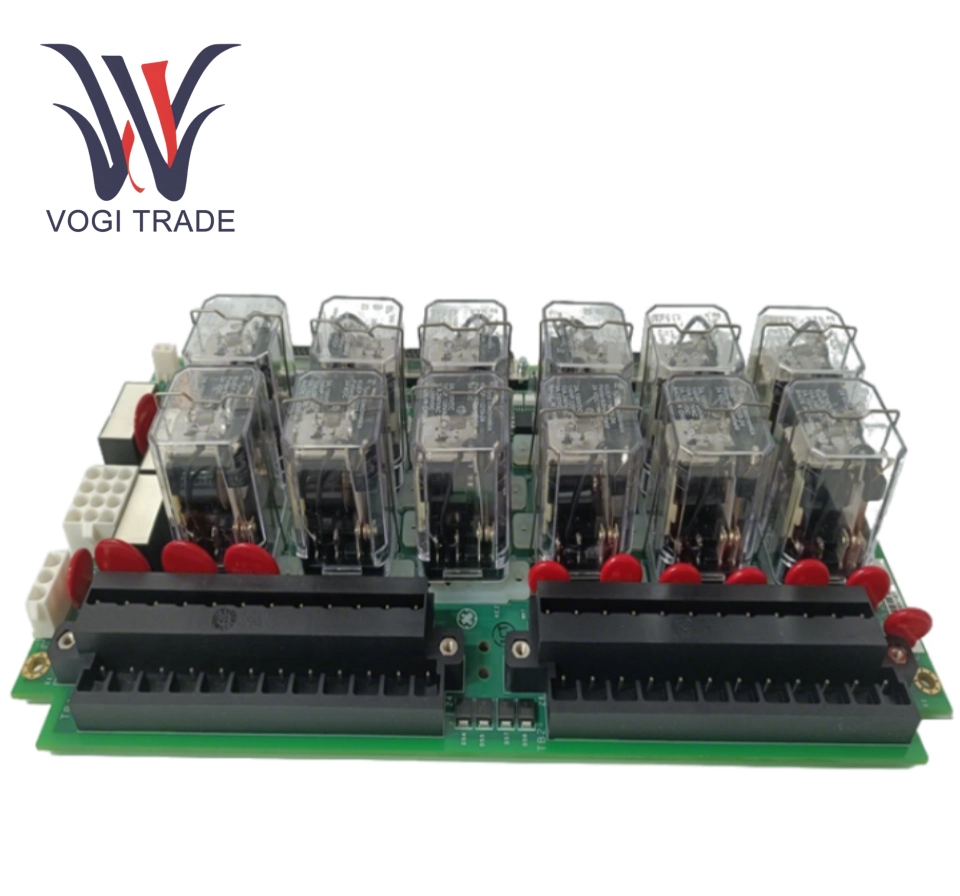

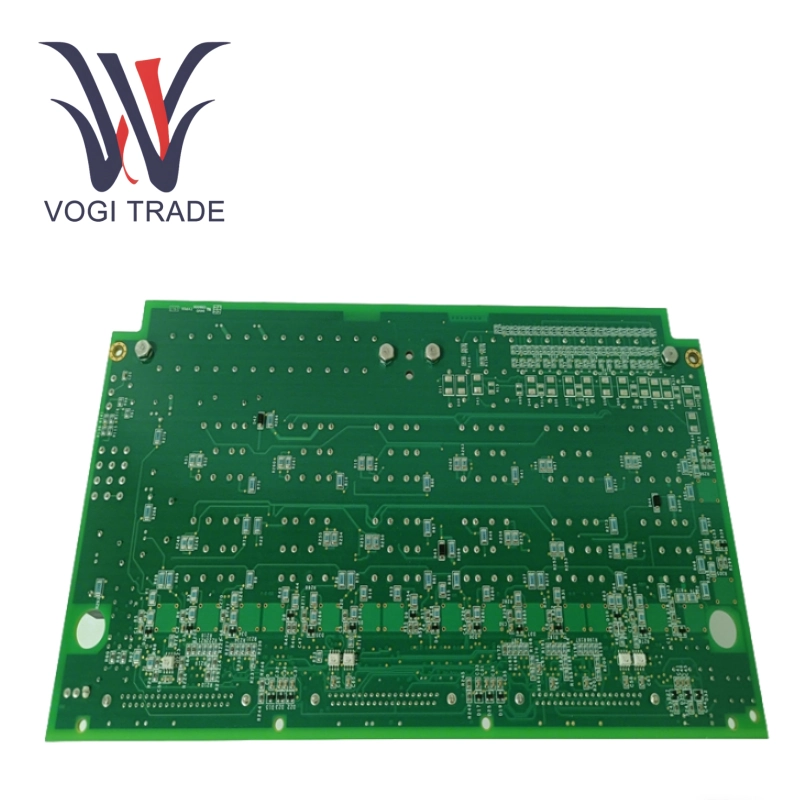

GE IS200TREGH1BDC

Core parameters

Number of channels: 16 digital inputs, compatible with dry contact/wet contact signals

Voltage range: 24V DC, input current ≤7mA

Response time: 1ms

Number of channels: 16 transistor outputs

Output frequency: 10kHz, response time 0.2ms

Protocol support: ProfiBus-DP, DeviceNet, EtherNet/IP

Rate: 12Mbps, compatible with Mark VI series master modules

Operating temperature: -20℃ to 60℃

Protection level: IP20, humidity tolerance 5%-95%

Power supply: 24V DC power supply, power consumption <100mA

Features

1. High anti-interference ability

GE IS200TREGH1BDC adopts photoelectric isolation + metal oxide varistor technology, suppressing electromagnetic interference in industrial sites, with an isolation voltage of 2500V.

2. Redundant protection mechanism

GE IS200TREGH1BDC supports working with VPRO protection board and TRPG terminal board to build triple redundant voting logic, which is suitable for high-risk scenarios such as gas turbine overspeed protection.

3. Real-time control performance

Input response 1ms, output response 0.2ms, meeting the millisecond response requirements of Mark VI system for turbine emergency tripping

4. Expansion and compatibility

GE IS200TREGH1BDC can expand analog modules and high-speed counting modules, and realize multi-rack synchronous control through I/O NET network

Application scenarios

1. Overspeed emergency trip protection in power plants (such as millisecond-level cut-off system in case of mechanical failure or overload);

2. In the field of petrochemicals, real-time monitoring of valve status and pump start-stop logic can be used to trigger emergency shutdown to avoid production accidents;

3. Applied to rail transit signal systems to ensure the safety interlocking control of train door control and traction systems.
