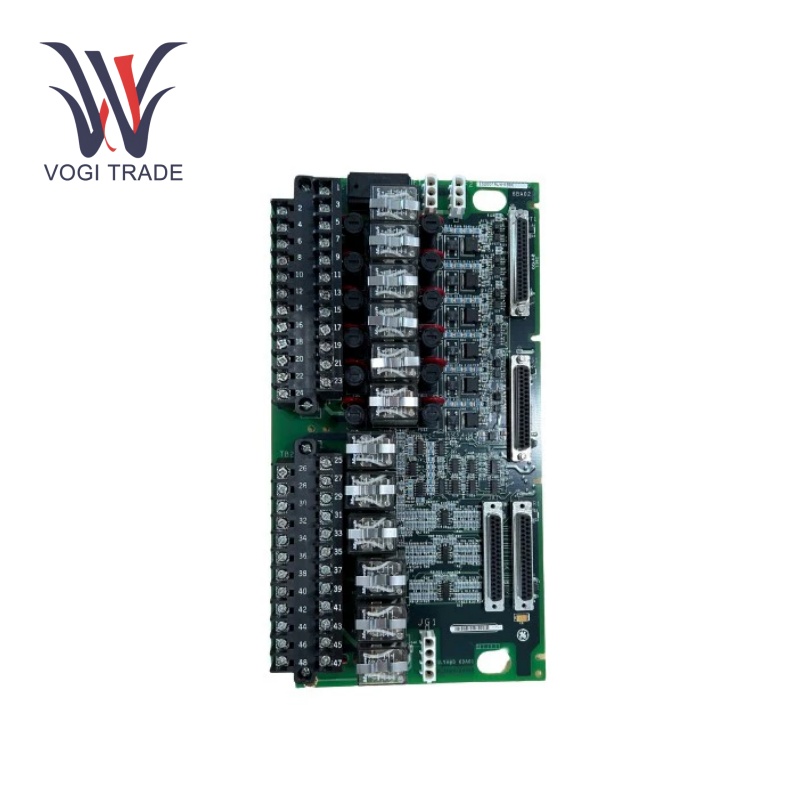

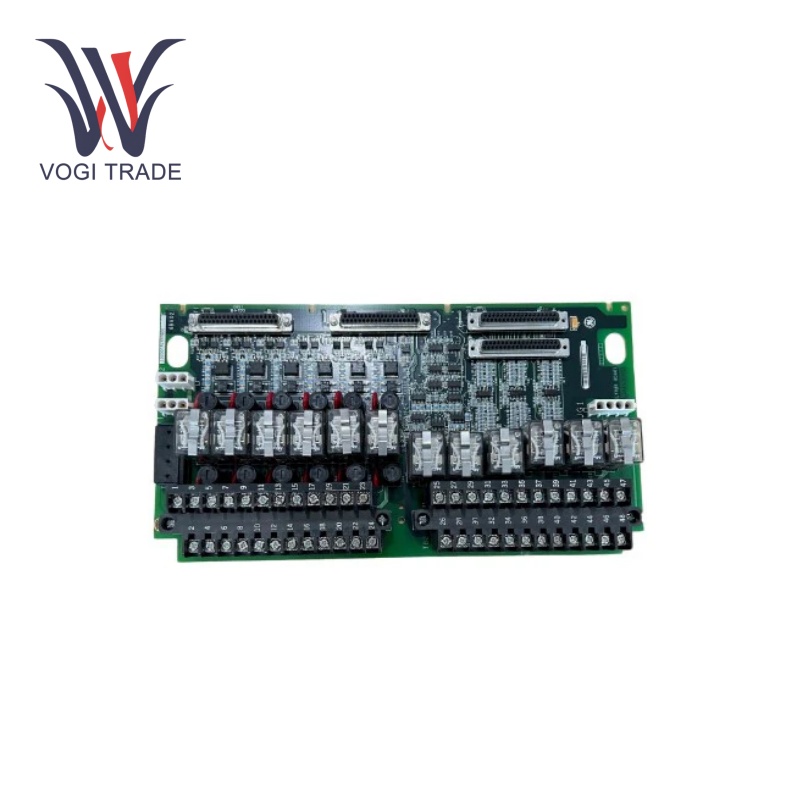

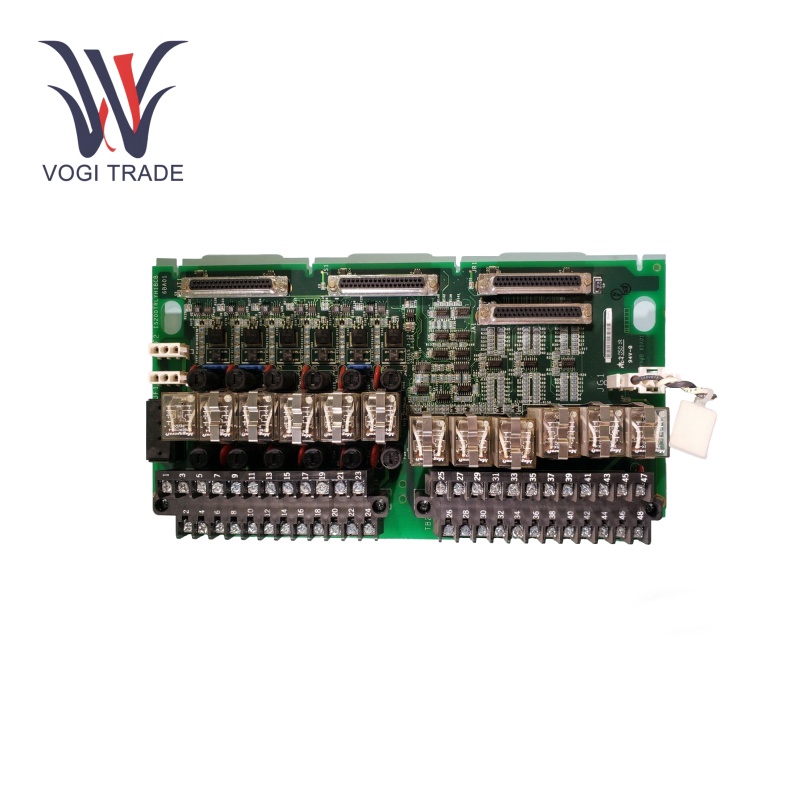

GE IS200TRLYH1BGF

Power Supply: Requires a 24 V DC.

Relay Capacity: Accommodates up to 16 electromechanical relays, each capable of handling a maximum current of 10 A at 250 VAC.

Operating Temperature: -40°C to 70°C.

Humidity Tolerance: 5% to 95% non-condensing humidity.

Switching Capacity: High switching capacity ensures reliable operation under heavy loads.

Product Features

Relay based switching: GE IS200TRLYH1BGF is designed for relay based switching. It gets control signals from the programmable logics controller and switches electrical circuits on or off using its relays. This is useful to control a great variety of equipment.

Signal Isolation: The GE IS200TRLYH1BGF electrically isolates control signals and switched circuits. The separation helps to prevent electrical noise created by the high - power circuits from affecting the low power control signals. It protects control devices from the harmful voltage levels that occur in the switched circuits due to voltage spikes and surges.

Fault Detection: GE IS200TRLYH1BGF incorporates built in fault - detection capabilities. Each relay's status is monitored by the module itself as well as failures like welding of relay contacts or the coil. Such a fault detects can give a signal to control system for troubleshooting and maintenance promptly. GE IS200TRLYH1BGF helps to reduce downtime in industrial processes.

Perfect and reliable operations: Offers accurate and dependable switching actions, guaranteeing consistent functioning in vital applications.

Redundancy: Built-in redundancy features ensure continuous operation even in the event of a component failure.

Diagnostics: Provides all diagnostic capabilities for rapidly diagnosing issues.

Installation

Fixing: Enclose the board in a protective case with the necessary environmental ratings, ensuring that it is adequately ventilated and shielding the internal components from contaminants.

Wiring: Connect all external devices to the screw-type terminals, ensuring tight connections and correctness per the wiring diagrams.

Relay Installation: Insert as many as 16 electromechanical relays into corresponding sockets, ensuring proper relay configuration concerning system specifications.

Test: Once installed, ensure all relays and connections are working properly with the control system with thorough tests.

Application range

Gas Steam Turbines Control: GE IS200TRLYH1BGF can monitoring gas and steam turbines at power generation plants respectively.

Oil and Gas: Primarily interacting with turbines and compressors in upstream, midstream and downstream

Manufacturing: Used for process control and monitoring in automated production lines.

The Renewable Sector: Management and control of wind power plants and solar power plant.

Water Treatment: Signals for pumps, valves, and filtration systems.

Troubleshooting

No Signal Output/Input: Verify wiring connections for damaged and loosened cables. Check the settings on the control software. Monitor power supply within the mentioned limits.

Inaccurate Readings:Calibrate the module using the appropriate calibration tools.Check for electrical noise or interference and ensure proper grounding.Verify the signal type and range settings.

Module Is Not Communicating:Check the communication cable and connectors. Reconnect the module and the control system. If applicable, update the firmware.

Overheating: Make sure the module is properly installed in an area with plenty of ventilation. Measure ambient temperature and make sure it is within specification.

Diagnostic Warnings:Utilize the diagnostic facilities within the control software to diagnose problems and fix issues.
