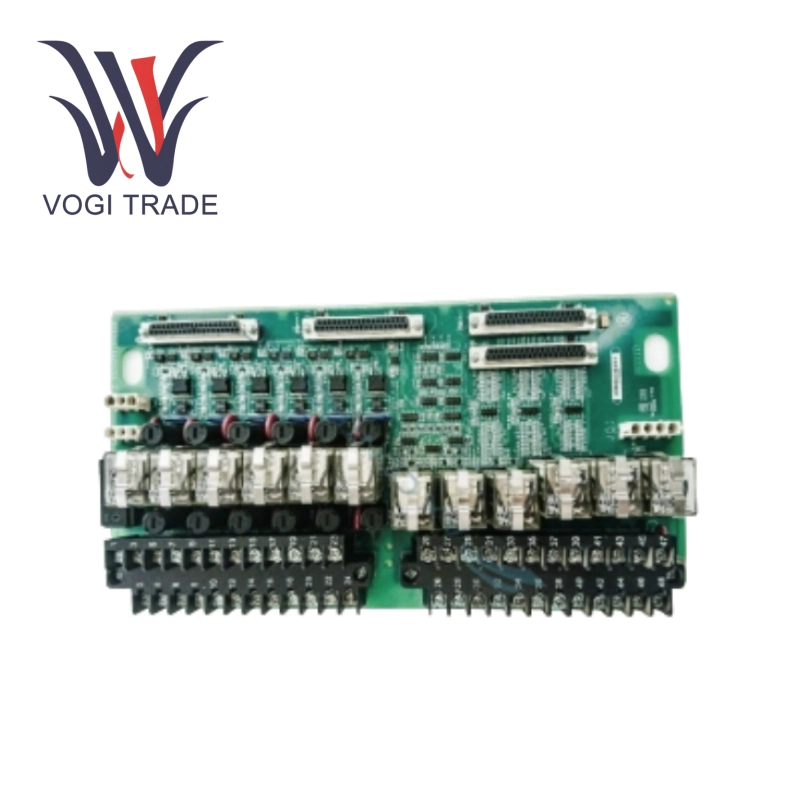

Brand: GE Description:Relay Output DINrail Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty：5 Payment Term: T/T Shipping Port: Shenzhen GE IS200TRLYH1BHH is a Relay Output DINrail Module. Its core function is to provide high-reliability digital signal conversion and execution control for turbine cont
|
Manufacture |
GE |
|
Model Number |
IS200TRLYH1BHH |
|
Series |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8504902000 |
|
Dimension |
33*14*5cm |
|
Packing Dimension |
35*16*7cm |
|
Weight |
1.5kg |
Technical parameters
Input voltage: 24 VDC
8 or more relay output channels
Output voltage range: AC 250V / DC 30V
Load capacity: 5A for resistive load, 2A for inductive load
Isolation performance: Current isolation between input/output (photoelectric isolation), enhanced anti-interference ability
Response time: ≤10ms
Operating temperature: -20℃ to 70℃ (storage temperature -40℃ to 85℃)
Protection level: IP20, vibration and high temperature resistance
Installation method: Support DIN rail or panel installation

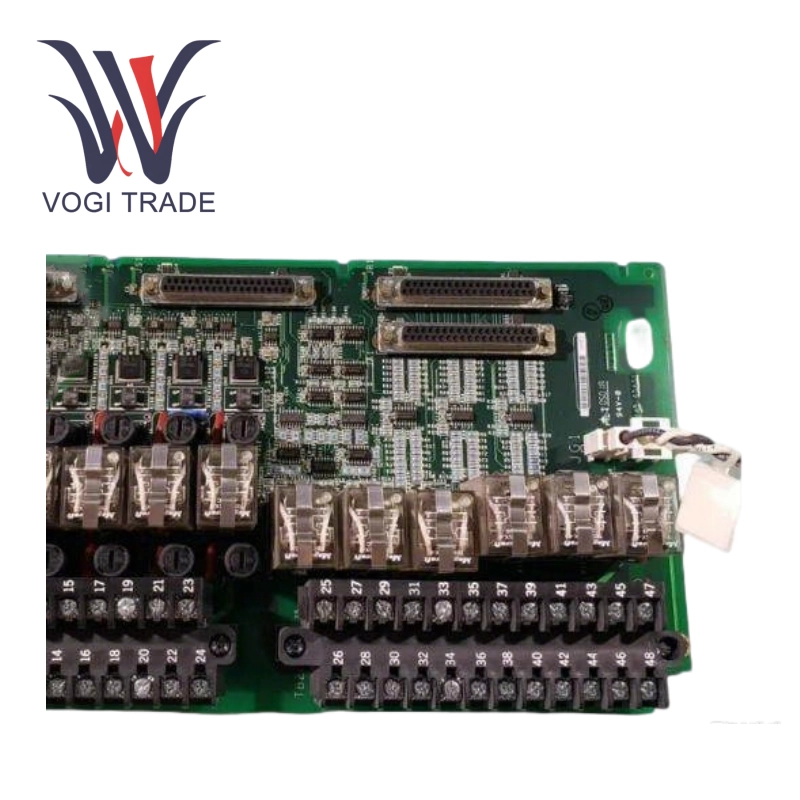

Contains 48 terminals (divided into two groups of 24 terminal blocks) and 4 connector ports
Functional features
1. High reliability and industrial-grade protection
GE IS200TRLYH1BHH adopts sealed mechanical relays and MOV (metal oxide varistor) surge suppression technology to ensure long-term stable operation in harsh environments such as high temperature and vibration
2. Multi-function output and fast response
The module supports normally open/normally closed contact configuration, with a response time of ≤10ms. It can drive high-power devices such as motors and valves at the same time to meet the needs of fast logic control.
The flexible output capacity of GE IS200TRLYH1BHH is one of its core advantages.
3. Modular design and convenient maintenance
The compact structure is compatible with DIN rail installation and supports hot plugging; the terminal block and LED status indicator simplify wiring and troubleshooting.
4. Intelligent diagnosis and status monitoring
With built-in real-time diagnostic functions (such as contact status feedback, open circuit/short circuit detection), GE IS200TRLYH1BHH can report abnormalities through LED or system protocol to improve operation and maintenance efficiency.
Application scenarios
Power generation facility turbine control: used for emergency shutdown, speed regulation and safety interlocking.
Industrial process automation: control actuators such as pumps, valves, conveyors, etc.
Safety system: drive alarms or emergency shut-off devices (such as petrochemical production lines).
Equipment status monitoring: Provide system operation indicator light and fault output signal
