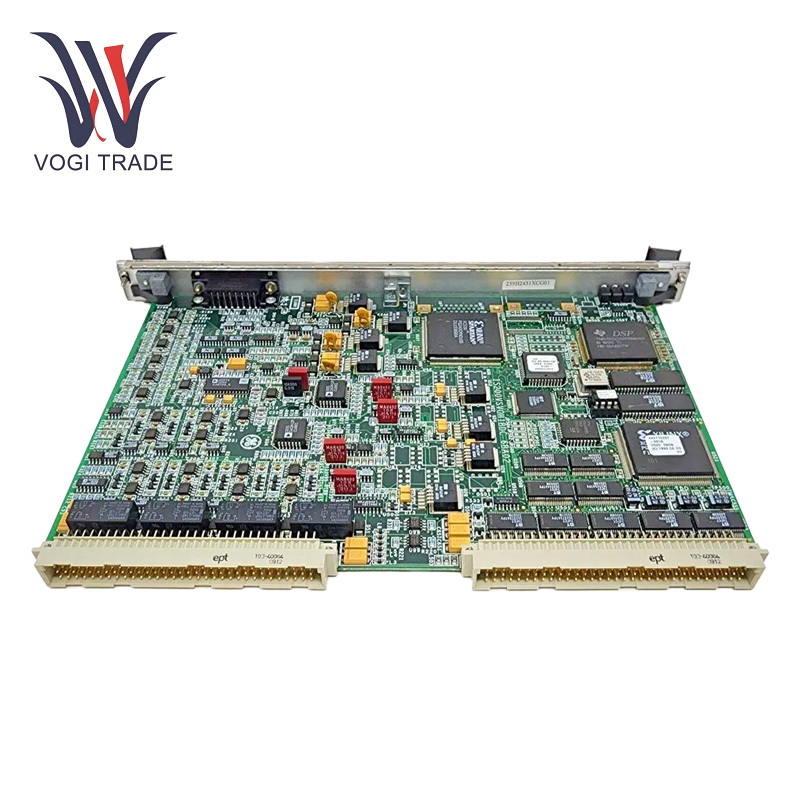

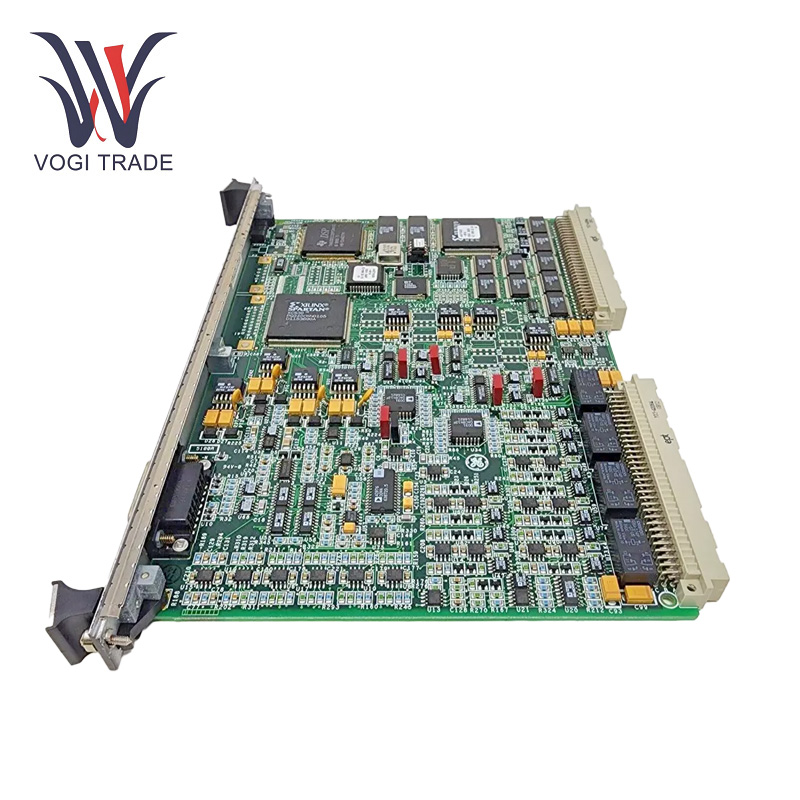

GE IS200VSVOH1B

Operation Parameters

Servo Control Channels: Manages four electro-hydraulic servo valves, each providing bidirectional current outputs to control steam and fuel valves.

Position Feedback: Utilizes Linear Variable Differential Transformers (LVDTs) for accurate valve position feedback, supporting up to six LVDT inputs.

LVDT Excitation: Generates a 3.2 kHz sine wave excitation voltage for LVDTs, ensuring precise position sensing.

Pulse Rate Inputs: Includes three pulse rate flow inputs for applications measuring fuel flow rates.

Temperature Range: -40°C to +85°C.

Product Features

Power Supply and Distribution: The GE IS200VSVOH1B is essentially a power hub. Analyzes the incoming power and then distributes it in a regulated manner to the different subsystems.

Signal Conditioning and Conversion: GE IS200VSVOH1B features sophisticated signal conditioning capabilities. It is capable of digitizing analog signals from sensors so that they can be processed by digital controllers. Another function is to shape signals from outside sources to meet internal circuitry impedance needs, aiding in signal integrity while reducing noise ingress.

Communication Interface Support: Well as basic Embedded controller this is an SCU,it shares a communication interface supports multiple communication ports. GE IS200VSVOH1B probably also has an Ethernet port for high speed communication with the other control systems and remote monitoring stations. It also has serial interfaces like RS 232 and RS 485, which allows for compatibility with older devices and performance in noisy industrial locations. Using communication protocols, these interfaces help adapt to more than one type of industrial automation setups.

Installation

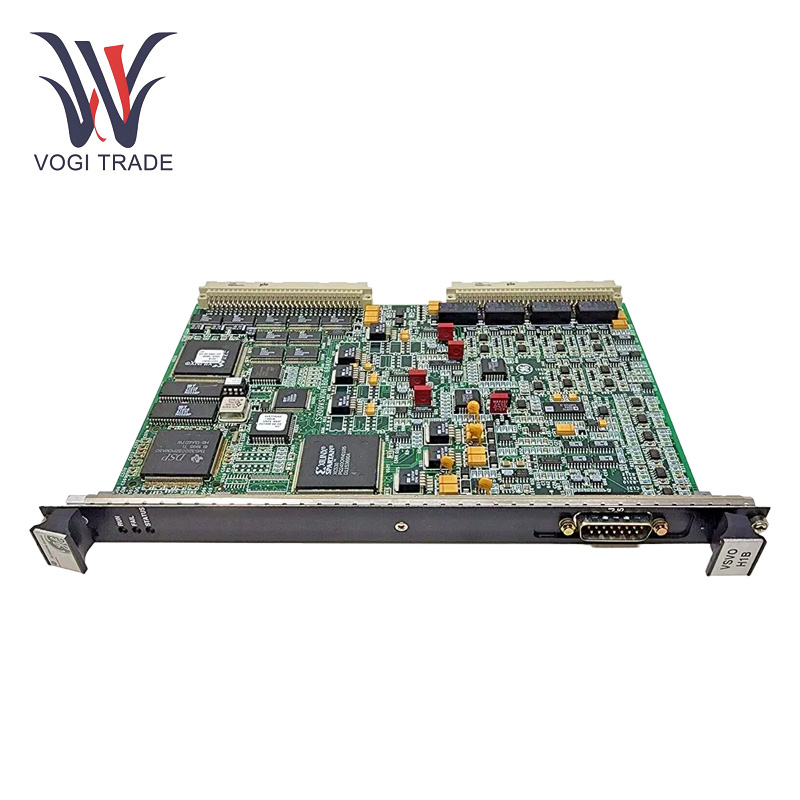

Mount: The GE IS200VSVOH1B goes into any one slot of the VME rack and the top and bottom levers engage tension on the edge connectors.

Securing: Tighten captive screws at the top and bottom of the front panel to secure the board.

Connectivity: Signal interfacing should make use of cables connected to the J5 connector in the front panel and to J3/J4 connectors in the VME backplane.

Power Up: Power up the VME rack after installation, monitor the front panel LEDs, and check for diagnostic indications.

Application range

Gas and Steam Turbines: Controls fuel and steam valves to maintain turbine efficiency.

Power Gen Plants: Optimizes Turbine settings for allowed energy production.

Industrial Process Control: This GE IS200VSVOH1B machinery control demands precise regulation of fluid flow and valve positioning in critical industrial processes.

Troubleshooting

Visual Inspection: Inspect the board for physical damage, loose connections, or signs of overheating.

LED Indicators: Check the front panel LEDs RUN green blink means normal operation, FAIL solid red indicates a fault, and STATUS orange blink indicates an alarm condition.

Signal Verification: Use diagnostic tools to verify the integrity of LVDT feedback signals, servo current outputs, and pulse rate inputs.

Checking Configuration: Check that jumper settings and jumper configurations correspond to the requirements of the system and the application

Environmental Conditions: The operating environment should comply with the specified temperature and humidity ranges to avoid affecting performance.
