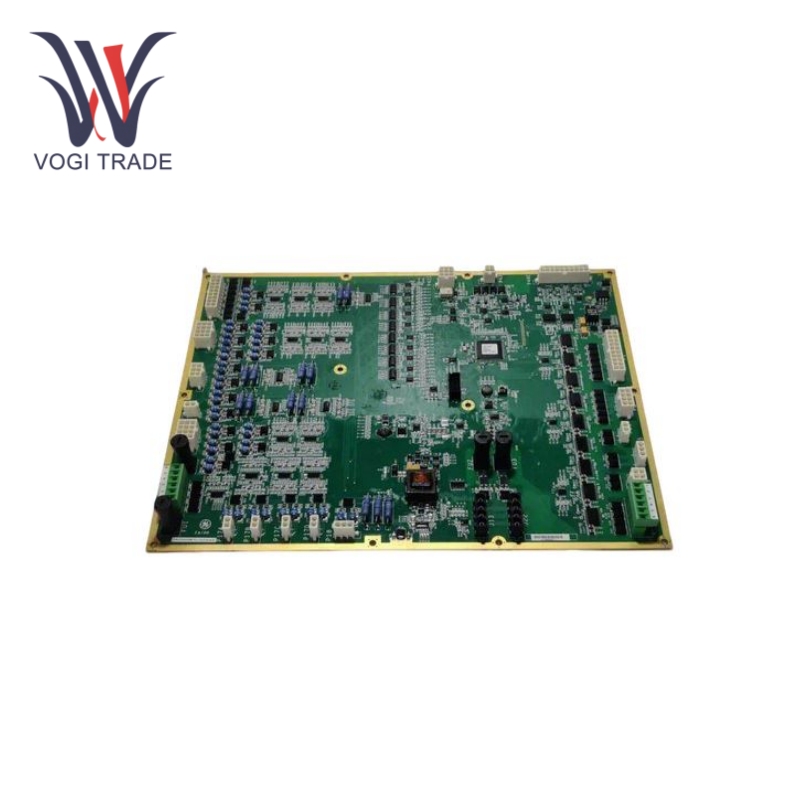

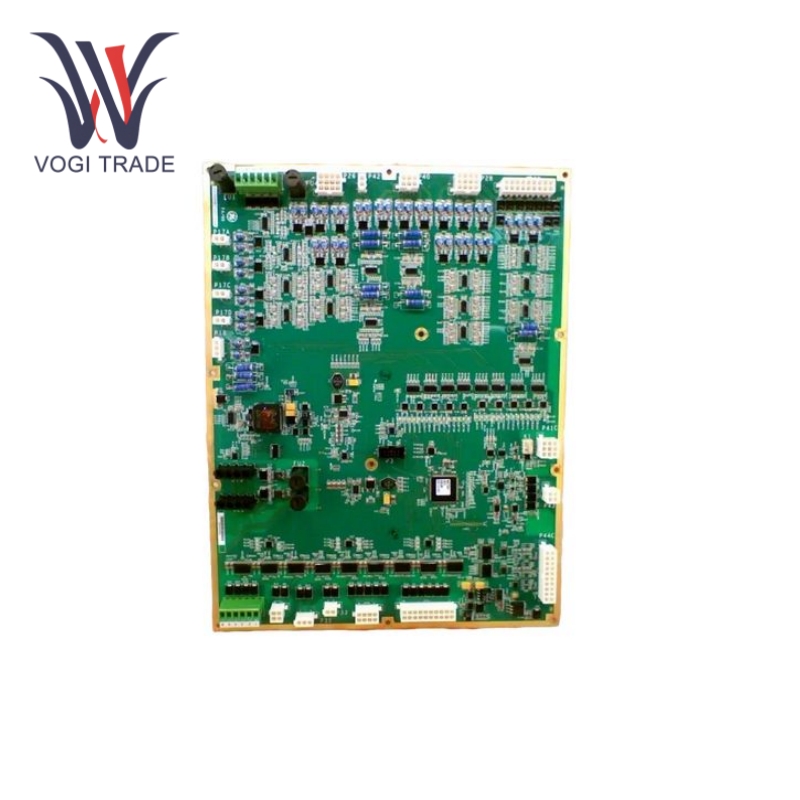

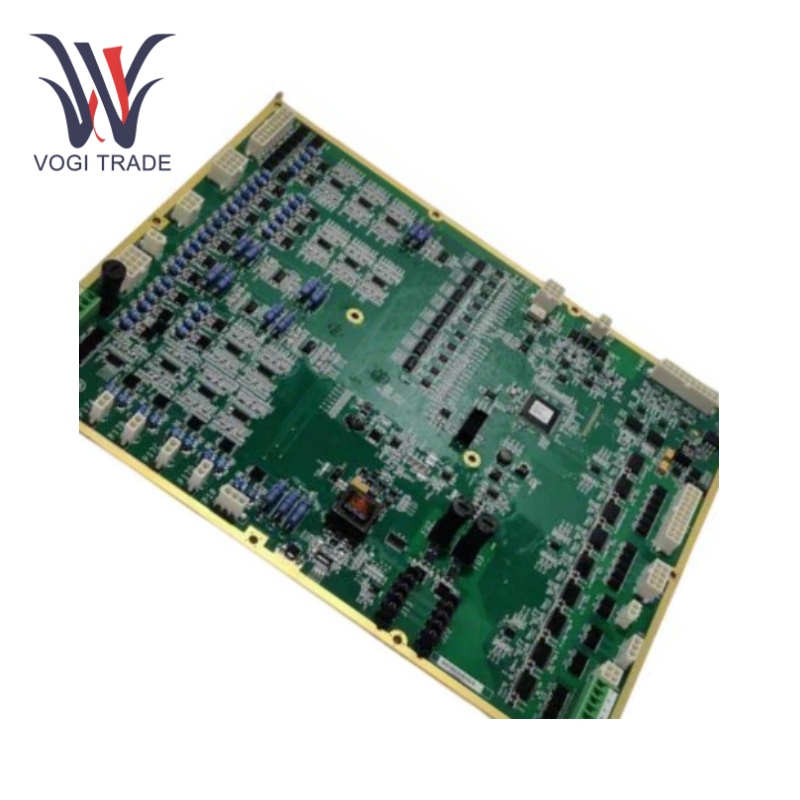

GE IS200WETCH1AAA

Operating Parameters

Memory Capacity: 128 MB.

Communication Interface: High-speed 2.12 Gbaud.

Connector Type: LC-type fiber-optic connectors conforming to IEC 61754-20 standards.

Insertion Loss: Maximum of 0.35 dB.

Return Loss: Minimum of -30 dB .

Operating Temperature Range: -40°C to +70°C.

Power Consumption: 580 mA at +3.3 VDC.

Product Features

Fast and Efficient Signal Processing: GE IS200WETCH1AAA can process analog signals and digital signals accurately, which makes it faster as well. For analog signals, it performs functions such as amplification, filtering, and analog to digital conversion to ensure that the signal is accurate and stable. It can also operate digitally to buffer, decode and make logic judgment, and cooperate with other digital signals to meet specific control logic requirements.

Strong communication ability: GE IS200WETCH1AAA has a variety of communication interfaces, such as Ethernet interface, serial interface, etc. Through these interfaces, it can realize data communication and exchange with other devices. It supports various communication protocols, such as Modbus, Profibus, etc., and can be easily integrated into different industrial control networks to achieve interoperability and data sharing between devices.

Reliably Fault-Tolerant: Owing to a rigorous fault tolerance and redundancy design In case of partial components failure, the module can work continuously through the backup circuit or redundant mechanism, which guarantees that the normal operation of the system. It also has the fault self-diagnosis function, you can timely find and report its own fault status, but also convenient for maintenance and repair.

Installation

DIN Rail Mount DIN Rail Mounting: GE IS200WETCH1AAA module is typically mounted to a standard DIN rail. Push the module on the side into the DIN rail, and make sure it is clamped firmly.

Module Installation: The module must be installed in the correct position, and the connection pins must be aligned with DIN rail slots so that reliable electrical connection is guaranteed.

Power Supply: Connect the input and output wires according to the wiring diagram. Ensure that with the wires together, the ends are firmly crimped and inserted into their respective terminal blocks. Use shielded wires to eliminate interference for analog signals. Straightness; for digital signals, ensure that the length of each wire meets the requirements of the signal transmission speed, so as not to attenuate and distort the signals.

Communication cable connection: If the function module communicates with other devices through the Ethernet interface or serial interface, the communication cable needs to be connected. For the Ethernet interface, a standard Ethernet cable should be used to connect, and the cable should be properly inserted into the RJ45 connector. For the serial interface, connect the serial cable and configure the communication parameters.

Troubleshooting

Abnormal Input Signals: For abnormal input signals, you can first check whether the sensor and input terminal of the module have a reliable connection and whether there is a problem of loose wires or broken wires. Test sensor output signal with multimeter or signal generator to find out if the sensor is defective. If the sensor is tested pg 10 normal then measure the input circuit of the module (amplifier, filter and analog-to-digital conversion circuit). replace any faulty component if necessary.

Communication Failed: If communication failed, in the first place, check the communication cable to ensure it is properly plugged in and that there is no damage. Second, check the communication settings of the module and the connected devices respectively (the IP address, subnet mask, gateway and communication protocol) and ensure consistency. If the communication is still incorrect, you can try using network analyzer serial port analyzer to monitor the communication data find out the reason.

Module Over Temperature: If the module is over temperature first check the installation site ambient temperature, make sure installation temperature is in normal working temperature range. If the ambient temperature is normal then check the heat dissipation conditions of the module, heat sink installed, whether the fan is working properly. If the heat dissipation conditions are normal, it is likely that the internal components of the module are faulty and need to be further inspected and repaired.

Application range

Power Generation Industry: GE IS200WETCH1AAA in the power plant can be used in generator control, boiler control, turbine control and other equipment. It can well acquire the operation status data of equipment, such as temperature, pressure, flow and other parameters, and send the data to the control center for analysis and processing to achieve automatic control and optimal operation of power plants.

Chemical: In the process of chemical production, the precise control of various parameters and the reliable operation of the device are the key. GE IS200WETCH1AAA can be used for the control of chemical reaction kettles, pumps, valves and other equipment, and can realize the control algorithm of the reaction temperature, pressure, material flow and other parameters, ensuring the safety and stability of the chemical production process.
