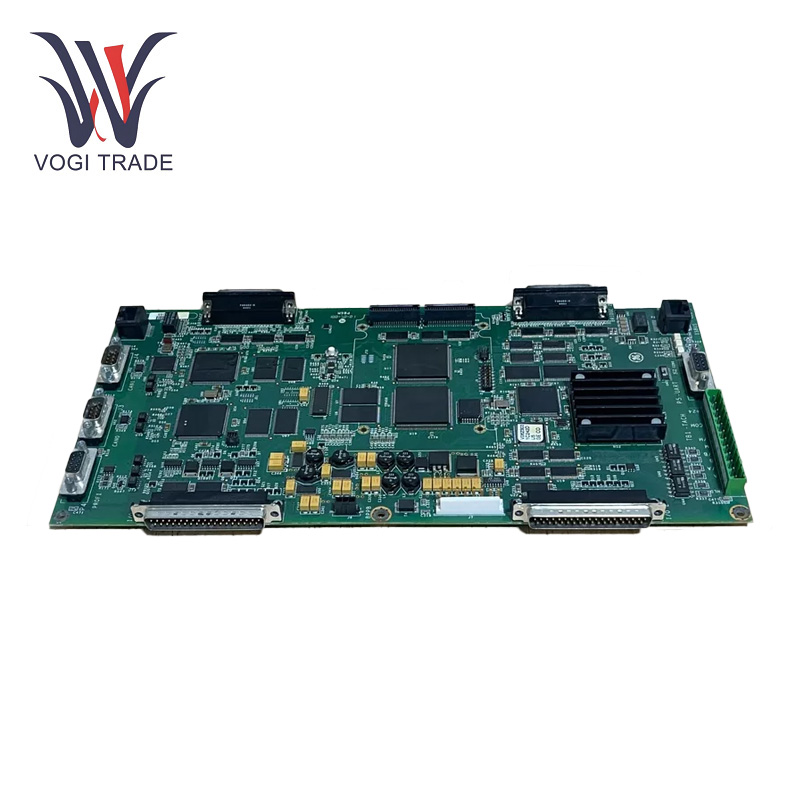

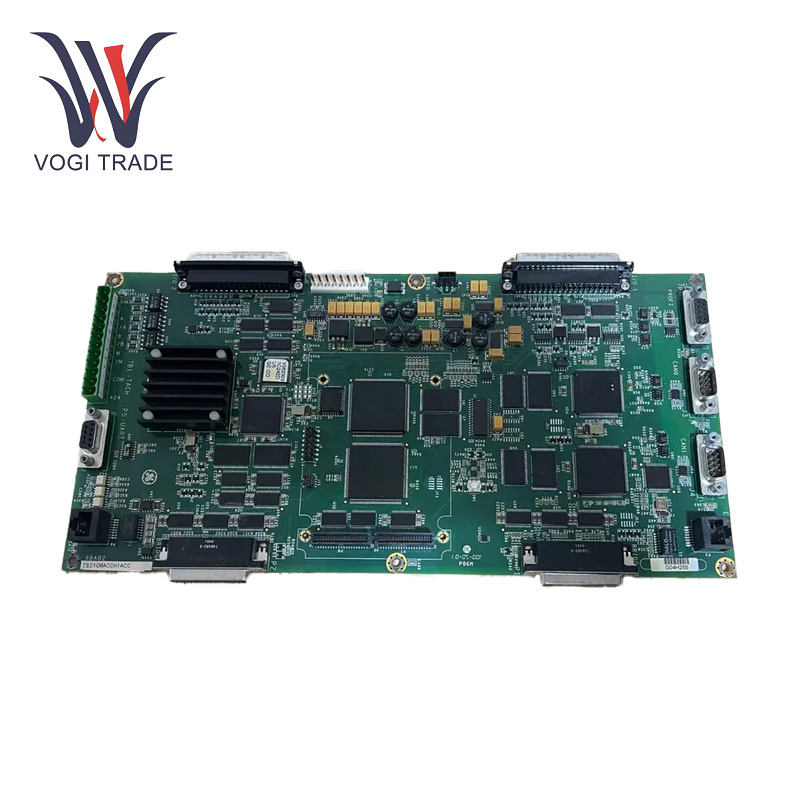

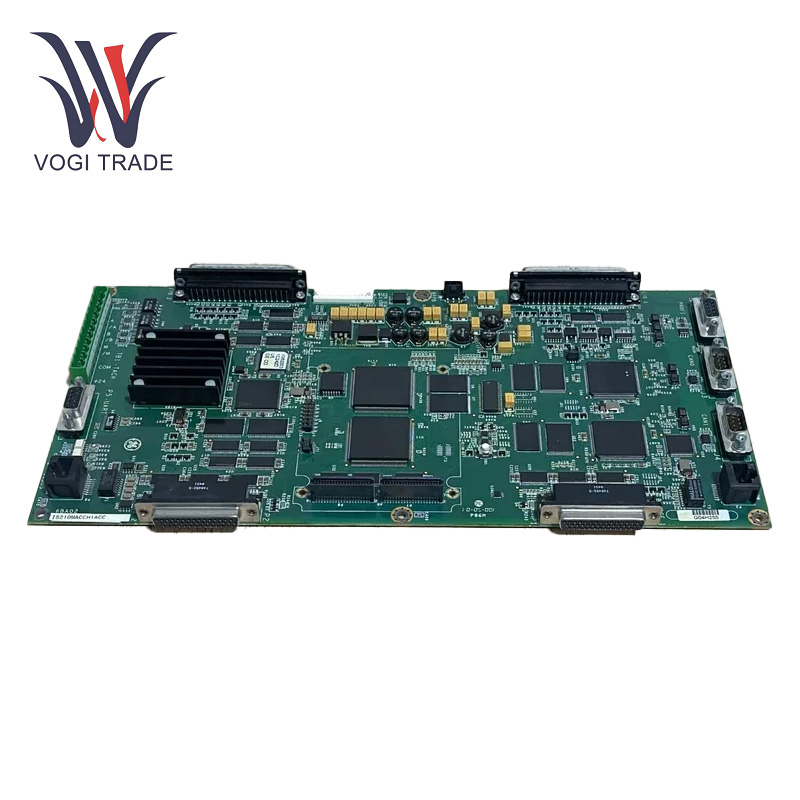

Brand: GE Description: Mark VIe Controller Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen GE IS210MACCH1AFG is a multi-application converter control board for the Mark VI control system for turbine monitoring and control. It processes analog and digital signals for efficient data acquisition, signal conversion, and real-time system control.
Manufacture |
GE |
Model Number |
IS210MACCH1AFG |
Ordering Number |
IS210MACCH1AFG |
Catalog |
Mark VIe |
Country Of Origin |
USA |
HS CODE |
8479909090 |
Dimension |
40cm*25cm*6cm |
Packing Dimension |
42cm*27cm*8cm |
Weight |
1.2kg |
Operating Parameters
Input Voltage: 24V DC
Input Voltage Range: 3.3V – 5.5V
Operating Temperature Range: -40°C to +85°C
Operating Current: Less than 10mA
Storage Temperature Range: -40°C to +85°C
Humidity: 5% to 95%
I/O Channels: Multiple digital and analog input/output channels for versatile connectivity
Product Features
Data Acquisition: Collecting analog and digital signals from various sensors and transducers within the turbine system.
Signal Processing: Data will be taken as input and actionable information will be prepared for real-time monitoring and control.
System Control: Executing control algorithms to manage turbine operations efficiently.
High Reliability: GE IS210MACCH1AFG Made to withstand the rigors of industrial conditions, eg vibration, temperature extremes, and EMI.
Scalability: GE IS210MACCH1AFG Allows for easy replacement and upgrades, minimizing system downtime.
Advanced Diagnostics: Built in diagnostic feature for real time monitoring and fault detection.
Scalability: GE IS210MACCH1AFG Allows for the addition of more I/O modules or communication interfaces.
Installation
Before Installation Checks: Make sure the power supply is OFF. This is general compatibility for the existing control system. Check the physical damage of the module as we.
Mounting: nstall the GE IS210MACCH1AFG on a DIN rail or mounting panel in the control cabinet. Make sure they have good airflow and room to avoid burning out.
Electrical wiring : Make the input/output connections as per the wiring circuit in the manual. Impedance-matched, better-quality shielded cables Check all connections to ensure that wiring is not loose.
Power-Up: Apply power to the module and monitor its initialization process. Crowd Testing services using our platform to verify communication with the control system.
Application range
Power Generation: Turbine control, generator monitoring, and grid synchronization
Oil and gas: Monitoring of pipelines, control of compressors, and safety systems
Manufacturing: Automating processes and controlling machines for quality.
Transport: Rail and marine propulsion systems.
Energy: Wind turbine operating and solar panel management.
Treatment of Water: Control of the pump and process.
Troubleshooting
Check Sensor and Cable Connections: Check the connections from sensors to input terminals of GE IS210MACCH1AFG. This could occur due a loose connection, damaged cables, or incorrect wiring. If you’re using a long cable, it may also be better to tighten any loose connectors and search for any signs of damage on the cable, such as cuts or fraying. If the cables are damaged, replace them.
Sensor Function Test: Test the sensors to ensure that they are working properly. Using a suitable test device measure its output of the sensors. If it is a temperature sensor, for example, verify that it is outputting the correct temperature - relevant electrical magnitude. If the sensor fails, it should be replaced.
Incorrect Output Signals: Inspect the output circuits on the circuit board and look for burned - out transistors, capacitors and other components on the board. A faulty output cause production of wrong or no output signals.
Control logic and Configuration check: Check control logic and configuration in the system. Incorrectly programmed or configured applications lead to incorrect output signals. Review the software or firmware settings and verify that the control algorithms are implemented correctly and the parameters are set correctly.
Communication Issues: If the board communicates with other components in the system, check the communication cables and connectors. Make sure that the cables are securely connected, undamaged, and that the connectors are clean and free from corrosion. Use a different one and see if the problem is solved if you suspect a faulty.
