GE IS215ACLEH1AB

Product Overview

GE IS215ACLEH1AB is a high-performance, microprocessor-driven main controller designed by General Electric for its Innovation Series AC/DC drive units and EX2100 digital excitation control system. The official name of this module is Application Control Layer Module, ACL. This module serves as the "brain" and "nerve center" of the entire drive or excitation system, responsible for executing core control algorithms, managing communication networks, processing I/O data, running user applications, and providing system diagnostics. The IS215ACLEH1AB module is installed in the standard Innovation Series drive or EX2100 excitation control chassis, and it exchanges high-speed data with power units, I/O modules, and other subsystems through backplane connectors. Its powerful computing capabilities and rich communication interfaces make complex motor control, process automation, and system integration possible.

Status indication

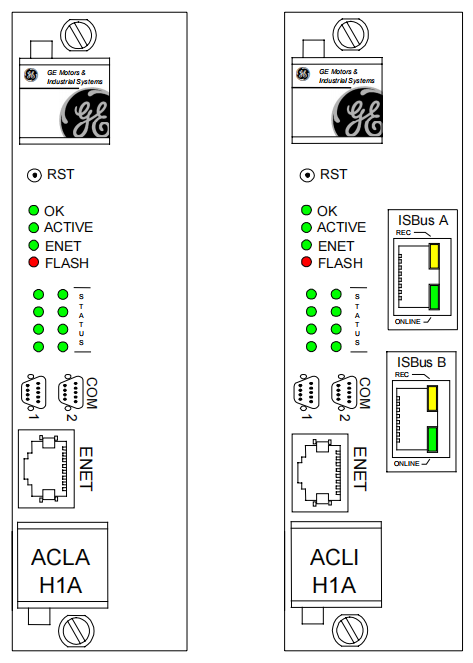

Front panel LED

OK           Lights up when the watchdog timer is functioning properly

ACTIVE    Lights up when the CPU accesses the memory

ENET       Flashes when the Ethernet transmits or receives data

FLASH      Lights up when the flash memory is undergoing a write operation

STATUS    Displays the BIOS startup status or fault code

Comparison of advantages and disadvantages Advantages

Powerful and stable. Designed specifically for industrial harsh environments, with high reliability.

High integration of functions. Integrates control, communication, and diagnosis.

Complete debugging and maintenance tools. The Toolbox software is powerful and greatly facilitates engineering implementation and later maintenance.

Seamless integration with the GE ecosystem. In GE's drive and excitation solutions, it can achieve maximum efficiency.

Good real-time performance. The QNX RTOS ensures the determinacy of control.

Disadvantages

Highly proprietary, bound to the GE Innovation Series and EX2100 platforms, and cannot be used for other brand devices.

Relatively mature technology based on the 486 architecture, although capable of fulfilling its tasks, its computing power is limited compared to modern multi-core processors.

Dependence on dedicated software, must use GE's Toolbox software for configuration and maintenance, and there is a learning curve.

High replacement cost As the core controller, once damaged, the cost of replacement and reconfiguration is high.
